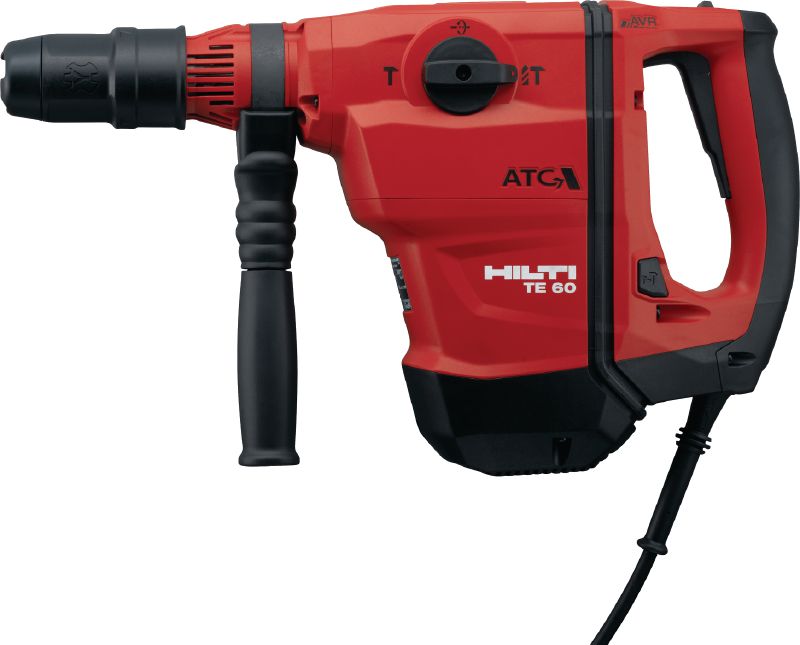

TE 60-ATC-AVR Rotary hammer

Name: TE 60-ATC-AVR Rotary hammer
Brand: Hilti
SKU: r5731031

Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiselling, with Active Vibration Reduction (AVR) and Active Torque Control (ATC)

Weight according to EPTA-Procedure 01/2003 without battery: 7.8 kg
Weight class: 6 kg
Single impact energy: 7.8 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

7.8 kg

Weight class

6 kg

Single impact energy

7.8 J

Hammer drilling diameter range

12 - 100 mm

Optimum hammer drilling range

18 - 40 mm

Hammer drilling RPM

340 rpm

Full hammering frequency

3300 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Depth gauge, Power reduction

Triaxial vibration value for hammer drilling into concrete (ah,HD)

7.2 m/s² ¹

Dust removal system available

TE DRS-Y, TE DRS-D, TE DRS-BK

Triaxial vibration for chiselling in concrete

6.2 m/s² ²

Rated input power

1350 W

Dimensions (LxWxH)

493 x 115 x 293 mm

A-weighted emission sound power level

111 dB (A) ³

A-weighted emission sound pressure level

103 dB (A) ⁴

according to EN 62841-2-6
according to EN 60745-2-6
according to EN 60745
according to EN 60745

Documents

Features & Applications

Features

Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
High versatility for a wide range of drilling and chiselling applications

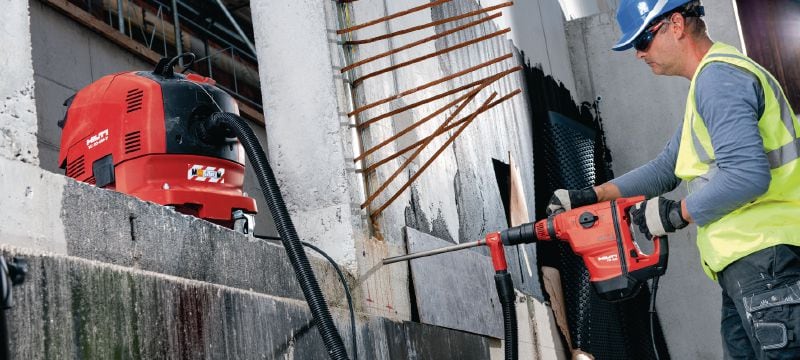

Optional DRS-Y dust removal system collects up to 95% of dust
Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite

Applications

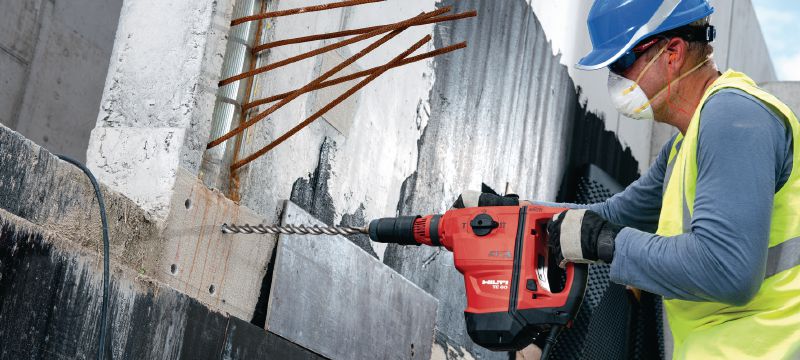

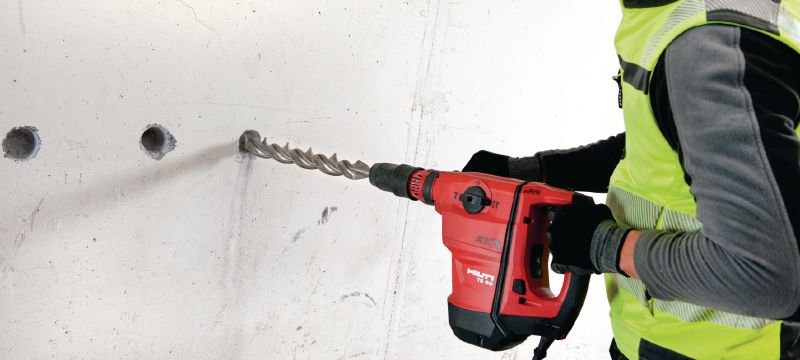

Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)

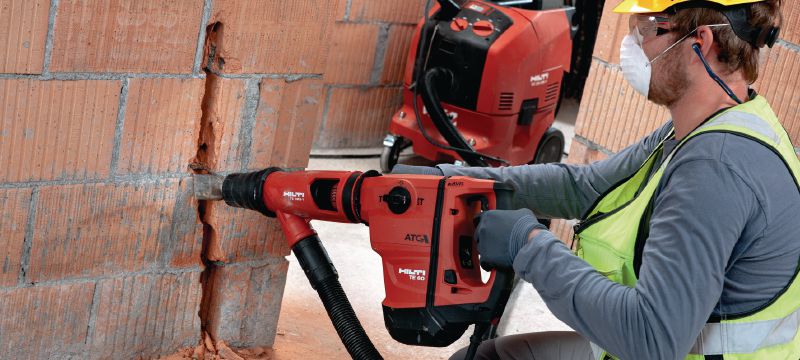

Medium-duty demolition work
Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3-1/8")

For approval or certificate information, please see individual items.

Hilti Tool Service

Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
After the no-cost period, repair costs are capped
Product warranty against parts and manufacturing irregularities for as long as we service the tool
Product warranty against parts and manufacturing irregularities for 20 years
3-month no-cost period after each paid repair

More information about Tool Services

LifeTime Services

No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
After the no-cost period, repair costs are capped for as long as we service the tool
3-month no-repair-cost period again after every paid repair
Materials and workmanship warranty over the entire life of the tool
Pick-up and delivery service

More information about LifeTime Services
