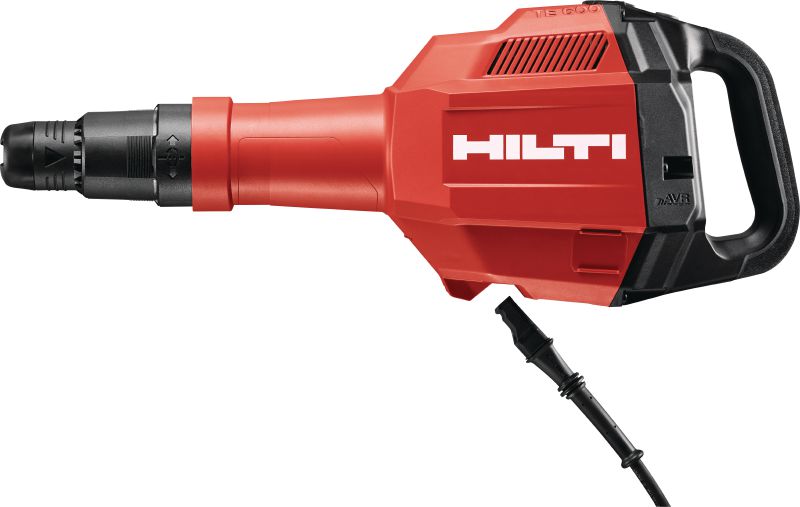

TE 600-AVR SDS-Max demolition hammer

heavy-duty demolition hammer for wall chiseling in concrete and masonry, with less weight, lower vibration and more performance than the TE 700-AVR predecessor

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS-max)
  • Weight according to EPTA-Procedure 01/2003 without battery: 5.9 kg

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS-max)
Weight according to EPTA-Procedure 01/2003 without battery
5.9 kg
Single impact energy
11.9 J
Full hammering frequency
2820 impacts/minute
Max. chiselling performance
1395 cm³/min
Dimensions (LxWxH)
600 x 148 x 228 mm
Triaxial vibration for chiselling in concrete
3.8 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
88 dB (A) 2
  1. according to EN 60745-2-6
  2. according to EN 60745

Documents

Features & Applications

Features

  • Much lighter and more powerful - breaker hammer delivers more power than Hilti's TE 700 while weighing 25% less, bringing more efficiency and productivity to the jobsite
  • Deliver the right amount of force - User Force Control allows users to switch from the more powerful demolition mode to chiseling mode for lighter-duty jobs
  • Built to last - innovative brushless motor technology eliminates the need to change carbon brushes and extends the period between repairs
  • Work more comfortably - Active Vibration Reduction (AVR) increases user comfort and reduces the need for frequent breaks
  • Get the job done faster - instant chisel rotation allows the operator to change the angle of the chisel without rotating the entire tool body

Applications

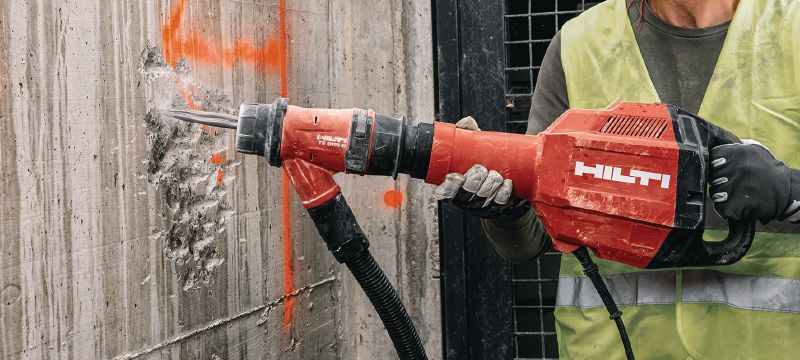

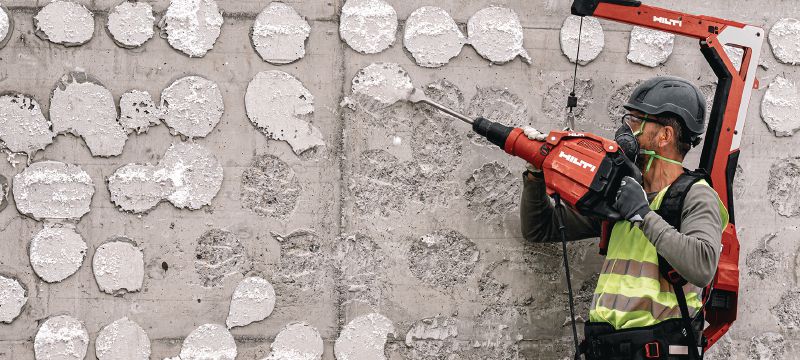

  • Heavy surface demolition of masonry, brick and tile on walls and floors

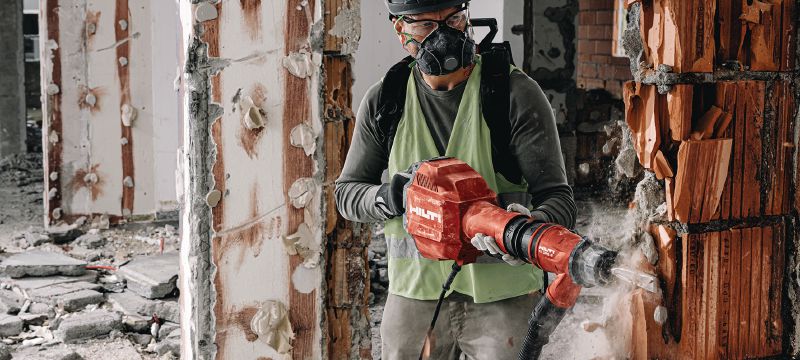

  • Correctional wall breaking on concrete and brick

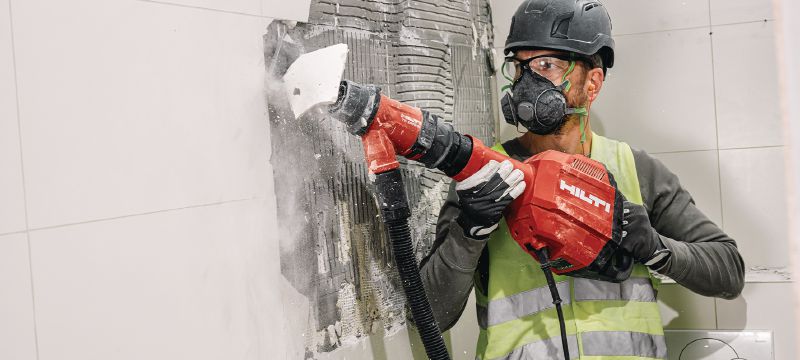

  • Heavy renovation on walls and floors, including bathroom renovation

For approval or certificate information, please see individual items.
