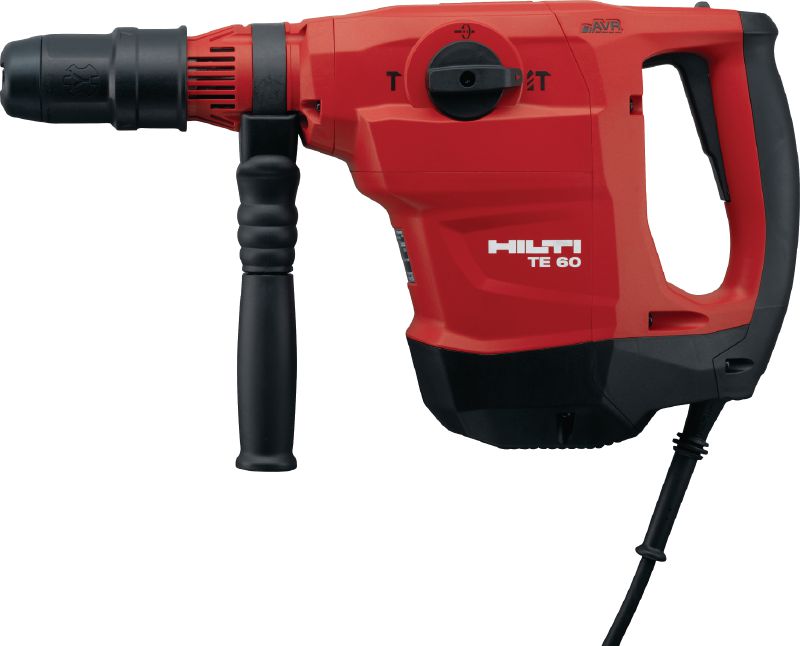

TE 60-AVR Rotary hammer

Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiselling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 6.8 kg
  • Weight class: 6 kg
  • Single impact energy: 7.8 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
6.8 kg
Weight class
6 kg
Single impact energy
7.8 J
Hammer drilling diameter range
12 - 100 mm
Optimum hammer drilling range
18 - 37 mm
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.5 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiselling in concrete
9.1 m/s² 2
Rated input power
1350 W
Dimensions (LxWxH)
486 x 115 x 273 mm
A-weighted emission sound power level
107 dB (A) 3
A-weighted emission sound pressure level
99 dB (A) 4
  1. according to EN 62841-2-6
  2. according to EN 60745-2-6
  3. according to EN 60745
  4. according to EN 60745

Documents

Features & Applications

Features

  • High versatility for a wide range of drilling and chiselling applications
  • Exceptionally high performance-to-weight-ratio
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

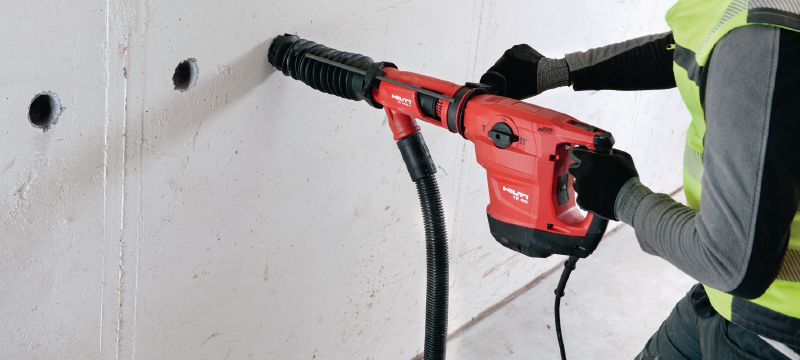

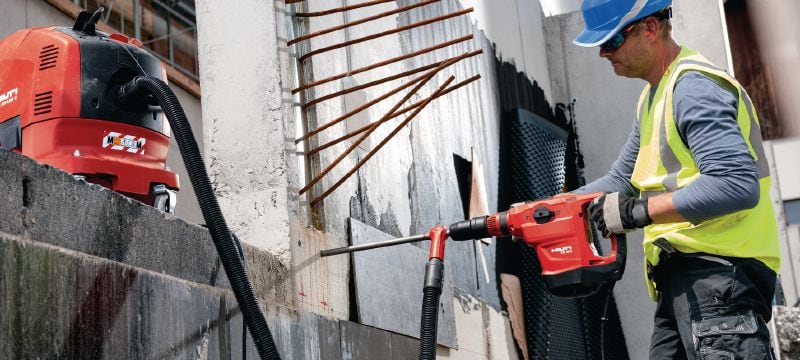

  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

Applications

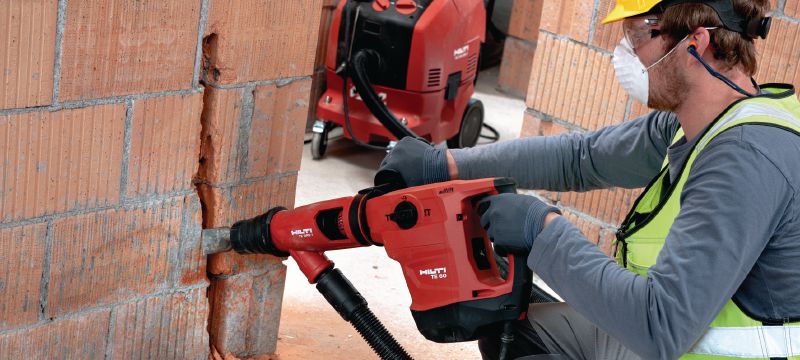

  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)
  • Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
  • Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3 1/8")
  • Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter

For approval or certificate information, please see individual items.
