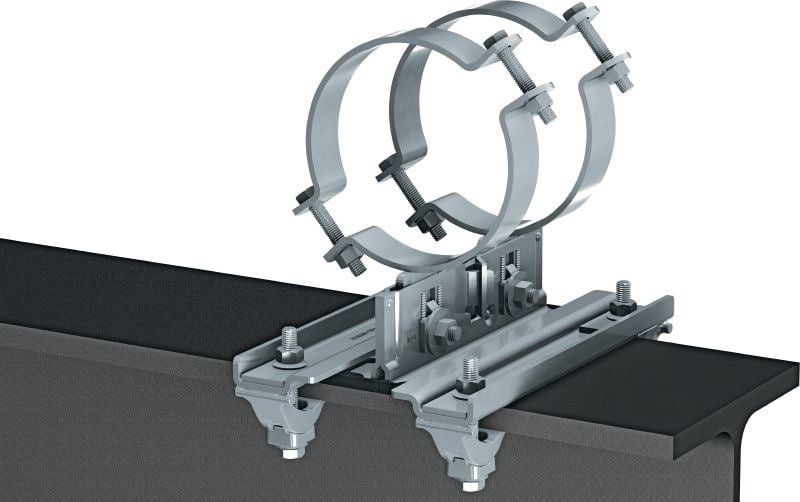

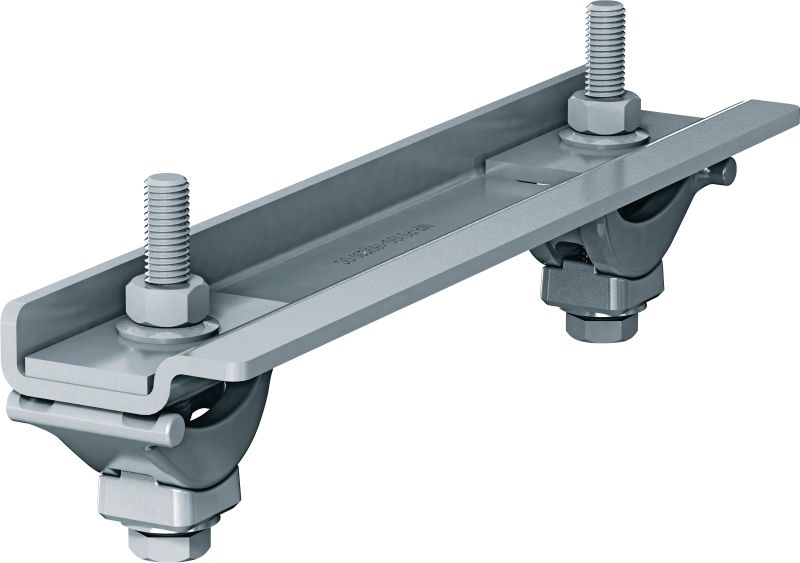

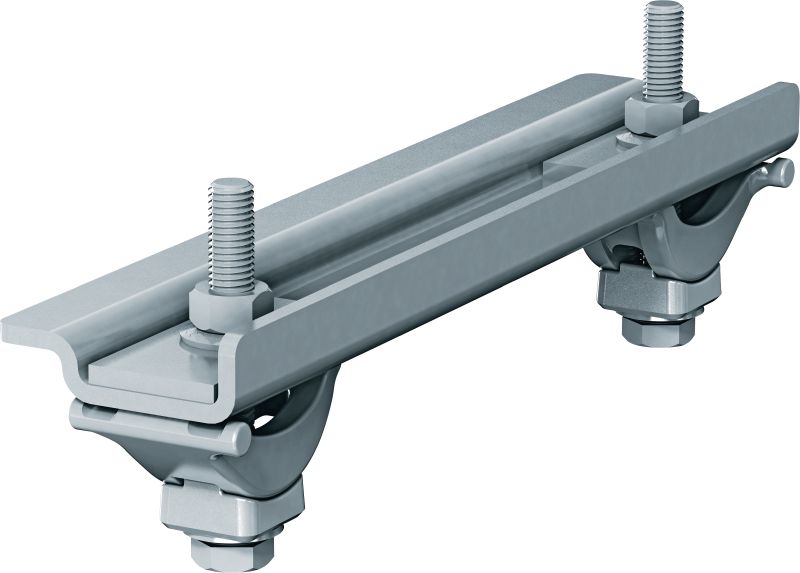

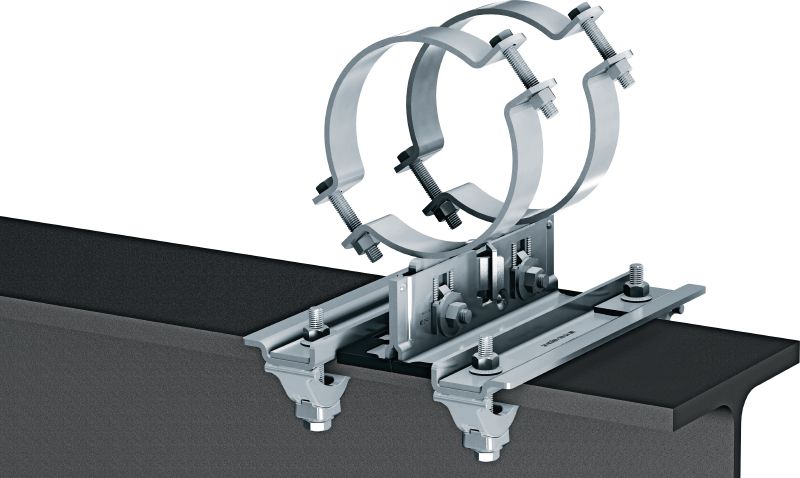

Beam connector MP-PS ISG 80/160 OC #2343972
- Fire resistance (yes/no): No
- Temperature resistance: -20 - 300 °C
- Material composition: Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3
Choose options
Pack size
- 4 pc
Quantity
Packs
Total Piece
4
Discounted net
SR 1,494.50
SR 373.63 / 1 Piece
Technical Data
Fire resistance (yes/no)
No
Temperature resistance
-20 - 300 °C
Material composition
Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3
Material thickness
All sheet metal parts: 5mm
Surface finish
Beam clamps and rectangular washer: DIN EN ISO 1461, baseplate: ZM300, bolts/nuts: ISO 10684, Retaining washers: ISO 10683, Cylindrical washer: Stainless Steel
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Modular Support
Clamping screw
M12x95
Tightening torque
84 Nm
Wrench size
19 mm
Cross section width - b
72.4 mm
Height - H
103 mm
Width - B
72 mm
Length
260 mm
Weight
1.92 kg
Steel beam thickness
3 - 36 mm
Steel beam thickness min.
3 mm
Steel beam thickness min. (conversion inch fractional)
1/8 in
Steel beam thickness max.
36 mm
Steel beam thickness max. (conversion inch fractional)
1-7/16 in
Steel beam width min
80 mm
Steel beam width max
160 mm
Steel beam width
80 - 160 mm
