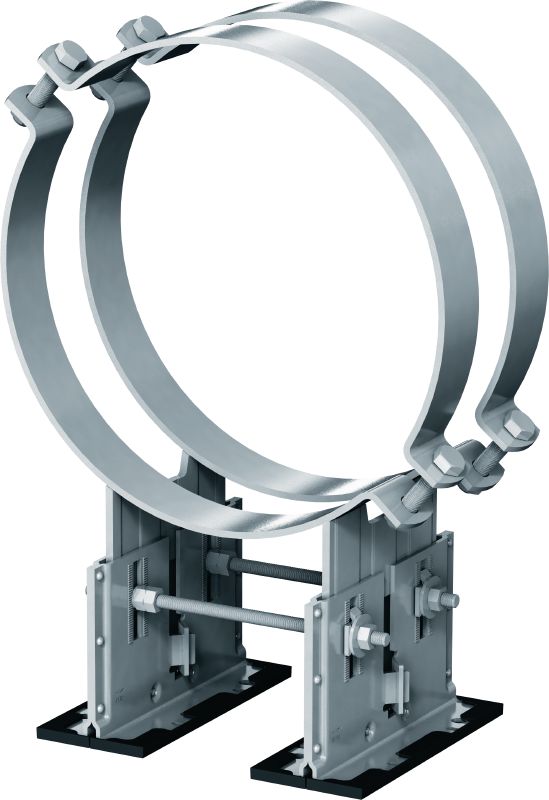

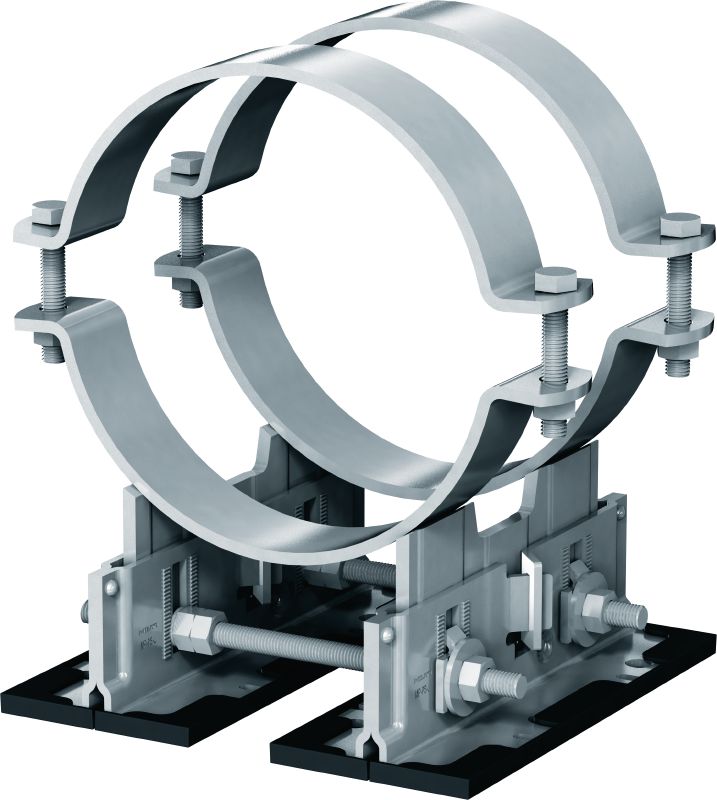

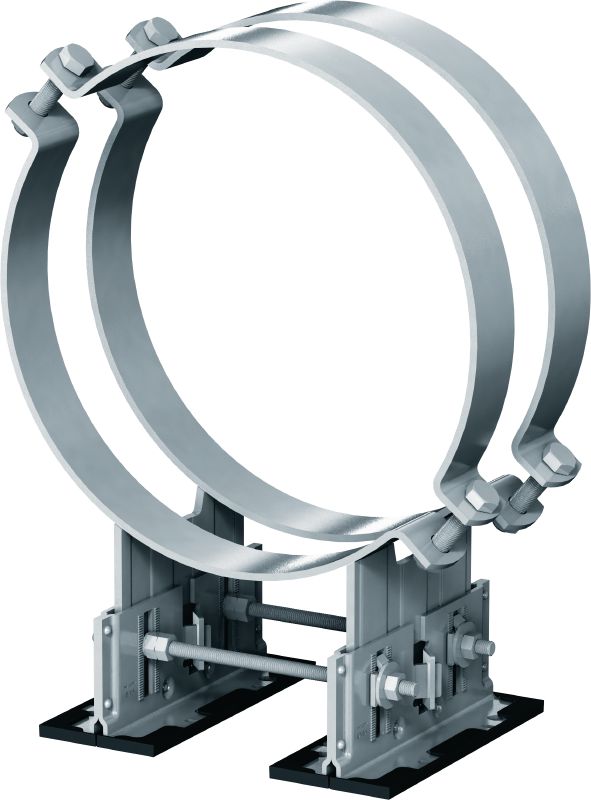

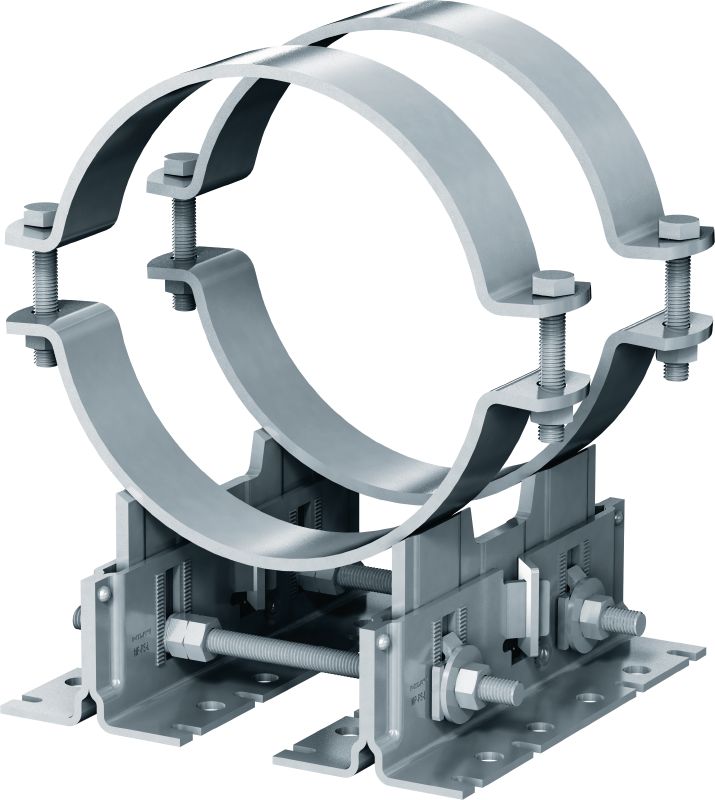

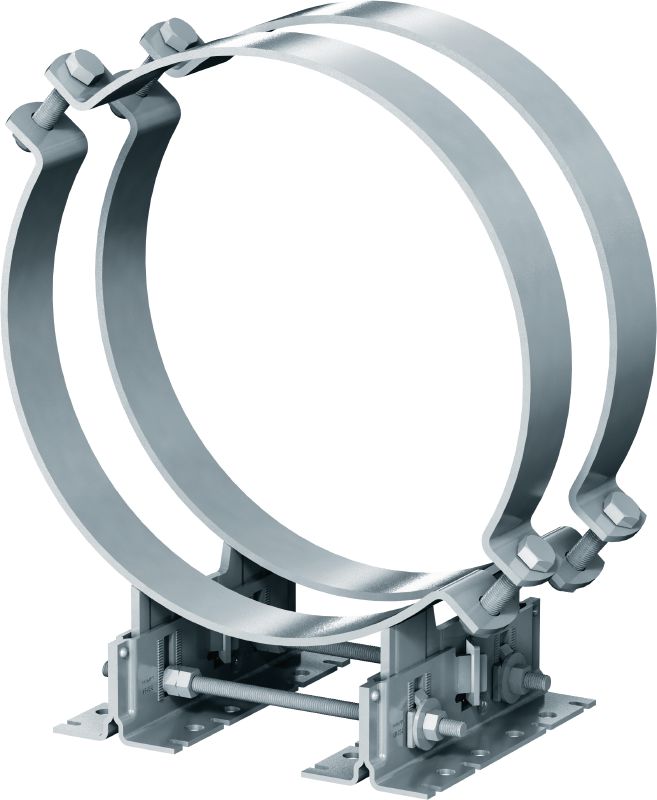

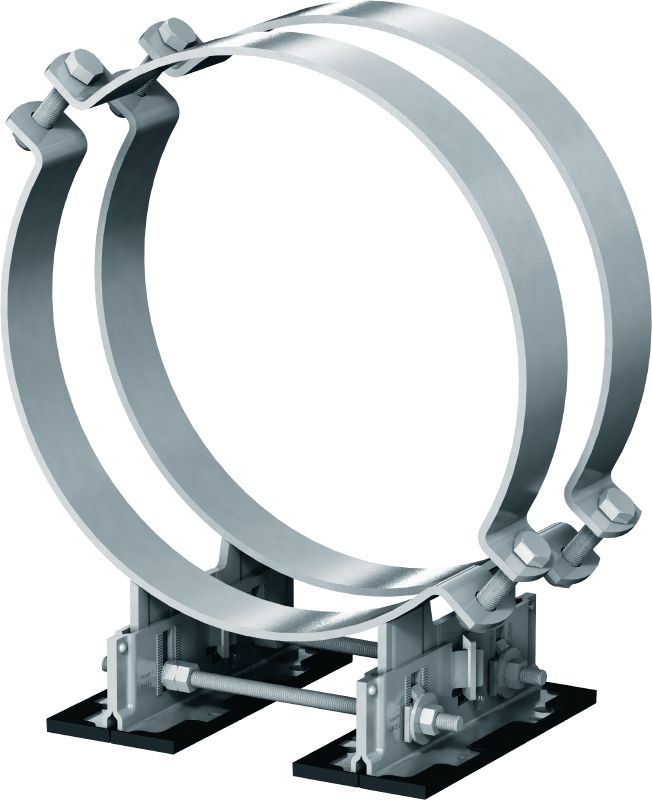

MP-PS 4-2 pipe shoe
Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 217-610 mm (8" to 24")
- Fire resistance (yes/no): No
- Temperature resistance: -20 - 300 °C
- Material composition: Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Choose options
Clamping range - D
- 217 - 227 mm
- 244 - 254 mm
- 267 - 277 mm
- 318 - 328 mm
- 350 - 360 mm
- 401 - 411 mm
- 452 - 462 mm
- 503 - 513 mm
- 605 - 615 mm
Height above ground to base of pipe
- 88.5 - 116 mm
- 171 - 223.5 mm
Nominal pipe size (imperial)
- 8 in
- 10 in
- 12 in
- 14 in
- 16 in
- 18 in
- 20 in
- 24 in
Nominal pipe size
- 200 mm
- 250 mm
- 300 mm
- 350 mm
- 400 mm
- 450 mm
- 500 mm
- 600 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From SR 1,369.00
