MT-FPS-G Pipe shoe guide

Connector pipe shoe MT-FPS-GF OC #2330921

LCG003629_v2 (229411)

L142678 (229439)

L142675 (229438)

L142673 (229437)

IS_MT-FPS-GF OC_0001 (229474)

LCG003629_v2 (229411)

L142678 (229439)

L142675 (229438)

L142673 (229437)

IS_MT-FPS-GF OC_0001 (229474)

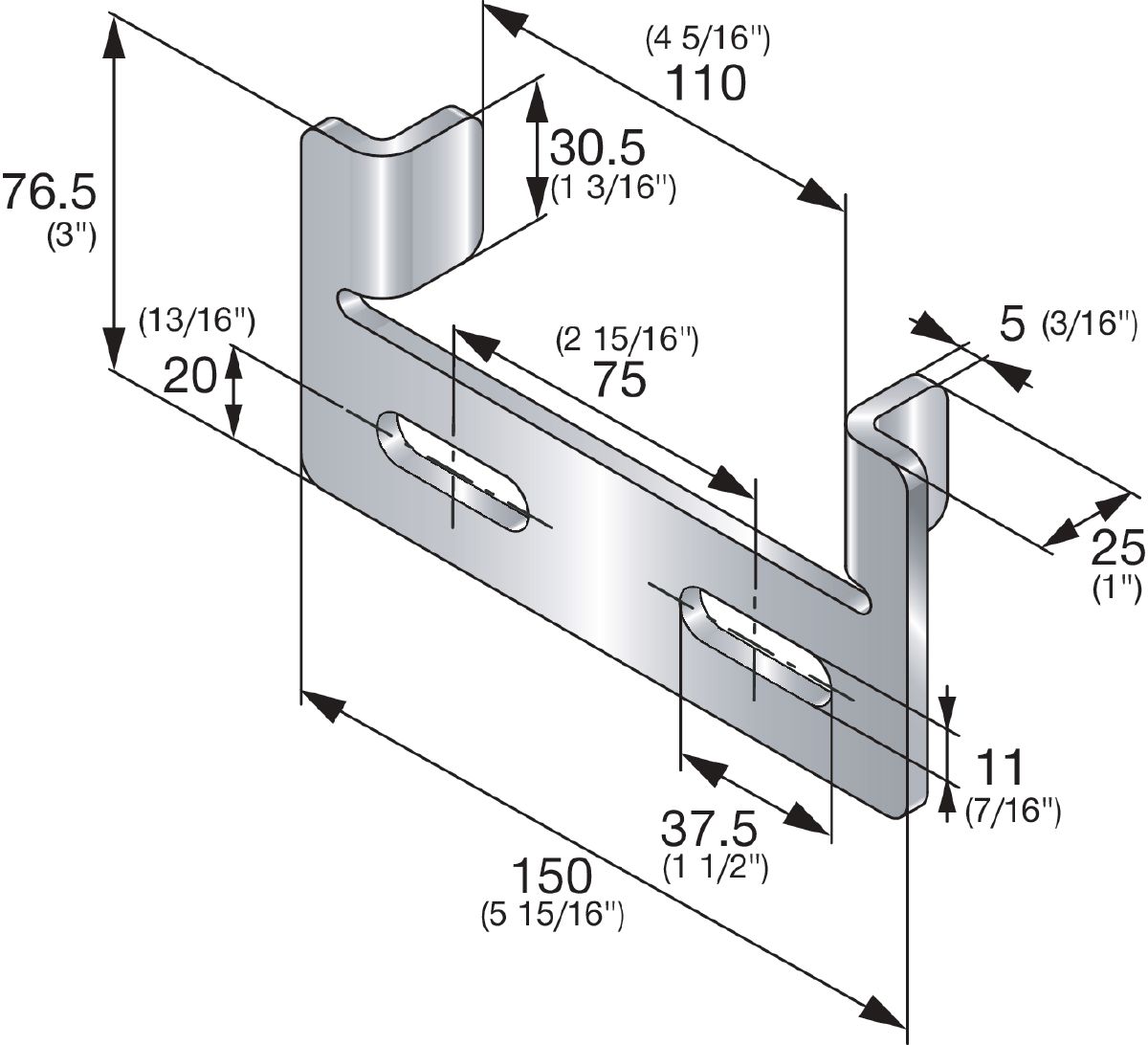

Adjustable guiding bracket for fastening MP-PS pipe shoes to Hilti MT modular girders

Material composition: S280GD+ZM300
Surface finish: Outdoor Coated - ZM
Material thickness: 5 mm

Choose options

Pack size

8 pc

Product options

Quantity

Packs

Total Piece

8

You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

4 Packs (Total pieces 32)

Discounted net

SR 957.44

SR 29.92 / 1 Piece

Technical Data

IS_MT-FPS-GF OC_0001 (229474)

Material composition

S280GD+ZM300

Surface finish

Outdoor Coated - ZM

Material thickness

5 mm

Weight

0.3 kg

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

Easier to install – slotted anchor holes to simplify pipe shoe positioning and fastening
Adaptable – suitable for any size of Hilti MP pipe shoe in stand-up configuration
Safer jobsites – avoid welding and drilling
One-step installation – quicker and easier fastening by using Hilti MT thread-forming bolts

Applications

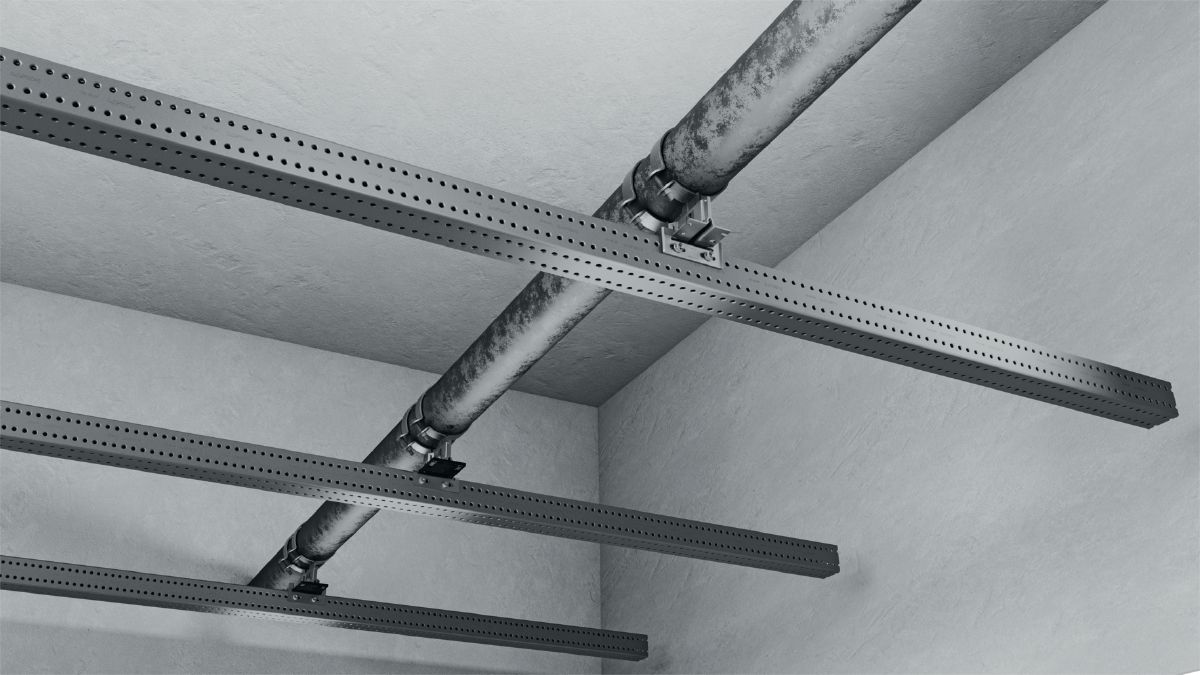

Fastening MP-PS pipe shoes to MT girders restricting the movement to axial sliding and vertical lifting
Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)
