MP-A I-R Pipe shoe inlay (EPDM)

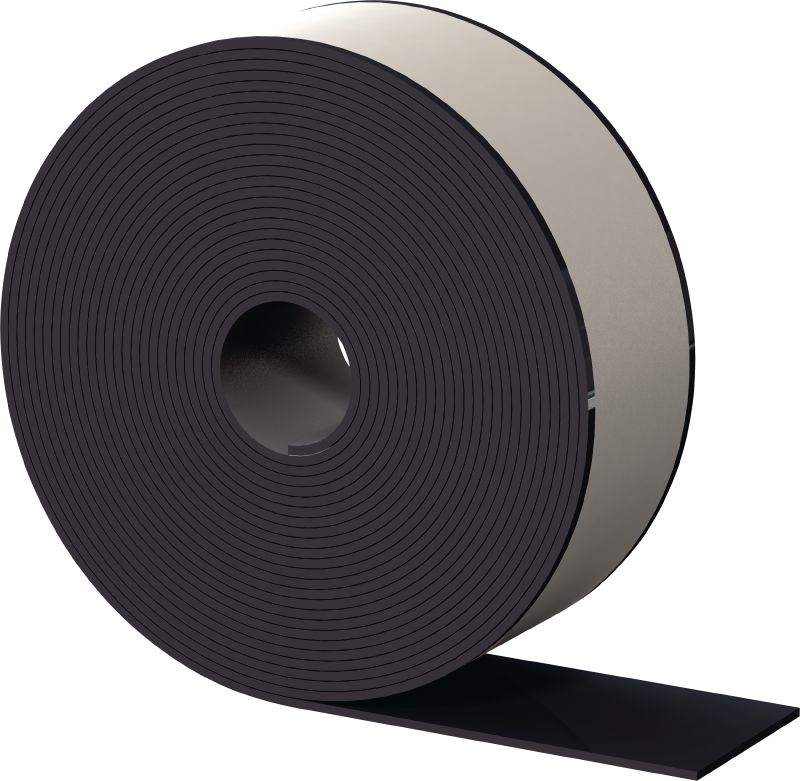

Insulating band MP-A I-R 60/2/26 #2331063

EPDM insulating band for adding galvanic separation and mild acoustic isolation to MP-PS pipe shoes

  • Fire resistance (yes/no): No
  • Temperature resistance: -20 - 100 °C
  • Material composition: EPDM, Self-adhesive layer, Release liner

Choose options

Pack size
  • 1 pc
Product options
Quantity
Packs
Total Piece
1
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

2 Packs (Total pieces 2)

Discounted net

SR 4,043.00

SR 2,021.50 / 1 Piece

Technical Data

05_IS_MP-A-I_0001 (2299270)
Fire resistance (yes/no)
No
Temperature resistance
-20 - 100 °C
Material composition
EPDM, Self-adhesive layer, Release liner
Surface finish
n/a
Hot-dip galvanized
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
n/a
Cross section width - b
60 mm
Cross section thickness - s
2 mm
Cross section width and thickness (b x s)
60 x 2 mm
Length
26000 mm
Weight
4.11 kg

Documents

Features & Applications

Features

  • Galvanic separation – prevents direct contact between pipe clamp and pipe (helping to avoid acoustic bridging)
  • Adaptable – suitable for all MP-PS pipe shoes due to the clamping range of the pipe clamps (no specific clamp diameter required)

Applications

  • Creating temperature separation between pipes and pipe clamps to reduce temperature transfer to sub-structure
  • Creating surface separation between pipes and pipe clamps to prevent direct contact between different materials
