MP-US OC Pipe strap

Pipe strap MP-US 169 6" OC #2288376

MP-US-01 (210860)
LCG003771_v1_s (2531045)
MP-US-application-05_cropped (210858)
MP-US-01 (210860)
LCG003771_v1_s (2531045)
MP-US-application-05_cropped (210858)

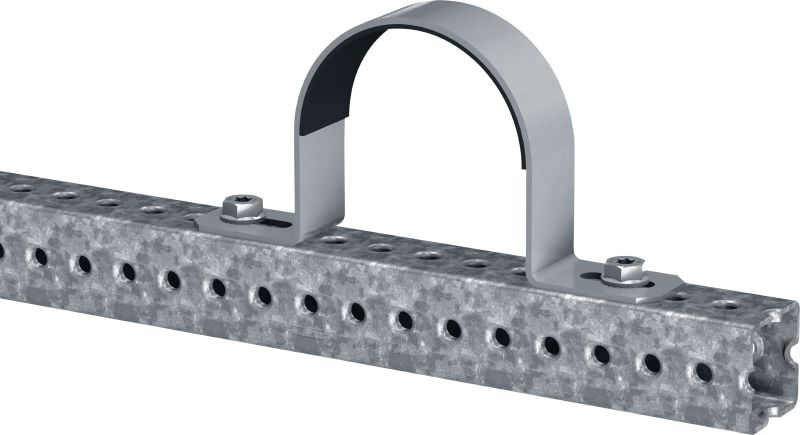

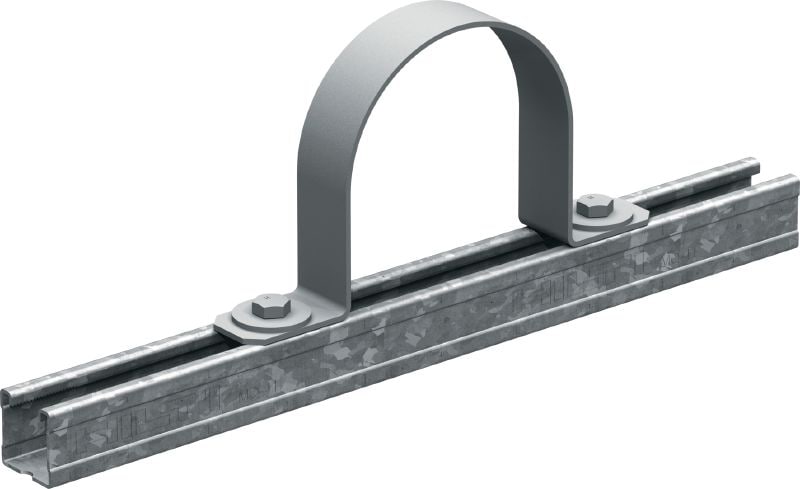

Outdoor coated (OC) pipe strap for universal piping applications

  • Diameter - D: 171.9 mm
  • Nominal pipe size (imperial): 6 in
  • Approvals: UL approved EX15279
premium

Choose options

Diameter - D
  • 171.9 mm
Nominal pipe size (imperial)
  • 6 in
Nominal pipe size
  • 150 mm
Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Piece
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 106.25

SR 53.13 / 1 Piece

Technical Data

Diameter - D
171.9 mm
Nominal pipe size (imperial)
6 in
Approvals
UL approved EX15279
Height - H
166 mm
Material composition
DX51D-ZM300 - EN 10346:2015
Surface finish
Outdoor Coated - ZM
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Cross section thickness - s
3 mm
Cross section width - b
40 mm
Width - B
308 mm
Distance between holes - A
253 mm
Product class
Premium

Documents

Features & Applications

Features

  • Suitable for suspended or standing installation applications
  • Designed for use with open channel profiles, closed girders and bracket arms
  • Approved for sprinkler applications under VdS
  • Approved for sprinkler applications under UL / NFPA

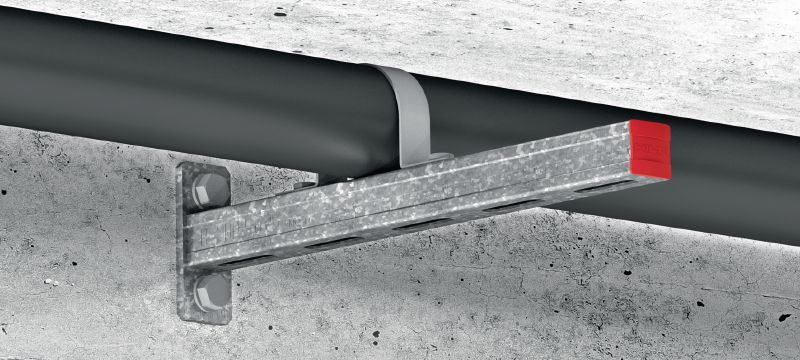

Applications

  • Universal pipe fixation up to 12"
  • single-point fastening for sprinkler applications
  • Installation of non-insulated pipes in industrial environment
