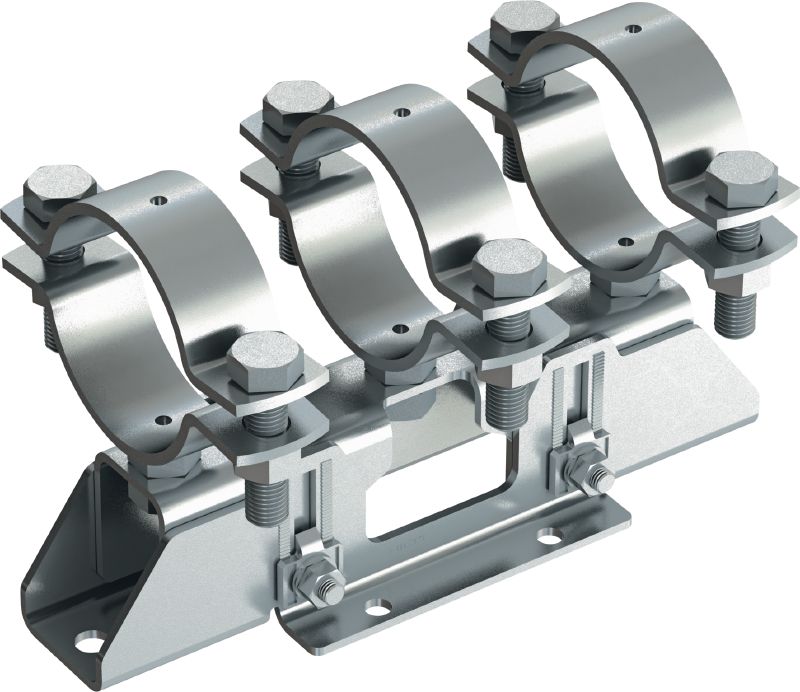

Galvanised compact fixed point for heavy-duty applications up to 22 kN

Material composition: Steel
Surface finish: Indoor Coated - Electro galvanised
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Technical Data

IS_MFP-CH_0001 (199448)

Material composition

Steel

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Base material type

Concrete, Steel

Documents

Features & Applications

Features

Pipes can be installed closer to base material
Easier height adjustment
Suitable for installation on tilted pipes
Easier to assemble and instal

Applications

To be used in combination with MFP-PC fixed points pipe clamps
Can be used as refrigeration fixed point by using MFP-KF refrigeration pipe clamps
Given load values apply only when using Hilti HST and HUS anchors
To be used in applications with limited space for installing

For approval or certificate information, please see individual items.
