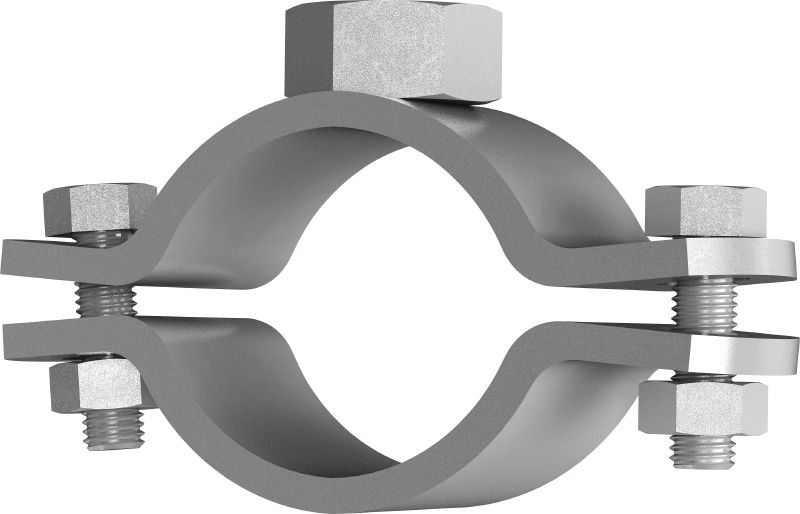

MFP-PC fixed point pipe clamp

Pipe clamp MFP-PC 267-275 M20 #2227712

Galvanised fixed point pipe clamp for maximum performance in heavy-duty applications

  • Clamping range - D: 267 - 275 mm
  • Thread connection - M: M20
  • Material composition: Steel
premium

Choose options

Clamping range - D
  • 267 - 275 mm
Thread connection - M
  • M20
Pack size
  • 2 pc
Product options
Quantity
Packs
Total Piece
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 615.40

SR 307.70 / 1 Piece

Technical Data

IS_PR_0012_X12.eps
Clamping range - D
267 - 275 mm
Thread connection - M
M20
Material composition
Steel
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
M20
Tightening torque
80 Nm
Cross section thickness - s
6 mm
Cross section width - b
50 mm
Width - B
376 mm
Distance between holes - A
336 mm
Product class
Premium
Distance centre pipe to top - h
160 mm

Documents

Features & Applications

Features

  • Facilitates quicker and easier installation together with MFP fixed point sets
  • Tested and verified loads with comprehensive technical data
  • Versatile – can be installed on the connection boss or directly on the pipe clamp ears

Applications

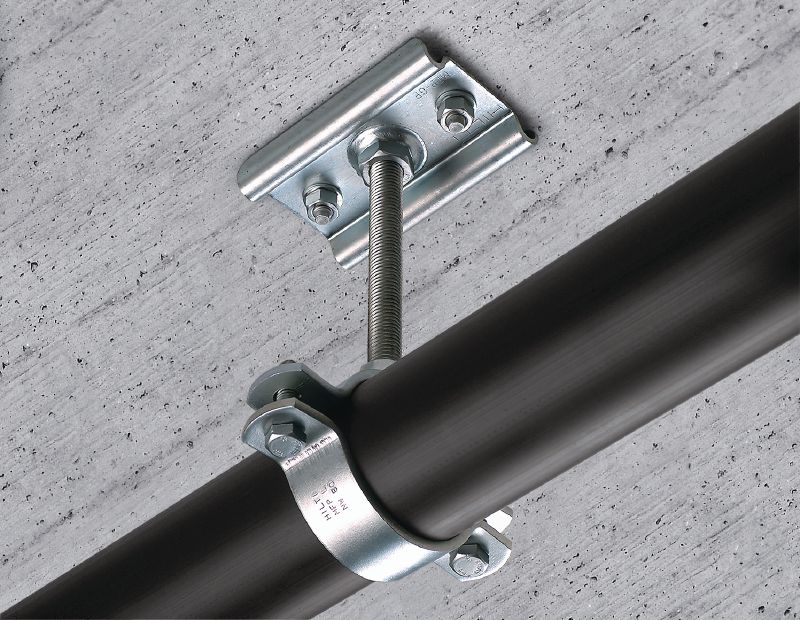

  • Installing fixed points in combination with the different MFP fixed point sets
  • Installing pipes exposed to temperature changes
  • For use with pipe diameters from 21-326 mm
