HUS3-H Screw anchor

L068903.tif
L069388.tiff
L069420.tiff
L069284.tiff
L069438.tiff
L069358.tiff

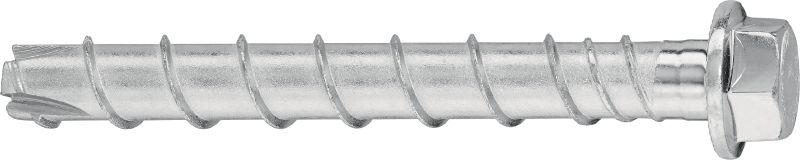

Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, hex head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for screw anchors, reusable anchors, adjustable anchor, hand rail anchor or anchoring.

Choose options

Quantity
Total Pieces
NaN
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Yes
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)
Tested/approved for diamond drilling
No

Documents

pdf Technical data sheet for HUS3 screw anchor steel to concrete and steel to masonry, English [ 1.8 MB ]
pdf TR 066 White paper W4595 (EN), English [ 2.3 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Hexagonal head with integrated washer for neat appearance when fastening through in-place parts
  • Ideal for overhead installation – greatly simplifies the work
  • Three embedment depths for maximum design flexibility
  • abZ (DiBt) approval for reusability in fresh concrete for temporary applications – fully-approved reusable system with gauges for all available diameters (8,10, 14 mm)

Applications

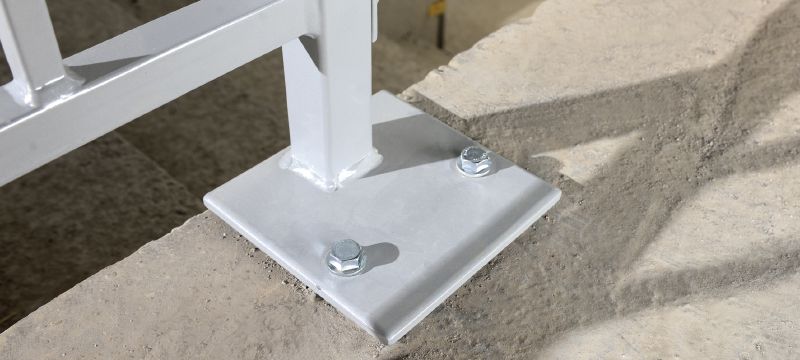

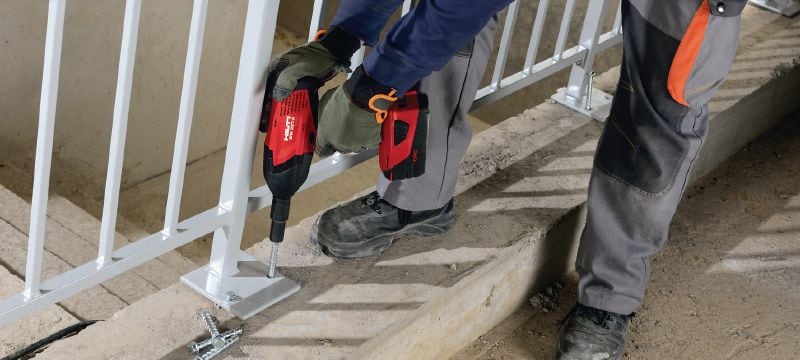

  • Railings and handrails

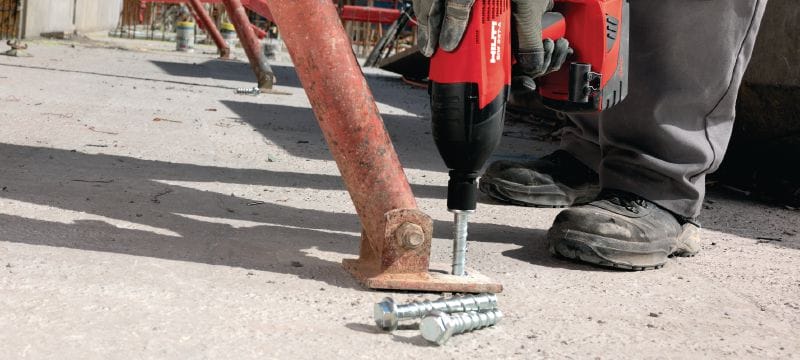

  • Formwork and bracing
  • Temporary applications

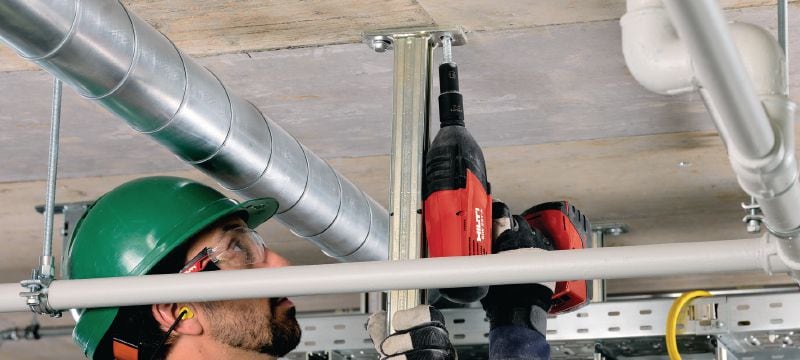

  • Fastening channels and brackets
  • Installing storage and rack systems

For approval or certificate information, please see individual items.
