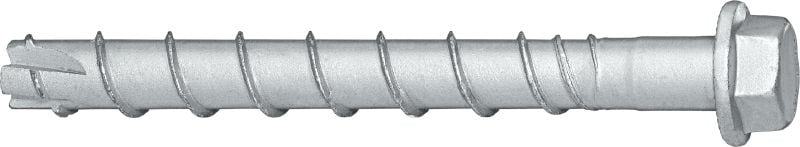

HUS3-HF Screw anchor

Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (multilayer corrosion protection, hex head)

  • Material, corrosion: Carbon steel, multilayer coating
  • Head configuration: Hex head
  • Approvals / test reports: DIBt, ETA, Fire, Seismic

Customers also searched for screw anchorsreusable anchorsadjustable anchorhand rail anchor or anchoring.

Choose options

Anchor size
  • 8 mm
Anchor length
  • 85 mm
  • 100 mm
Pack size
  • 50 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, multilayer coating
Head configuration
Hex head
Approvals / test reports
DIBt, ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Yes
Cleaning procedures
Automatic cleaning (SafeSet hollow drill bit), Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, multilayer coating
Tested/approved for diamond drilling
No

Documents

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Hexagonal head with integrated washer for neat appearance when fastening through in-place parts
  • Can be reliably set without need for a torque wrench – HSE product profile available
  • Multilayer coating (≥14 µm) for additional corrosion resistance
  • Three embedment depths for maximum design flexibility

Applications

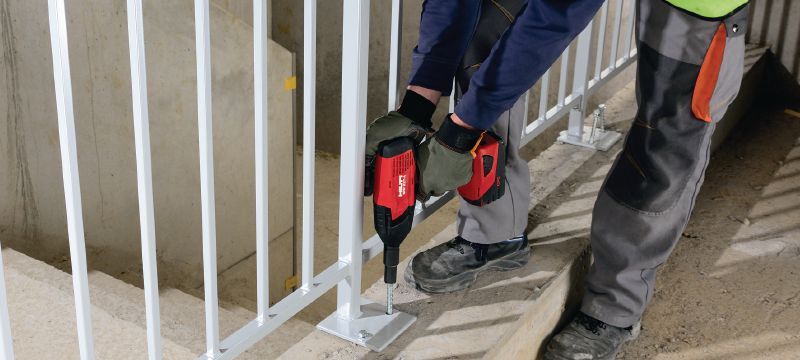

  • Railings and handrails
  • Fastening channels and brackets
  • Base plate fastening in steel and metal construction
  • Structural steel applications

For approval or certificate information, please see individual items.
