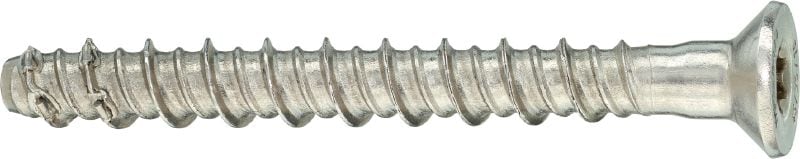

HUS4-CR screw anchor

High-performing countersunk head screw anchor for fastening to concrete (stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Countersunk
  • Approvals / test reports: ETA, Fire

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Countersunk
Approvals / test reports
ETA, Fire
Base materials
Concrete (aerated), Concrete (cracked), Concrete (non-cracked), Masonry (solid)
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor, Outdoor, low to moderate pollution (C3), Outdoor with heavy industrial pollution
Material composition
Stainless steel, A4

Documents

Features & Applications

Features

  • Removable and high corrosion resistance – ideal for outdoor applications
  • Simpler to instal – less drilling, no cleaning, no high-accuracy torque wrench and no hammering required
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

  • Fastening non-structural baseplates – such as handrails, staircases and balustrades
  • Suitable for use in uncracked and cracked concrete
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1) and fire
  • Suitable for dry indoor and outdoor use, including high corrosion environments

For approval or certificate information, please see individual items.
