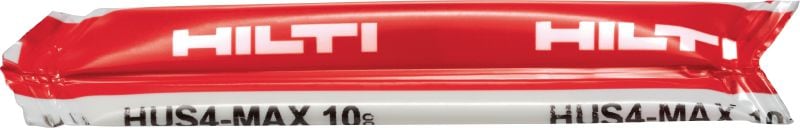

HUS4-MAX Hybrid Screw Anchor Capsule

Configurator
Technical Data
Documents
Features & Applications
Related Products
L144899 (1918732)
L143001_cropped (228947)

Ultimate-performance foil capsule for fast and economical heavy-duty anchoring in concrete using HUS4 screw anchors

  • Environmental conditions: Outdoor
  • Approvals / test reports: ETA, Fire, Seismic
  • Seismic loading: Yes

Choose options

Anchor size
  • 10 mm
  • 12 mm
  • 14 mm
  • 16 mm
Pack size
  • 32 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From SR 286.72

Technical Data

Environmental conditions
Outdoor
Approvals / test reports
ETA, Fire, Seismic
Seismic loading
Yes
Base materials
Concrete (non-cracked)
Base material condition
Dry
Installation direction
All
Drilling method
Rotary
Tested/approved for diamond drilling
No
SAFEset
Yes
Cleaning procedures
Manual cleaning
Installation tools
TE 6-22 Cordless rotary hammer
Removable
Yes
In-service temperature – range
-40 - 120 °C
Storage and transportation temperature range
5 - 25 °C
PROFIS software
Yes

Documents

Technical information
Certificate
Approval document
Brochure
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf Technical _datasheet_HUS4-MAX, English [ 1.6 MB ]
pdf Whitepaper HUS 4 MAX W4605, English [ 1 MB ]

Features & Applications

Features

  • Up to 4x faster than conventional injectable mortars – two-step installation with no cleaning, shallower embedment, smaller diameters and immediate loading help you save time on every single fastening
  • Easier and faster to install compared to traditional chemical anchors – HUS4-MAX achieves the tension resistance of traditional chemical anchors, without cleaning requirements
  • Extensive applications covered combined with HUS4 screws – ETA (EAD 332795) with seismic C1 and C2 (with carbon steel HUS4 screws) and cracked and uncracked concrete and fire resistance for all steel types
  • Screw anchor can be adjusted or removed even if the capsule was used

Applications

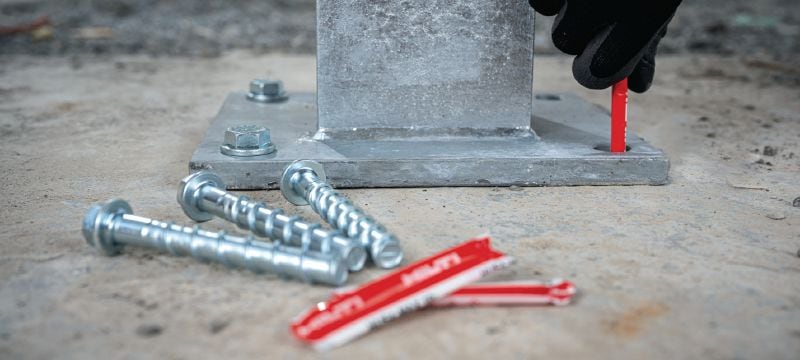

  • Structural baseplates to concrete using HUS4 screw anchors (size 10-16)
  • Safety relevant and designed secondary steel, platforms, staircases, balconies and industrial equipment to concrete using HUS4 screw anchors

For approval or certificate information, please see individual items.
