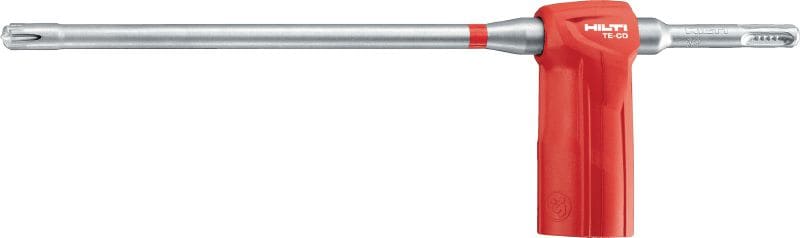

TE-CD (SDS Plus) Metric hollow drill bit

Hammer drill bit TE-CD 12/33 #2018940

Hilti HIT-HY 200 adhesive anchor installation instructions

Ultimate SDS Plus (TE-C) hollow drill bit for virtually dust-free hammer drilling in concrete

Connection end: TE-C (SDS-plus)
Base material: Reinforced concrete, Concrete
Working mode: Hammer drilling

ultimate

Customers also searched for drilling, drill bit, drilling holes, demolition or tools & equipment.

Choose options

Diameter

12 mm

Working length

200 mm

Length

330 mm

Pack size

1 pc

Product options

Quantity

Packs

Total Piece

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 227.76

SR 227.76 / 1 Piece

Technical Data

Connection end

TE-C (SDS-plus)

Base material

Reinforced concrete, Concrete

Working mode

Hammer drilling

Head shape

Multi cutter

Head material composition

Tungsten carbide

Need vacuum cleaner

Yes

Diameter

12 mm

Length

330 mm

Working length

200 mm

Product class

Ultimate

Documents

Features & Applications

Features

Drilling and hole cleaning in one step
Optimum hole cleaning for consistent anchor setting
Robustness, lifetime and drilling speed equal to TE-YX drill bits
Minimises snagging or sticking when drilling into rebar

Applications

Drilling holes for anchoring structural steel connections (e.g. steel columns, beams)
Drilling holes for structural connections with post-installed rebar
Drilling holes for anchoring secondary steel structures (e.g. staircases, steel ledgers)
Drilling holes for structural renovation or upgrading with post-installed rebar
Drilling holes for substitution of misplaced or missing rebars
