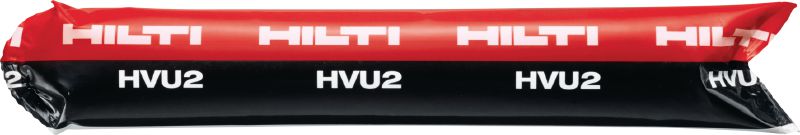

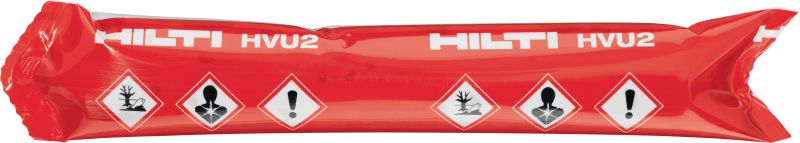

HVU2 Anchor capsule

Ultimate-performance foil adhesive capsule for heavy-duty anchoring in concrete

Customers also searched for capsule or glass capsule.

Technical Data

Approvals / test reports

ETA, Fire, Seismic

Base material condition

Dry, Wet

PROFIS software

Yes

Material composition

Hybrid urethane methacrylate adhesive

Tested/approved for diamond drilling

Yes

In-service temperature – range

-40 - 120 °C

Storage and transportation temperature range

5 - 25 °C

Seismic loading

Yes

Cleaning procedures

Automatic cleaning (SafeSet hollow drill bit), Compressed-air cleaning, Manual cleaning

Tough and resilient soft foil capsule – no more risk of breakage, like with glass capsules
Suitable for use under tough jobsite conditions including water-saturated holes and at low temperatures, even in diamond-cored holes
High performance in seismic and static conditions in cracked and uncracked concrete

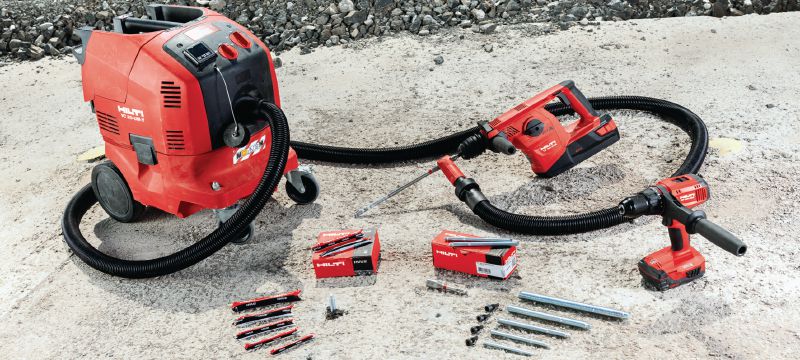

Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
Fast and convenient installation and no need to purchase a special setting tool

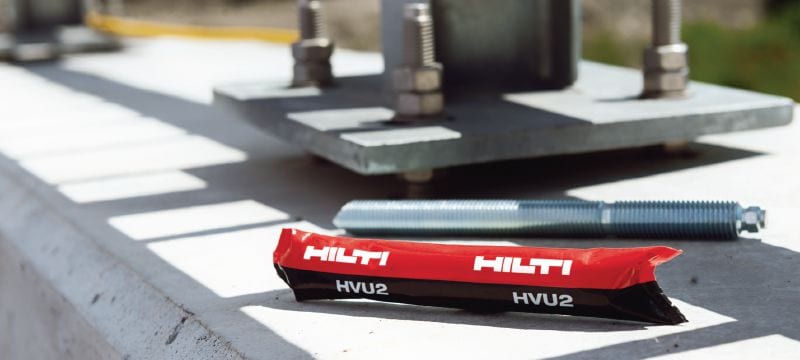

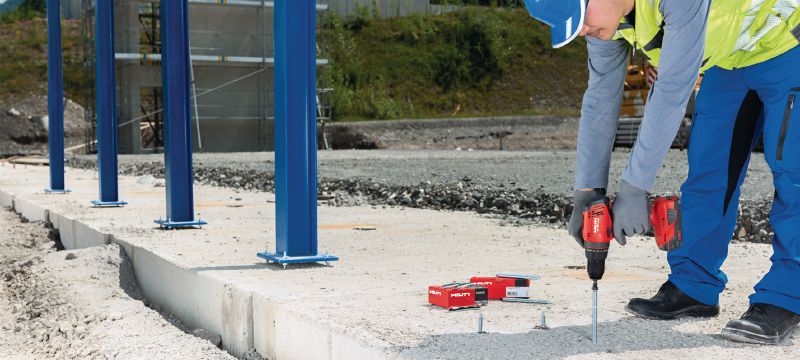

Anchoring steel structures (e.g. racking, guard rails, fences and gates)
Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)
Anchoring curtain wall facades

For approval or certificate information, please see individual items.
