Nuron

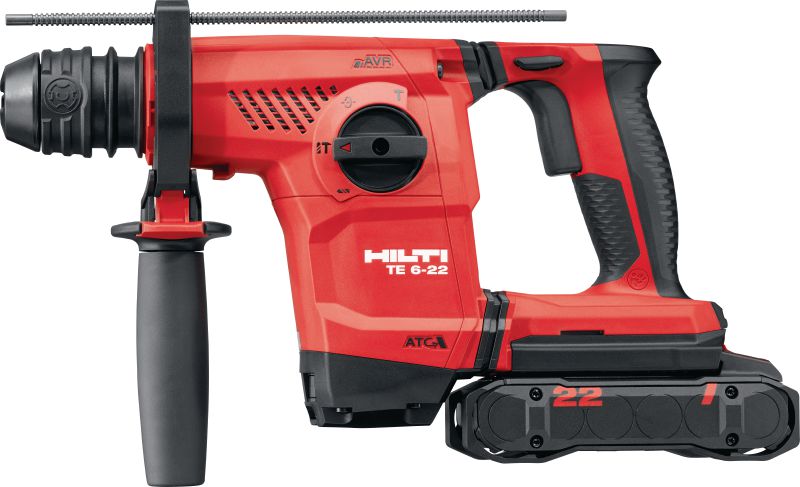

TE 6-22 Cordless rotary hammer

Versatile SDS Plus cordless rotary hammer with wide drilling range, chipping function and quick-change chuck (Nuron battery platform)

  • Weight according to EPTA-Procedure 01/2003 without battery: 2.84 kg
  • Optimum hammer drilling range: 6 - 18 mm
  • Single impact energy: 2.6 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
2.84 kg
Optimum hammer drilling range
6 - 18 mm
Single impact energy
2.6 J
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Chipping, Depth gauge, Removable chuck, Reverse mode, Torque clutch
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.7 m/s² 1
Triaxial vibration for chiselling in concrete
5.5 m/s² 2
A-weighted emission sound power level
102 dB (A) 3
A-weighted emission sound pressure level
94 dB (A) 4
Dust removal system available
TE DRS-4/6, TE DRS-C, TE DRS-D
  1. according to EN 62841-2-6
  2. according to EN 60745-2-6
  3. according to EN 60745
  4. according to EN 60745

Documents

Features & Applications

Features

  • Performance, versatility and ergonomics in one – the TE 6-22 cordless rotary hammer has a wide drilling range, chiselling function and more comfort for all-day use
  • Helps reduce fatigue – now even lighter, helping you power through larger concrete drilling jobs
  • Improved handling – better tool balance and contoured grips so you can drill, chip or drive more comfortably in any position
  • Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit sticks
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Applications

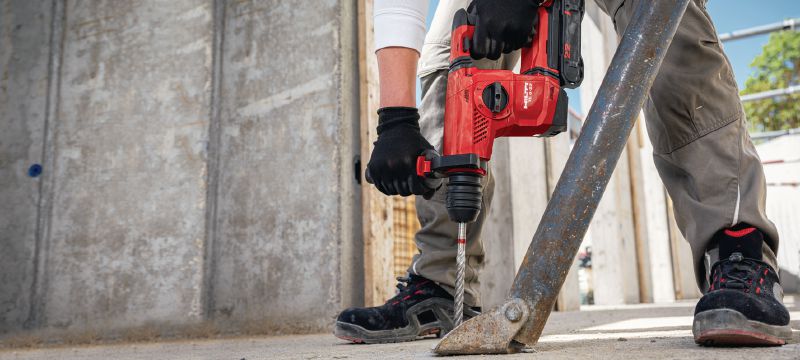

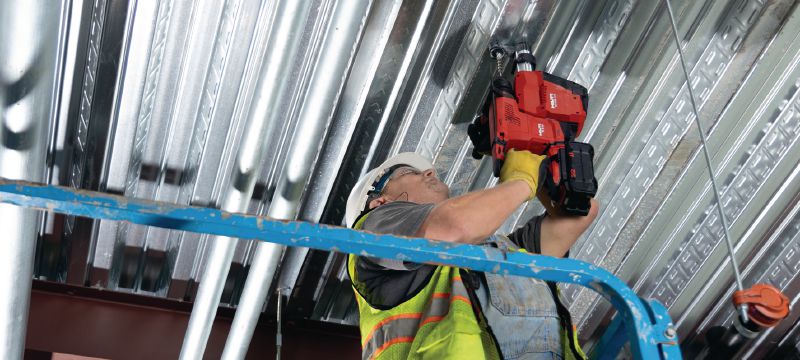

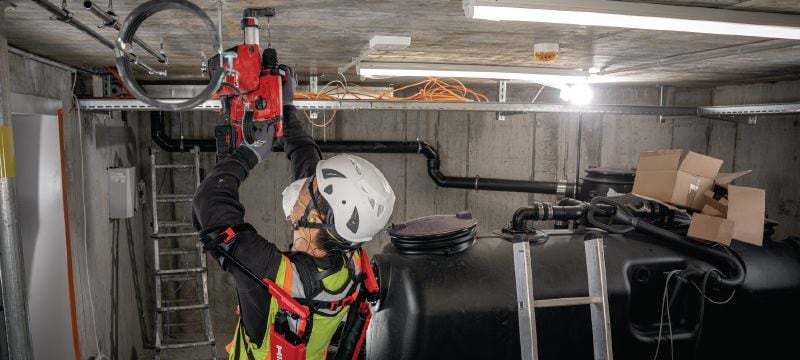

  • Drilling and hammer drilling in concrete and masonry

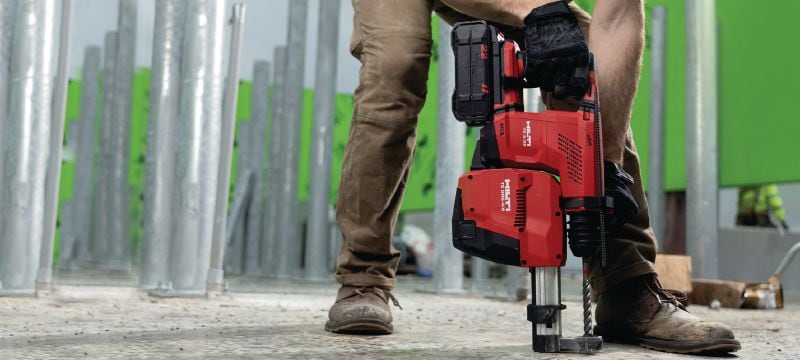

  • Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)

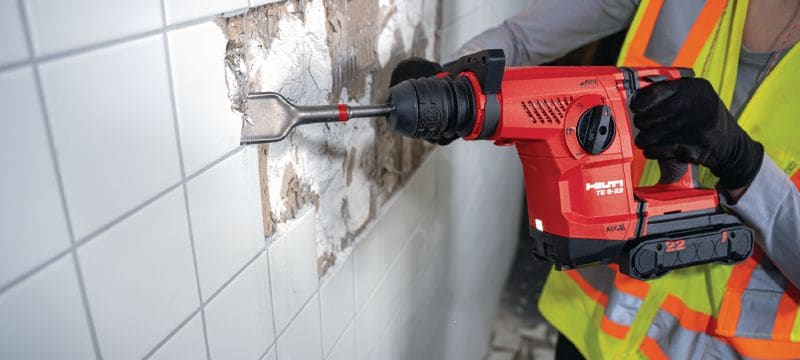

  • Light-duty chiselling – such as tile scraping, channel cleaning or surface correction
  • Occasional drilling in wood and steel (with optional quick-release chuck)
  • Setting anchors and drop-in anchors (with optional TE-C bit holder)

For approval or certificate information, please see individual items.

Hilti Tool Service

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
