Nuron

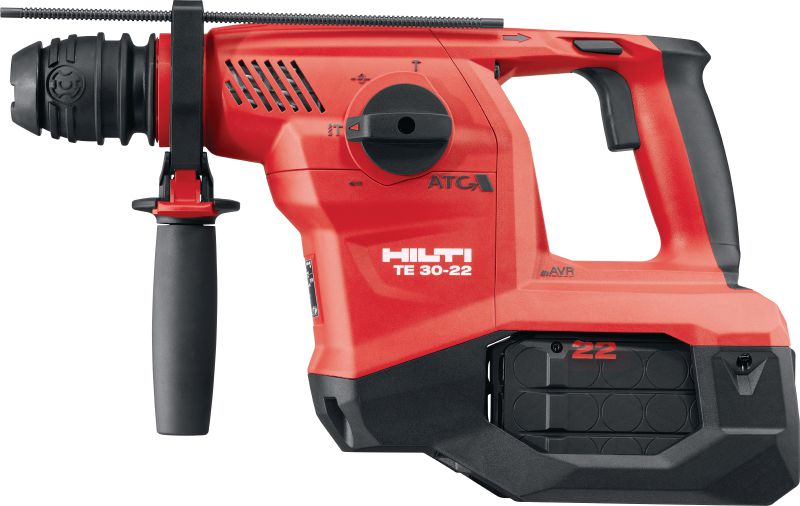

TE 30-22 cordless rotary hammer

Powerful cordless SDS Plus (TE-C) rotary hammer with Active Vibration Reduction and Active Torque Control for concrete drilling and chiseling (Nuron battery platform)

  • Weight according to EPTA-Procedure 01/2003 without battery: 3.9 kg
  • Optimum hammer drilling range: 10 - 25 mm
  • Single impact energy: 3.8 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3.9 kg
Optimum hammer drilling range
10 - 25 mm
Single impact energy
3.8 J
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
777 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Chipping, Depth gauge, Removable chuck, Reverse mode, Torque clutch
Triaxial vibration value for hammer drilling into concrete (ah,HD)
11.1 m/s² 1
Triaxial vibration for chiselling in concrete
8.5 m/s² 2
A-weighted emission sound power level
102 dB (A) 3
A-weighted emission sound pressure level
94 dB (A) 4
Dust removal system available
TE DRS-D, TE DRS-C
  1. according to EN 62841-2-6
  2. according to EN 60745-2-6
  3. according to EN 60745
  4. according to EN 60745

Documents

Features & Applications

Features

  • Our most powerful SDS Plus cordless rotary hammer drill ever, still weighing just 5.1 kg (including B 22-170 battery)
  • Exceptional drilling speed – drills through reinforcing bar up to 200% faster than predecessors
  • More run time per charge – drills up to twice as long as comparable SDS Plus rotary hammers thanks to the combination of brushless motor and revolutionary Nuron batteries

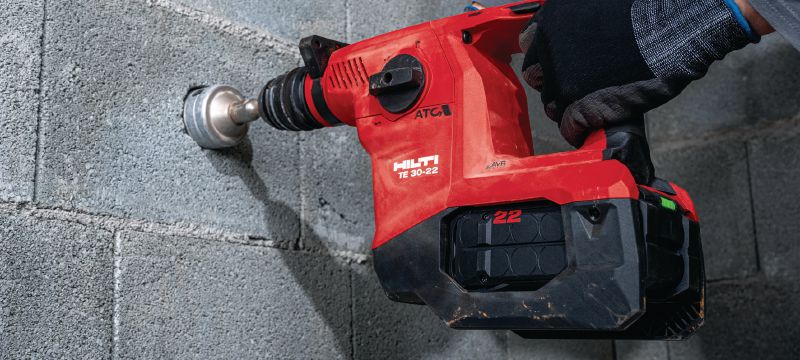

  • Versatility – with a wider optimal drilling range and extensive range of chisel bits and hole saws available, TE 30-22 is an extremely versatile tool with a wide range of capabilities for any jobsite
  • Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams

Applications

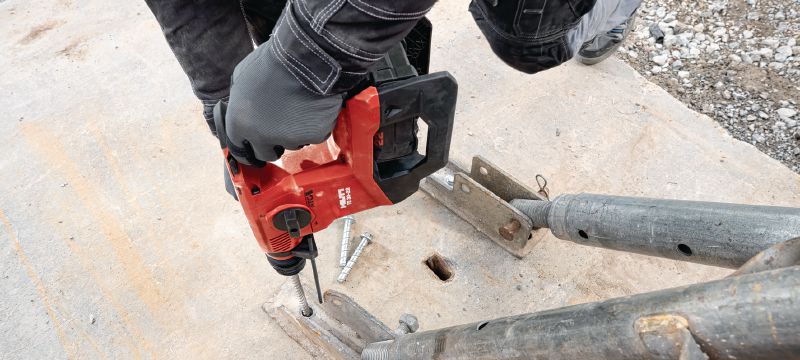

  • Drilling anchor holes in concrete and masonry (recommended diameter range 10-28 mm)
  • Drilling holes for reinforcing bar doweling

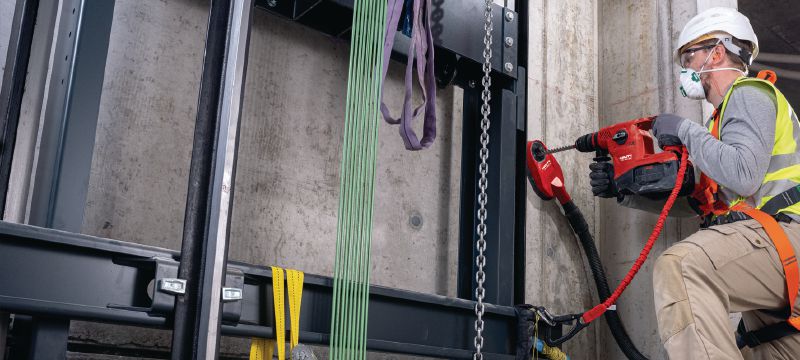

  • Virtually dust-free drilling (TE DRS-C or TE DRS-D vacuum cleaner connector required)

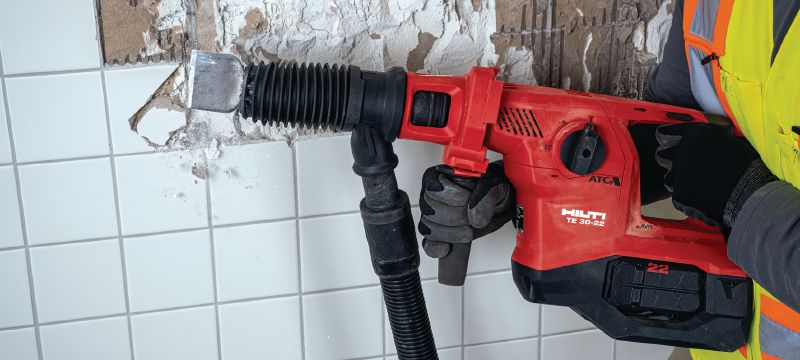

  • light-duty chiseling – such as tile scraping, channel cleaning and surface correction
  • Occasional drilling in wood and steel (optional quick-release chuck required)

For approval or certificate information, please see individual items.

Hilti Tool Service

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
