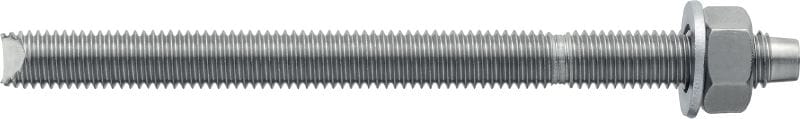

High-performance anchor rod for adhesive capsules in concrete (A4 stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Environmental conditions: Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Customers also searched for chemical anchorThreaded rodChemical boltAnchor bolt or I-bolt.

Technical Data

Material, corrosion
Stainless steel, A4
Environmental conditions
Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, Fire, ICC-ES report (concrete), ICC-ES report (masonry)
Type of fastening
Pre-fastening

Documents

Features & Applications

Features

  • Large range of anchor rod sizes (M8-M39)
  • Designed for use with Hilti HVU capsules in solid concrete
  • Optimised design
  • Features a chisel tip to cut and mix the Hilti HVU capsule, embedment marking for easy setting and a conical head (M8-M24 only) to be used with separate setting tool
  • Short spacing and edge distances

Applications

  • Suitable for fastenings in concrete in combination with Hilti HVU capsules

For approval or certificate information, please see individual items.
