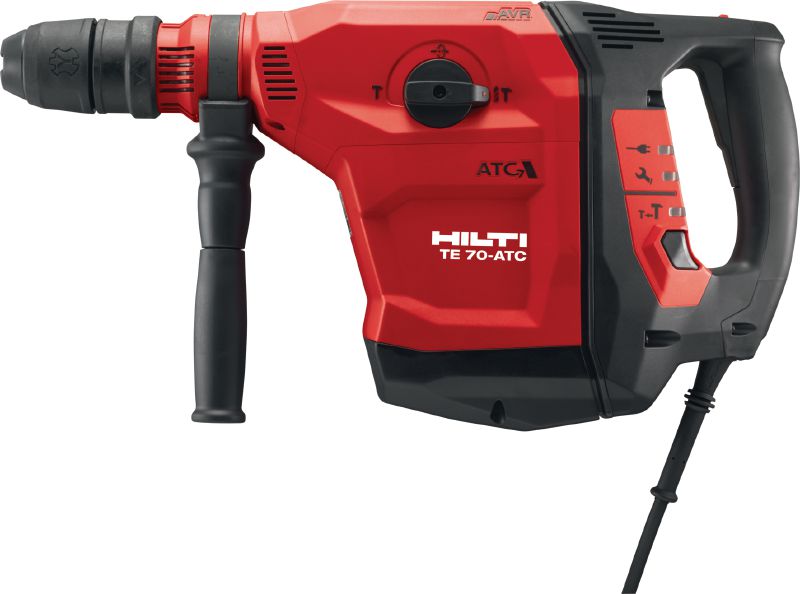

TE 70-ATC/AVR Rotary hammer

Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty drilling and chiselling in concrete

  • Weight according to EPTA-Procedure 01/2003 without battery: 10 kg
  • Weight class: 7 kg
  • Single impact energy: 14.5 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
10 kg
Weight class
7 kg
Single impact energy
14.5 J
Hammer drilling diameter range
12 - 150 mm
Optimum hammer drilling range
20 - 55 mm
Hammer drilling RPM
245 rpm
Full hammering frequency
2830 impacts/minute
Functionality
Active Torque Control (ATC), Chiselling, Power reduction, Active Vibration Reduction (AVR)
Triaxial vibration value for hammer drilling into concrete (ah,HD)
8.6 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D
Triaxial vibration for chiselling in concrete
7.8 m/s² 2
Rated input power
2100 W
A-weighted emission sound power level
113 dB (A) 3
A-weighted emission sound pressure level
103 dB (A) 4
  1. according to EN 62841-2-6
  2. according to EN 60745-2-6
  3. according to EN 60745
  4. according to EN 60745

Documents

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Virtually maintenance-free brushless SR motor and double-chamber lubrication systems for longer service intervals and tool lifetime

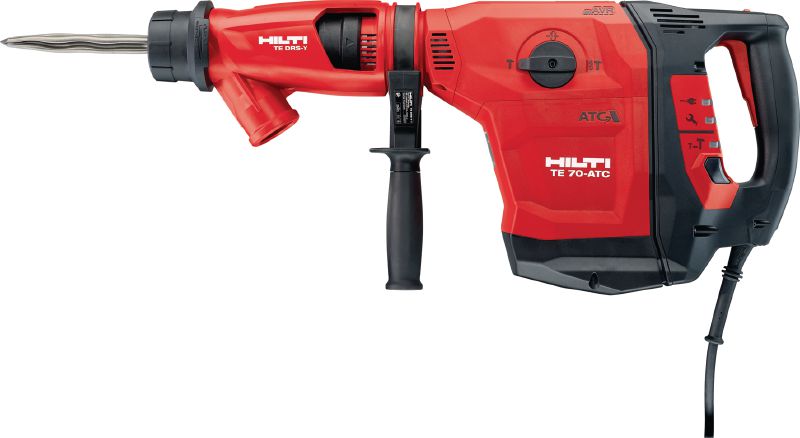

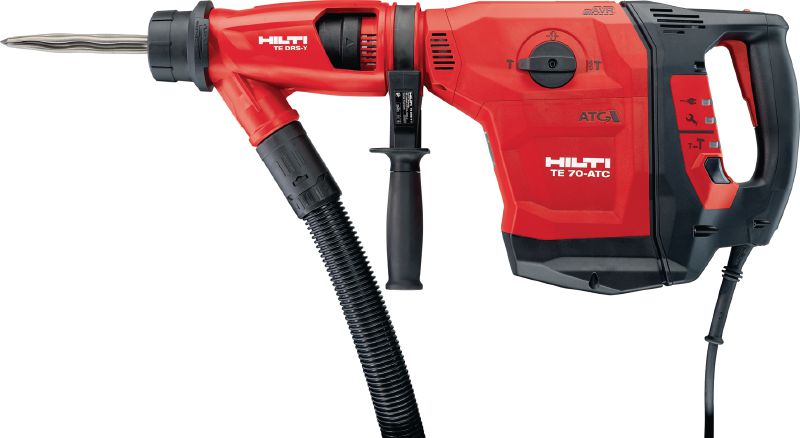

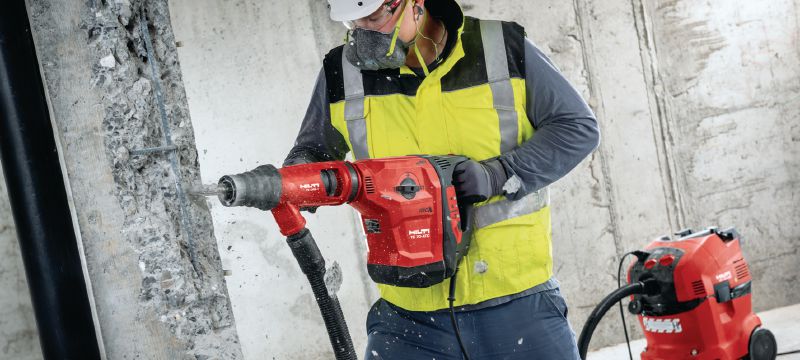

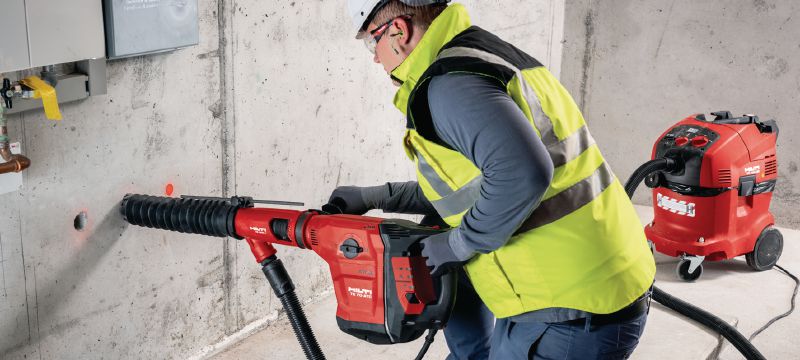

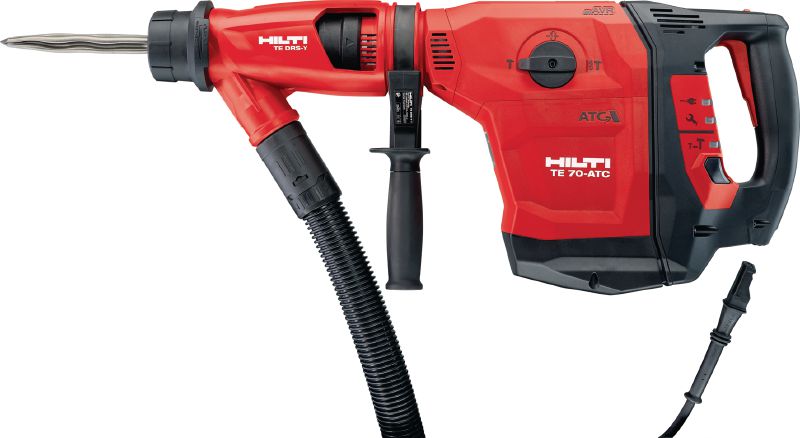

  • Optional DRS-Y dust removal system collects up to 95% of dust

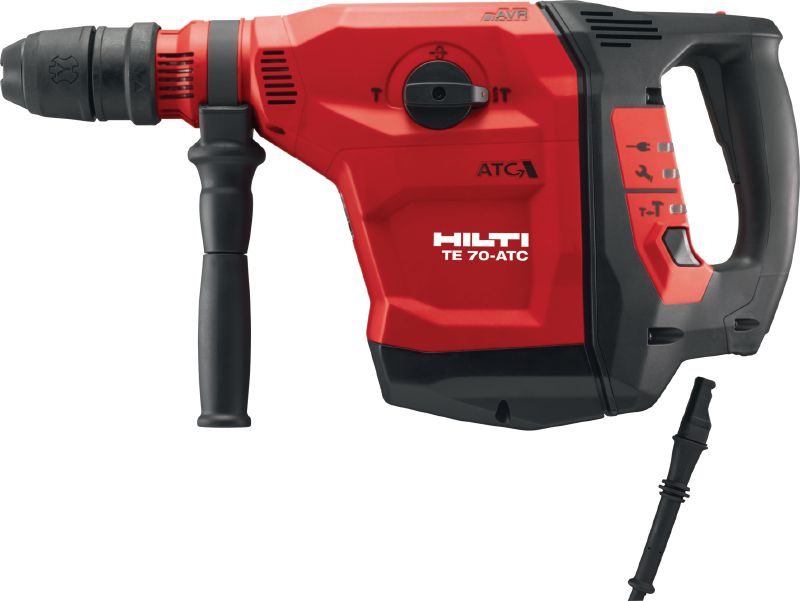

  • Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite

Applications

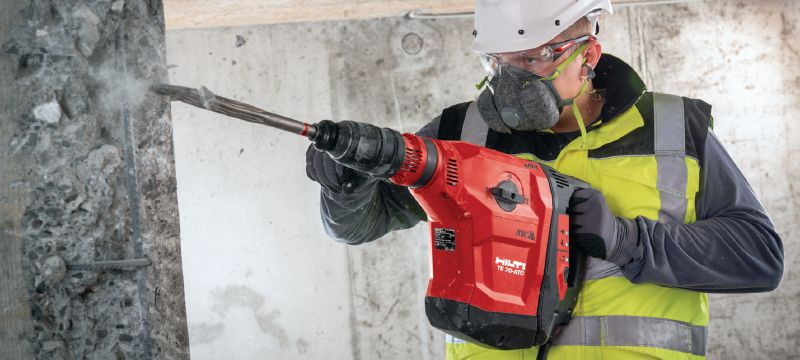

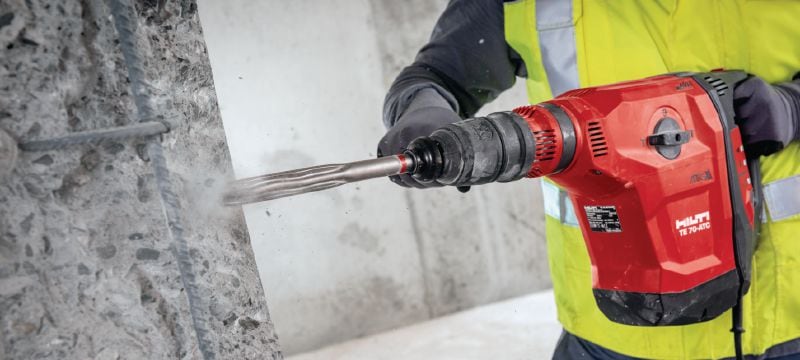

  • Hammer drilling in concrete, masonry and natural stone with drill bits 12 - 150 mm in diameter
  • Drilling holes for heavy-duty anchors from 20-40 mm in diameter

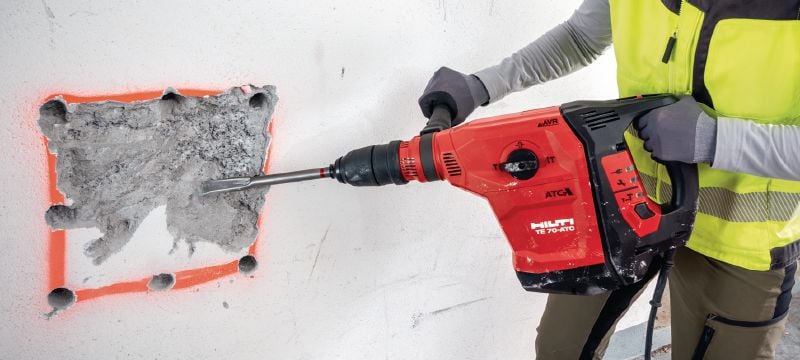

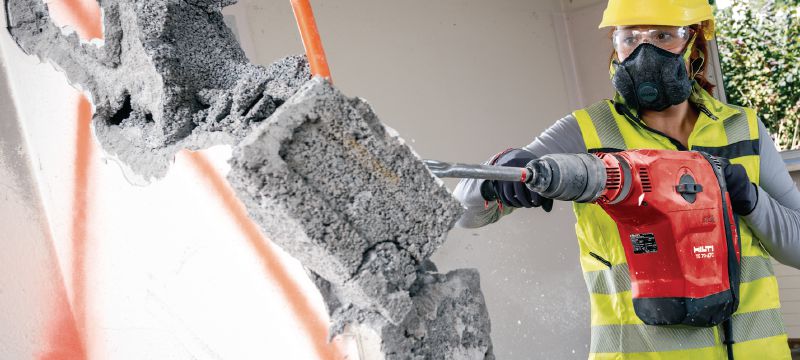

  • Breaching and demolition with pointed and flat chisels
  • Hammer drilling in concrete, masonry and natural stone with drill bits 1/2" - 6" in diameter
  • Drilling holes for heavy-duty anchors from 3/4" - 1-3/4" in diameter

For approval or certificate information, please see individual items.
