TE 30 Rotary hammer

Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

4.1 kg

Optimum hammer drilling range

10 - 20 mm

Single impact energy

3.6 J

Working mode

Hammer drilling, Drilling

Hammer drilling diameter range

4 - 28 mm

Hammer drilling RPM

1100 rpm

Full hammering frequency

4500 impacts/minute

Functionality

Removable chuck, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

14.4 m/s² ¹

A-weighted emission sound pressure level

95 dB (A) ²

Dimensions (LxWxH)

361 x 113 x 225 mm

Quick-change chucks – changing bits is fast and tool-free
0
0
Perfect balance, low weight and compact design for superior working comfort
Quick-change chucks allow use in multiple applications – no need for additional power tools

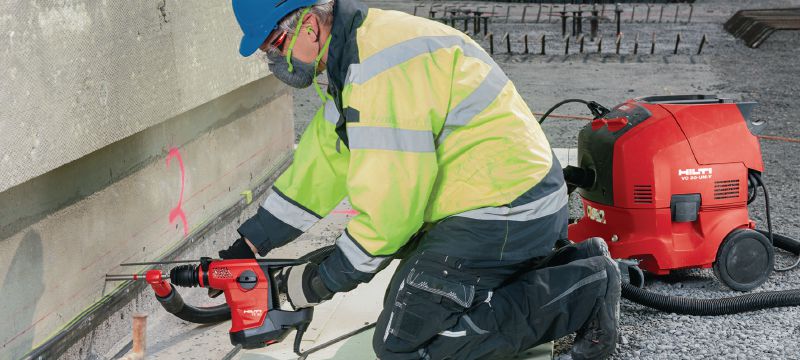

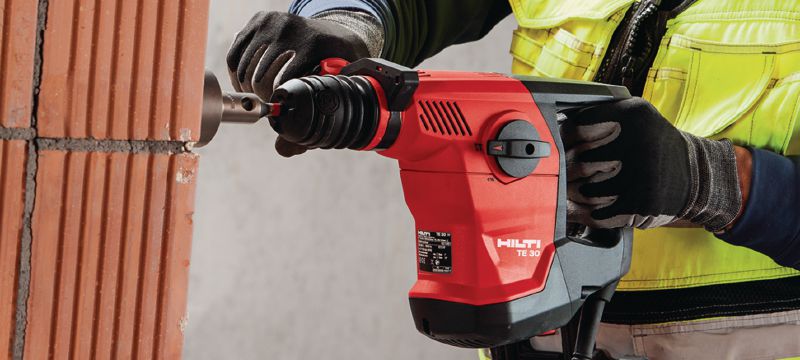

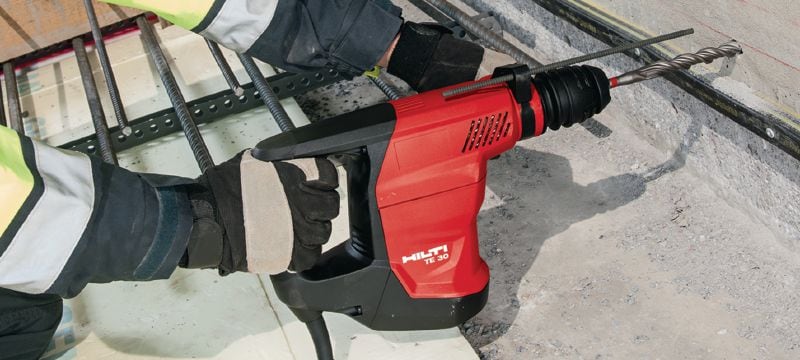

Drilling holes for anchors and rebar connections as well as through-holes in concrete and masonry: possible diameter range 4-28 mm, recommended diameter range 10-20 mm
Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter

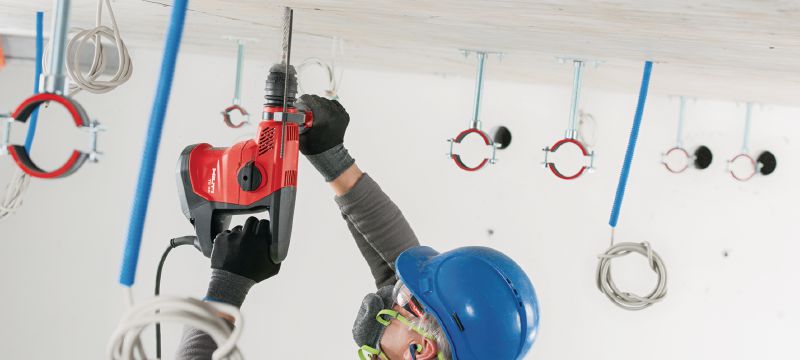

Driving anchor screws and concrete screw anchors

For approval or certificate information, please see individual items.
