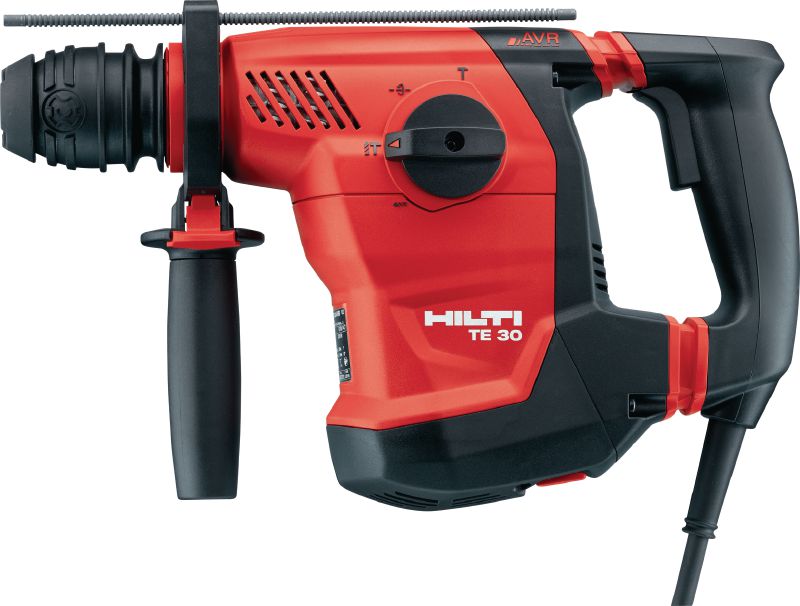

TE 30-AVR Rotary hammer

Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiselling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 4.2 kg
  • Optimum hammer drilling range: 10 - 20 mm
  • Single impact energy: 3.6 J

Customers also searched for drillingcombihammer or demolition.

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
4.2 kg
Optimum hammer drilling range
10 - 20 mm
Single impact energy
3.6 J
Working mode
Hammer drilling, Drilling, Chisel setting, Chiselling
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
1100 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
9.7 m/s² 1
Triaxial vibration for chiselling in concrete
8.8 m/s² 2
A-weighted emission sound pressure level
95 dB (A) 3
Dimensions (LxWxH)
371 x 113 x 225 mm
  1. according to EN 62841-2-6
  2. according to EN 60745-2-6
  3. according to EN 60745

Documents

Features & Applications

Features

  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Quick-change chucks – changing bits is fast and tool-free
  • Extra-long lifetime thanks to a highly robust chuck, motor components and casing
  • Active Vibration Reduction (AVR) makes working with the tool less tiring and increases productivity
  • Perfect balance, low weight and compact design for superior working comfort

Applications

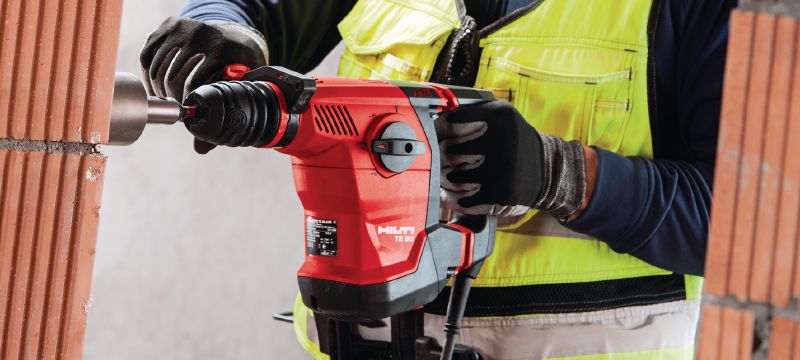

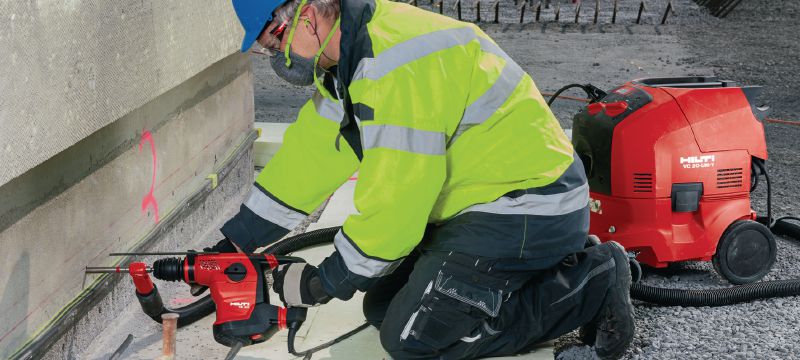

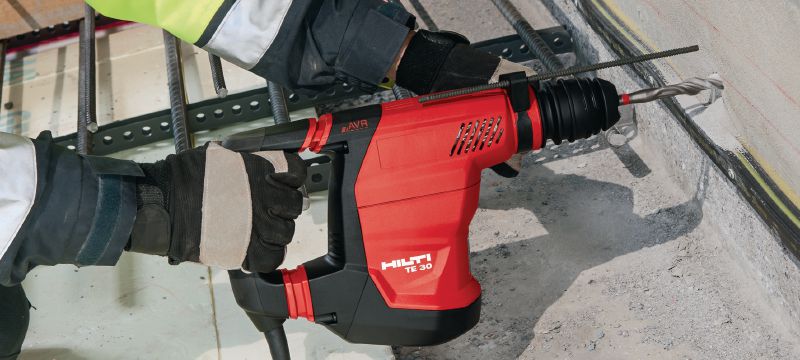

  • Drilling anchor, rebar and through holes in concrete and masonry – possible diameter range 4-28 mm, recommended diameter range 10-20 mm

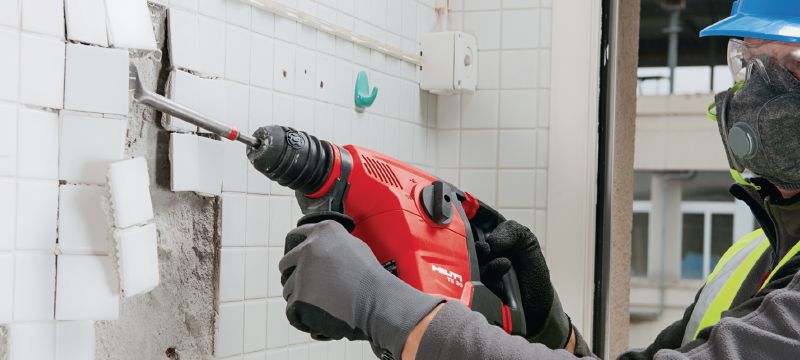

  • Chiselling in brick and block, corrective chiselling and surface finishing on concrete
  • Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter
  • Driving anchor screws and concrete screw anchors

For approval or certificate information, please see individual items.
