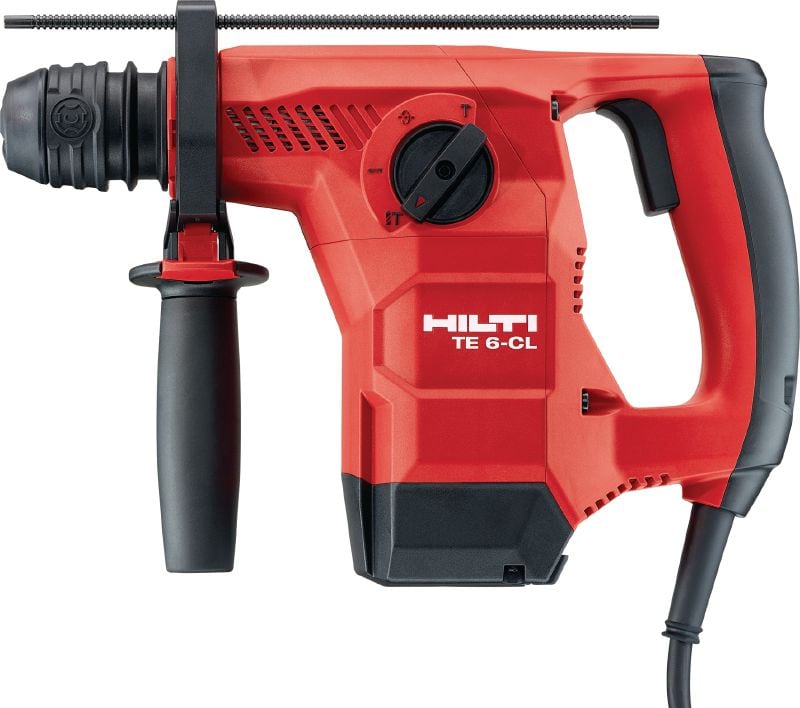

TE 6-CL Rotary hammer

Powerful D-grip SDS Plus (TE-C) rotary hammer drill with chipping function

  • Weight according to EPTA-Procedure 01/2003 without battery: 3.38 kg
  • Optimum hammer drilling range: 6 - 16 mm
  • Single impact energy: 2.3 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3.38 kg
Optimum hammer drilling range
6 - 16 mm
Single impact energy
2.3 J
Working mode
Hammer drilling, Drilling, Chiselling, Chisel setting
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
960 rpm
Full hammering frequency
4680 impacts/minute
Functionality
Chiselling, Depth gauge, Reverse mode, Removable chuck
Triaxial vibration value for hammer drilling into concrete (ah,HD)
17.3 m/s² 1
Triaxial vibration for chiselling in concrete
10.1 m/s² 2
A-weighted emission sound pressure level
92 dB (A) 3
Rated input power
890 W
Dimensions (LxWxH)
325 x 93 x 221 mm
  1. according to EN 62841-2-6
  2. according to EN 60745-2-6
  3. according to EN 60745

Documents

Features & Applications

Features

  • Built for speed and longevity – re-engineered to deliver higher drilling performance from an even more reliable, longer-lasting rotary hammer
  • Consistent power output – the 8.5 Amp motor delivers the performance you need to get demanding drilling jobs done faster, even if the power supply fluctuates

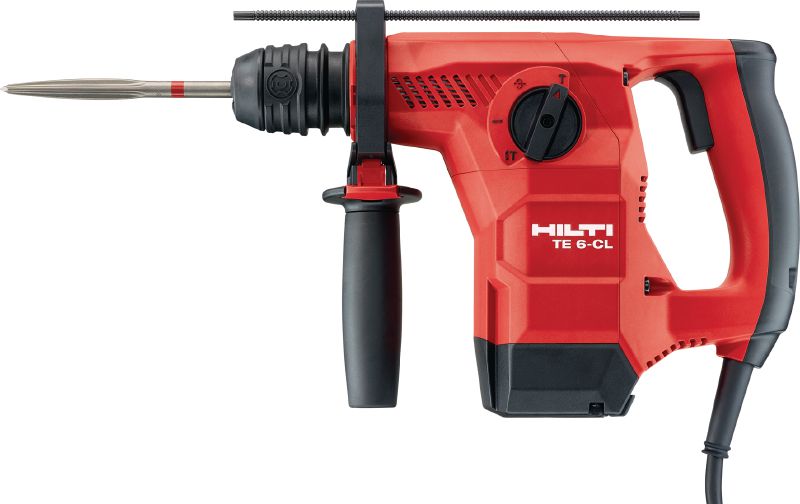

  • Powerful chiselling performance – with easy adjustment of chisel positioning
  • Multi-mode SDS Plus rotary hammer – for hammer drilling, rotary-only drilling and chiselling
  • Rapid maintenance – power cords or carbon brushes can be replaced with minimal downtime

Applications

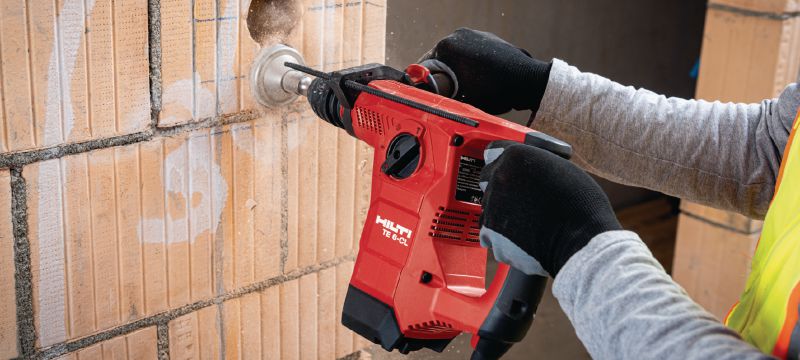

  • Drilling and hammer drilling in concrete, masonry and stone

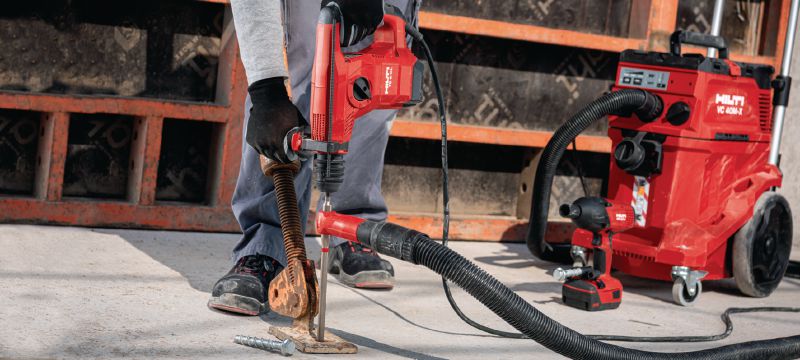

  • Drilling anchor holes and formwork assembling
  • Concrete chiselling and slag removal
  • Chiselling of small channel openings into concrete and masonry
  • Precision chiselling in masonry

For approval or certificate information, please see individual items.
