Nuron

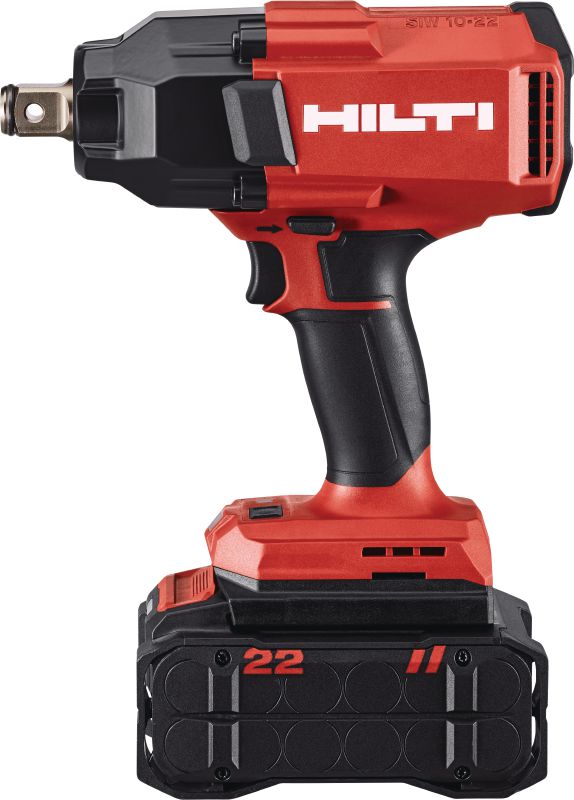

SIW 10-22 ¾” high-torque cordless impact wrench
Ultimate-class, high-torque cordless impact wrench with ¾” anvil and friction ring for heavy bolting and anchoring
- Anvil type: 3/4" through hole with friction ring
- Maximum torque: 850 Nm (1); 1600 Nm (2)
- Nut-busting torque: 2000 Nm
Technical Data
Anvil type
3/4" through hole with friction ring
Maximum torque
850 Nm (1); 1600 Nm (2) 1
Nut-busting torque
2000 Nm
Full hammering frequency
2500 impacts/minute
Number of gears
2
No load RPM
gear 1: 1000 rpm; gear 2: 1250 rpm
Dimensions (LxWxH)
217 x 86 x 235 mm
Tool body weight
2.9 kg
A-weighted emission sound pressure level
100 dB (A) 2
- Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
- according to EN 60745
Documents
Features & Applications
Features
- Advanced cordless performance – heavy-duty cordless impact wrench offers higher torque and greater power in a more compact body
- Designed to last – robust brushless motor and ¾” anvil contribute to the durability and consistent performance of our cordless impact wrenches
- More productivity and control – two speed settings and brighter LED light so you can transition easily from heavy to lighter-duty applications
- Less vibration for more user comfort – lower tool vibration enables longer periods of work without user fatigue
- On the Nuron battery platform – cordless tools without compromise, thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow
Applications

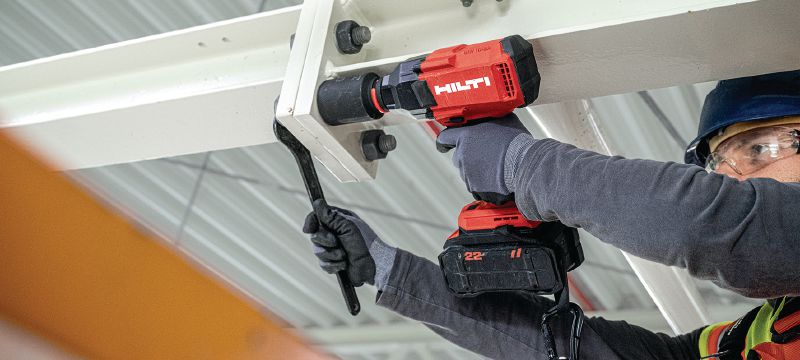

- Bolting steel for primary and secondary steel structures, handrails, racking and machinery (up to M30 diameter high-tensile bolts)

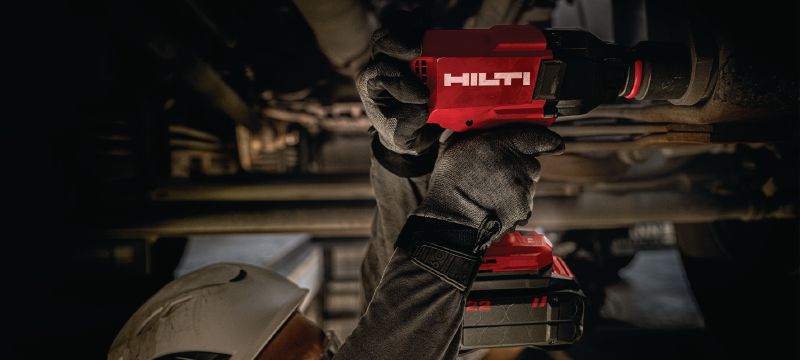

- Loosening large rusty bolts for maintenance, operation and repair work

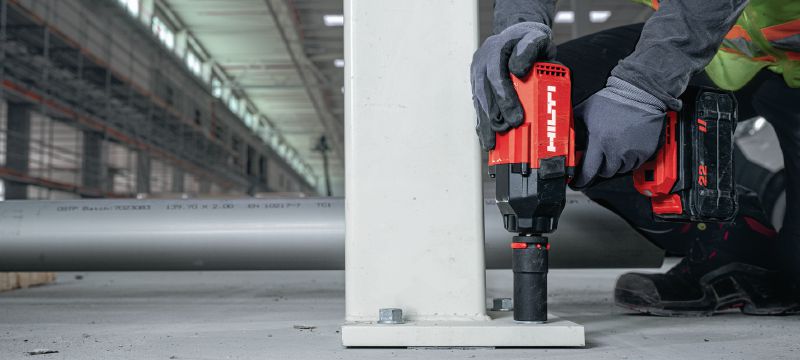

- Setting large diameter HUS anchors in concrete for baseplates, formwork props, handrails and temporary fixtures (10-16 mm diameter)
- Lag bolting in wood for primary and secondary wood structures, wooden roofs or temporary structures (12-20 mm diameter)
- Bolting structural steel connections, pipe flanges, equipment, 1/2”to 1 1/8” diameter structural bolts
For approval or certificate information, please see individual items.
