Nuron

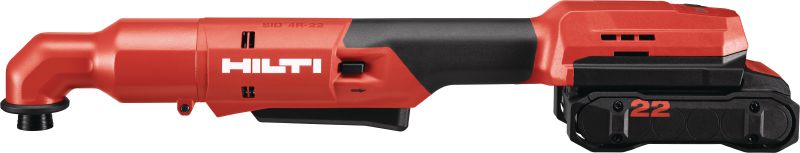

SID 4R-22 Right-angle impact driver

Compact, cordless right-angled impact driver for reaching tough-to-access applications

Technical Data

Chuck type

1/4" hexagonal click-in

No load RPM

gear 1: 1600 rpm; gear 2: 2250 rpm

Maximum torque

31 Nm (1); 98 Nm (2) ¹

Full hammering frequency

3800 impacts/minute

Number of gears

Dimensions (LxWxH)

438 x 69 x 78 mm

Tool body weight

1.2 kg

A-weighted emission sound pressure level

97 dB (A) ²

Tri. vibr. val. for impact tightening of fasteners at max. cap. of tool (ah)

17.4 m/s²

Rated voltage

21.6 V

Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
according to EN 60745

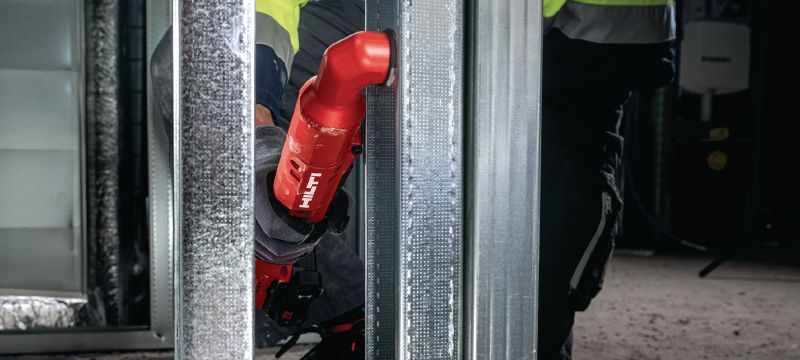

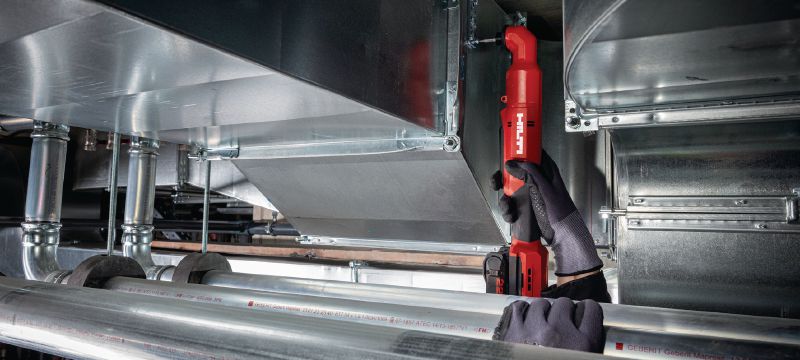

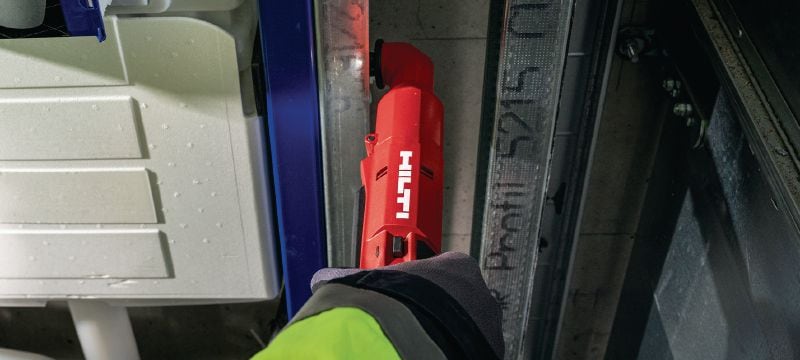

Access to hard-to-reach spaces where other tools won’t fit
Reach even further into confined spaces with the longer grip and in-line battery interface
Quick change ¼” hex chuck allows for the easy input of bits
Built to last thanks to the more efficient brushless motor, more powerful motor cooling and sealed electronics
Strong LED light provides more powerful illumination of the work area

Self-drilling screws – optimised for drilling through metal, then driving threads to completion

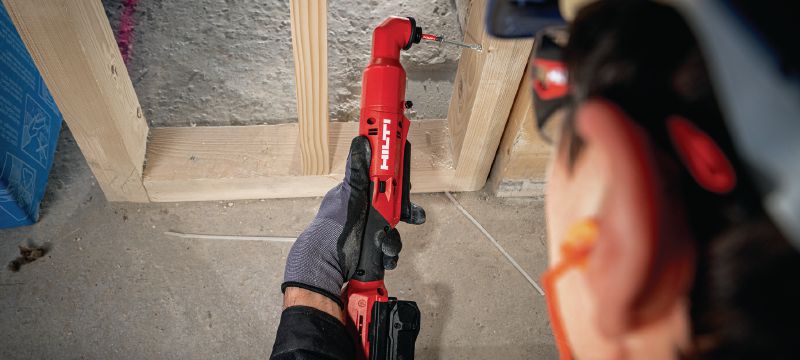

Wood screws – agile cordless impact driver for attaching wood to your project
Masonry screws – two gears so torque can be reduced for masonry screws
Drilling in wood with spade bits such as WDB-S

For approval or certificate information, please see individual items.
