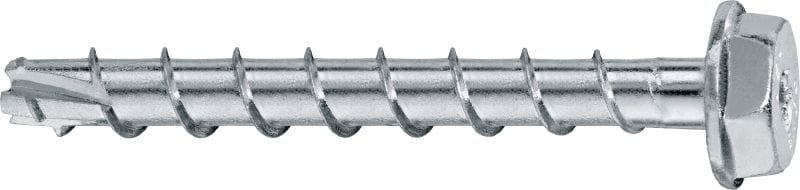

HUS3-H 6 Concrete screw anchor

Screw anchor HUS3-H 6x80/25/45 #416737

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, hex head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Hex head
  • Socket size: 13 mm

Customers also searched for screw anchorsreusable anchorsadjustable anchorhand rail anchor or anchoring.

Choose options

Anchor size
  • 6 mm
Anchor length
  • 80 mm
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Piece
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 432.00

SR 4.32 / 1 Piece

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Socket size
13 mm
Bit size
T30
Drill bit diameter
6 mm
Approvals / test reports
ETA, Fire, Seismic, VDS
Reusable (and removable)
Possible
PROFIS software
Yes
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Neat head design, no further finishing required
  • More reliable and easy to set – HSE product profile available
  • Unbeaten for overhead installation – greatly simplifies the work
  • Reduced edge and spacing distances

Applications

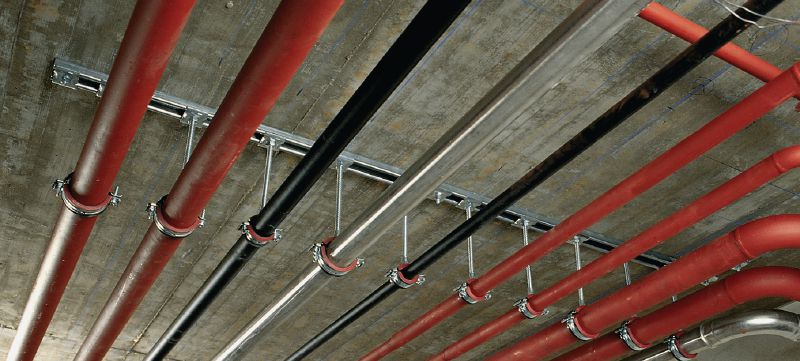

  • Fastening channels directly to the ceiling for the installation of pipes or ventilation ducts
  • Fastening handrails, railings and other ornamental steelwork
  • Suitable for repetitive installation tasks
