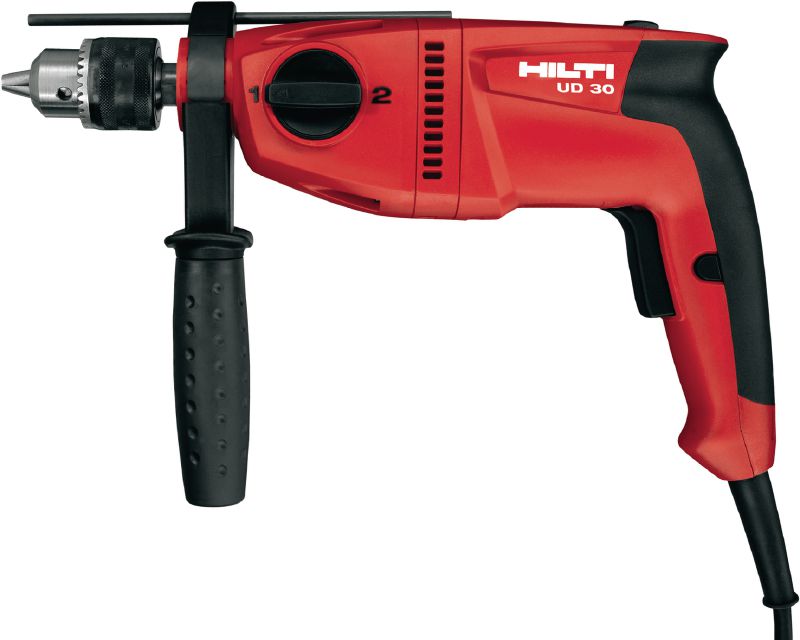

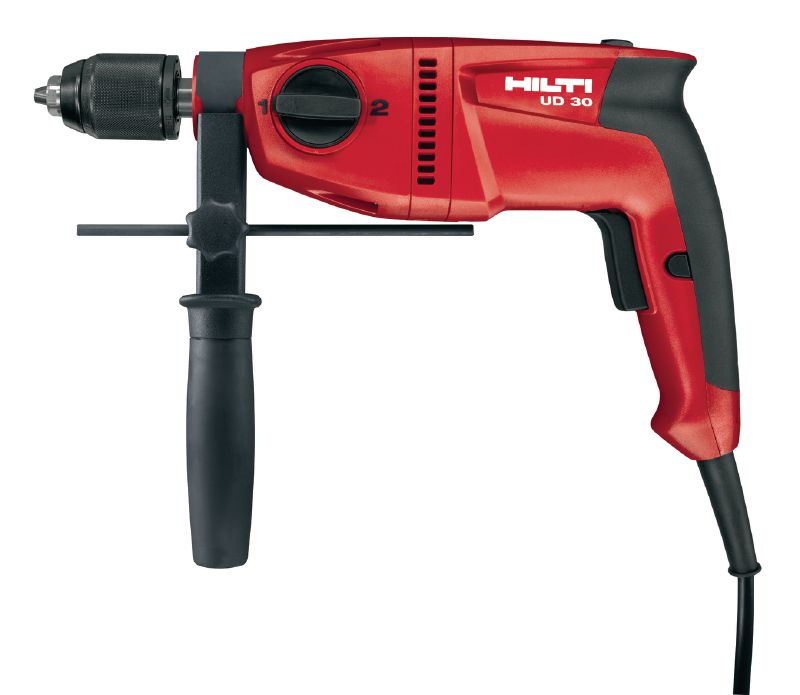

UD 30 Drill driver
Drill UD 30 230V #2065340
Corded two-speed, high-rpm drill driver for metal applications
- Chuck clamping range: 2 - 13 mm
- No load RPM: gear 1: 1200 rpm; gear 2: 3300 rpm
- Maximum torque (soft/hard joint): 51 Nm (soft joint)
Customers also searched for steel drilling, wood drilling, hole sawing, drill or tools & equipment.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
SR 1,882.50
SR 1,882.50
/
1 Piece
Technical Data
Chuck clamping range
2 - 13 mm
No load RPM
gear 1: 1200 rpm; gear 2: 3300 rpm
Maximum torque (soft/hard joint)
51 Nm (soft joint)
Number of gears
2
Dimensions (LxWxH)
337 x 86 x 205 mm
Weight
2.4 kg
Triaxial vibration value for drilling into metal (ah,D)
3.5 m/s² 1
Rated input voltage
230 V
Chuck type
Pistol grip, Quick-release chuck 13 mm
- according to EN 60745-2-1
Documents
pdf Operating Instruction UD 30, UD 16 (01), Arabic, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Italian, Lithuanian, Latvian, Dutch, Norwegian, Portuguese, Swedish [ 2.6 MB ]
Features & Applications
Features
- Ergonomically designed pistol grip and low weight for maximum comfort during long periods of use
- Very reliable thanks to the extremely rugged casing and robust motor
- Stepless electronic speed control for smooth, gentle starting and screwdriving
- Choice of keyless chuck with spindle lock or robust key chuck
- Keyless quick-release chuck with spindle lock for easy bit changing
Applications
- Drilling in steel and sheet metal

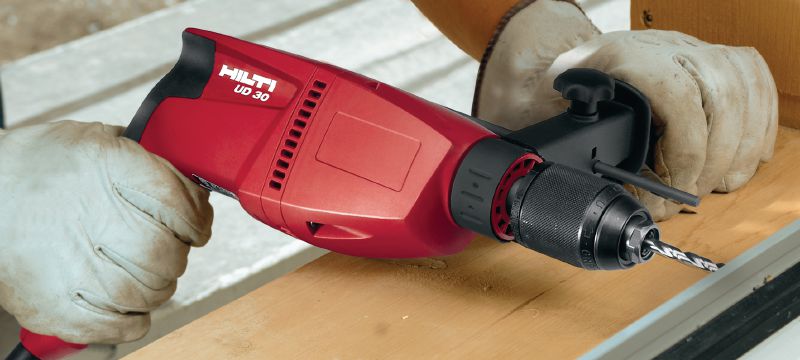

- Drilling in wood with auger bits, paddle bits and Forstner bits
- Various screwdriving jobs
- Use of hole saws (up to 68 mm diameter)
- Driving large-diameter wood screws
Hilti Tool Service
Hilti Tool Service
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
- 1-month no-cost period after each paid repair
- Smooth on-site pick-up and delivery thanks to our strong partnerships with trusted carriers
LifeTime Services
- 1 year no repair costs from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 1-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
