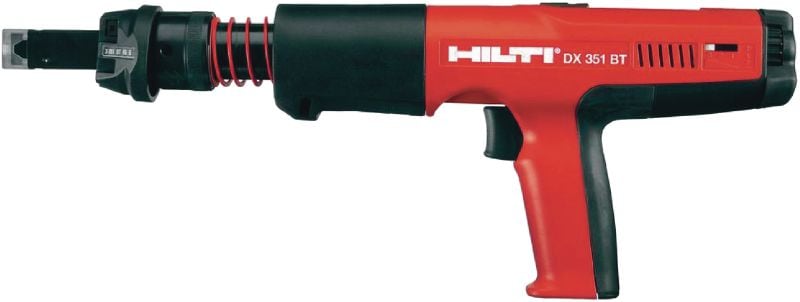

DX 351-BTG Powder-actuated tool




Fully automatic, high-productivity and compact powder actuated tool for fastening X-BT threaded stud
- Dimensions (LxWxH): 431 x 56 x 164 mm
- Weight: 2.36 kg
- Fastener intake: Threaded stud
Customers also searched for nail fastening tool, direct fastening tool, fastening instrumentation, industrial fastening or direct fastening.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
Discounted net
SR 11,177.50
SR 11,177.50
/
1 Piece
Technical Data
Dimensions (LxWxH)
431 x 56 x 164 mm
Weight
2.36 kg
Fastener intake
Threaded stud
Fastener length range
21 - 21 mm
Cartridge type
6.8/11 .27 calibre short
Automatic piston return
Yes
Bluetooth
No
Hilti Connect
No
Power (max.)
85 J
Power regulation
Yes
Piston type
X-351-BTG M8P
Documents
pdf CIP Type Approval S807 for DX 351 BT, German, English [ 202.2 KB ]
Features & Applications
Features
- Quicker, easier and more reliable fastening solution which eliminates steel base material finishing work
- Ideal for use on high-strength coated steel, 8 mm or thicker
- Total mobility and complete independence from an electrical power supply
- Virtually no reworking required – steel corrosion protection remains intact
- Cordless solution
Applications

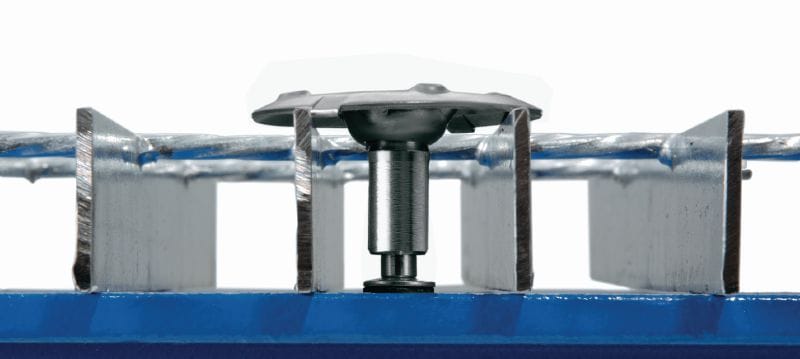

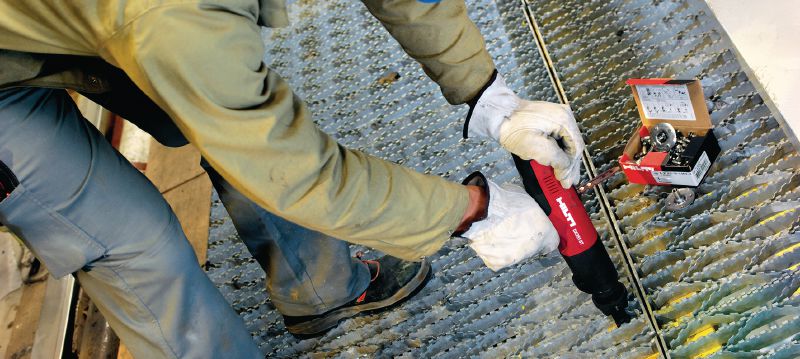

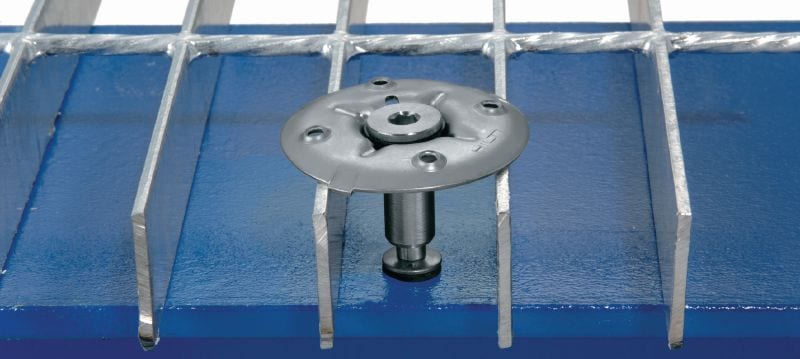

- Fastening threaded X-BT grating studs to min. 8 mm thick coated steel substrates without through penetration of the steel
- Fastening to coated steel in corrosive environments with 8 mm (M8) threaded studs
- Fastening light-duty electrical, such as cables, conduit connectors, cable trays
- Installing junction boxes, lighting, switch boards
- Fastening light-duty mechanical, such as pipe hangers, struts
For approval or certificate information, please see individual items.
