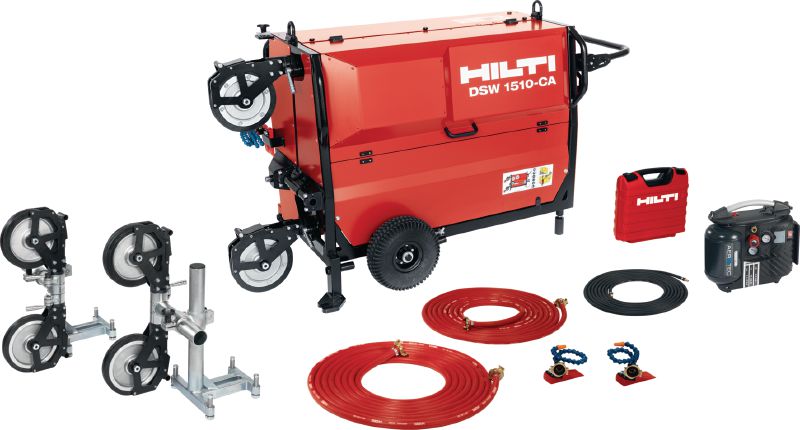

DSW 1510-CA Wire saw

Configurator
Technical Data
Documents
Features & Applications
Related Products
L140072_v2 (212048)
L140894_cropped (218543)
L140895_cropped (218542)
L140896_cropped (218544)

Electric wire saw (15 kW) designed for easier operation on heavy-duty cutting jobs with automatic wire tension, automatic cut steering, and wireless remote control

  • Motor power: 16 kW
  • Power source: Electric
  • Min. generator power: 40 kVA

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From SR 532,460.00

Technical Data

Motor power
16 kW
Power source
Electric
Min. generator power
40 kVA
Wire storage capacity
9.8 m
Weight
345 kg
A-weighted emission sound pressure level
82.7 dB (A) 1
IP protection class
IP 55 (EN 60529)
  1. according to EN 60745

Documents

Brochure
Material safety datasheet
Operating Instruction
pdf Electric Diamond Wall and Wire Saws Leaflet [ 9.7 MB ]

Features & Applications

Features

  • Cut Assist – equips diamond wire saws for fully automated cutting. Cut Assist means much higher productivity and more time for other tasks

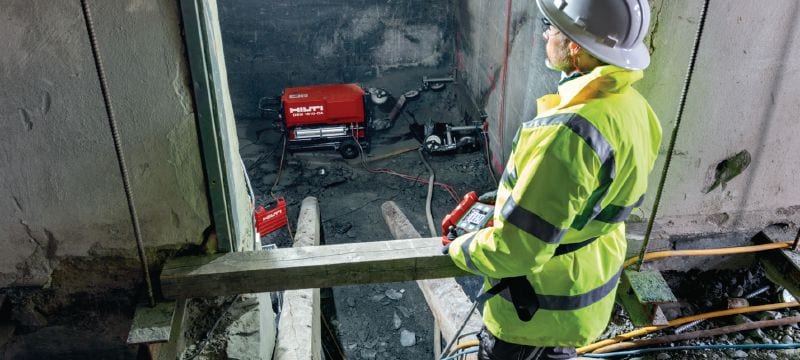

  • Wireless remote control steering – the operator can stand at a safer distance from the wire saw during the cut
  • Electric box integrated – no extra cables needed
  • Higher initial torque to get the wire started
  • Keyless adjustment of the guide pulleys

Applications

  • Structural alterations to buildings or infrastructure – openings of all kinds and almost any shape
  • Sawing anything from heavily reinforced concrete to thick stonework
  • Demolition of structural components – such as bridges, chimneys, tunnels, dams, foundations
  • Sawing in noise-sensitive locations
  • Diamond wire cutting when space is too confined for wall saws

For approval or certificate information, please see individual items.
