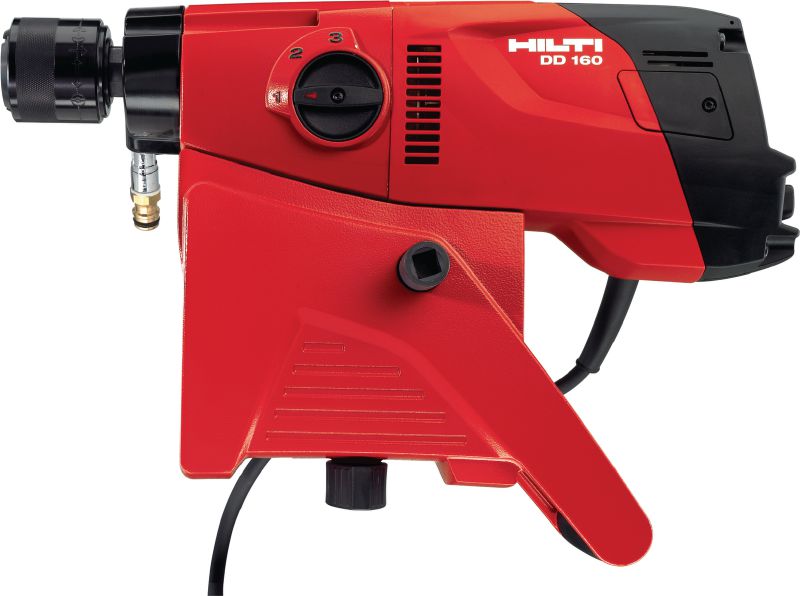

DD 160 Core drill
Compact but powerful diamond coring machine for rig-based concrete coring from 25-202 mm (31/32 – 7-15/16") in diameter
- Diameter range: 25 - 202 mm
- Drill stand: Base plate dimensions and system weight based on use of SFL stand
- Base material: Concrete
Customers also searched for core machine, coring tool, concrete cutter, coring reinforced concrete or hole punch.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Diameter range
25 - 202 mm
Drill stand
Base plate dimensions and system weight based on use of SFL stand
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 460 rpm; gear 2: 760 rpm; gear 3: 1690 rpm
Weight according to EPTA-Procedure 01/2003 without battery
10.3 kg
Weight of complete system
16 kg
Dimensions (LxWxH)
450 x 195 x 315 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
4 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
PS/PL
Corner accessibility
53 mm
- according to EN 60745
Documents
Features & Applications
Features
- Exceptionally user-friendly thanks to intuitively-designed features and controls
- Sturdy three-speed gearing for outstanding concrete coring performance across the entire diameter range
- Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life

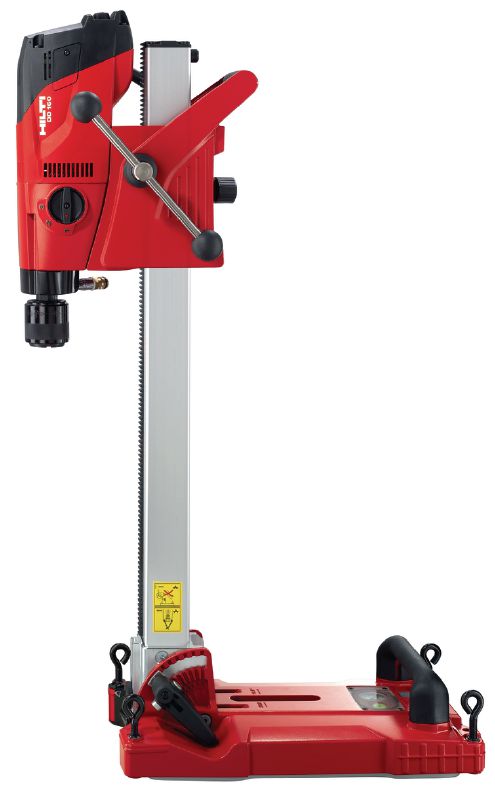

- Choice of a high-grade drill stand with many useful features or simple, very compact drill stand with basic functionality
- Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)
Applications

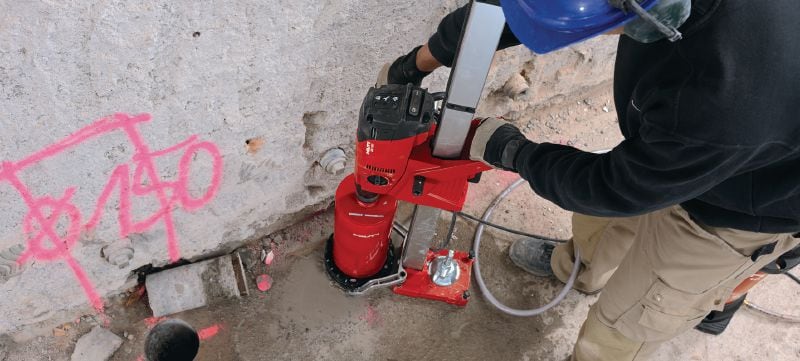

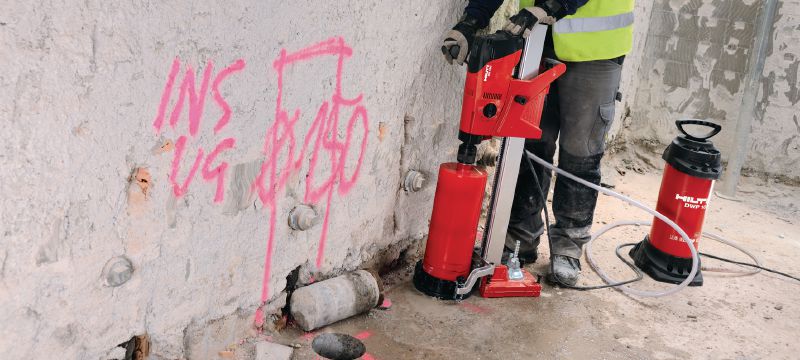

- Rig-based wet drilling in concrete for pipe penetrations in plumbing, heating and air conditioning installations
- Stitch drilling for cable trays and ventillation ducts
- Drilling blind holes for large-diameter anchors, reinforcing bars and the installation of railings and barriers
- Rig-based core drilling in wood up to 202 mm (8") diameter
For approval or certificate information, please see individual items.
