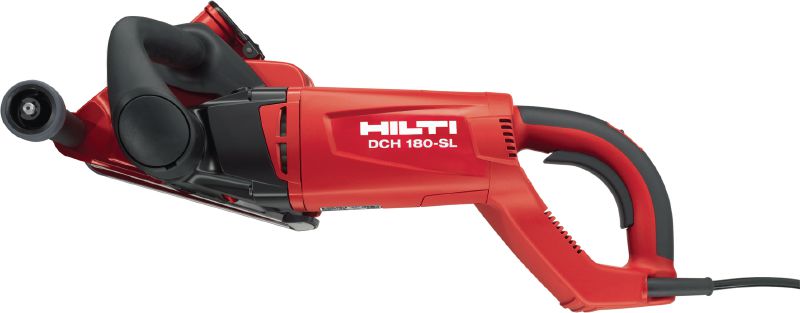

DCH 180-SL Wall chaser
Slitting machine DCH 180-SL 230V #2020564
Dry electric hand-held diamond slitting machine, for parallel cuts up to 60 mm deep
- Cutting depth: 60 mm
- Disc diameter: 185 mm
- Weight according to EPTA-Procedure 01/2003 without battery: 9.2 kg
Customers also searched for electrical conduit installation, cutting into concrete, diamond cutting machine, slitting machine or cutting.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Piece
1
Discounted net
SR 9,187.50
SR 9,187.50 / 1 Piece
Technical Data
Cutting depth
60 mm
Disc diameter
185 mm
Weight according to EPTA-Procedure 01/2003 without battery
9.2 kg
No load RPM
gear 1: 6500 rpm
Arbor size
22.2 mm
A-weighted emission sound pressure level
103.5 dB (A) 1
- according to EN 60745
Documents
Features & Applications
Features
- Smart Power technology automatically adjusts power output to suit the material being cut – helping to deliver consistently high cutting performance and to protect the motor from overload
- Helping to enable a virtually dust-free jobsite when used with a compatible vacuum cleaner
- Ergonomic design makes the wall chaser less tiring to control when working in any position
- The depth gauge helps to increase cutting accuracy while also shielding the operator from the blade and dust
- Achieve even greater productivity gains by using with specifically developed Hilti cutting discs
Applications
- Quick, neat chasing for cable conduits and pipes in electrical, plumbing, heating and air conditioning installations
- For use on concrete, sand-lime block and brick
Hilti Tool Service

Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
