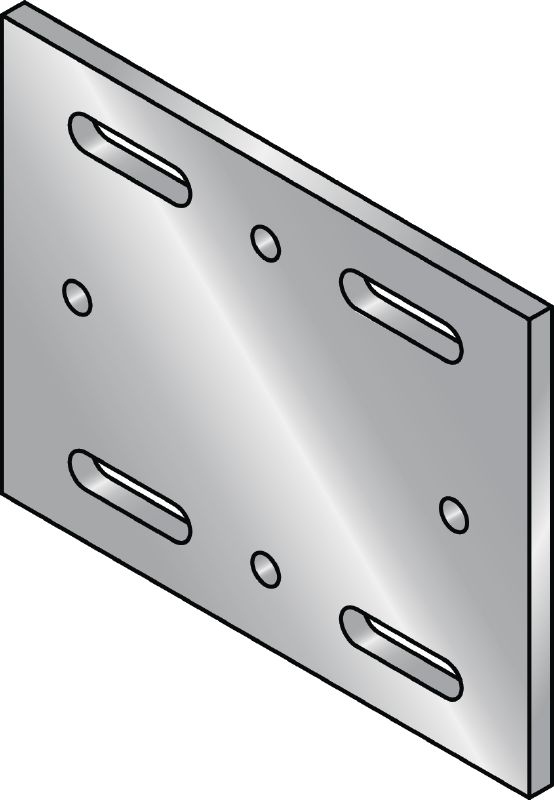

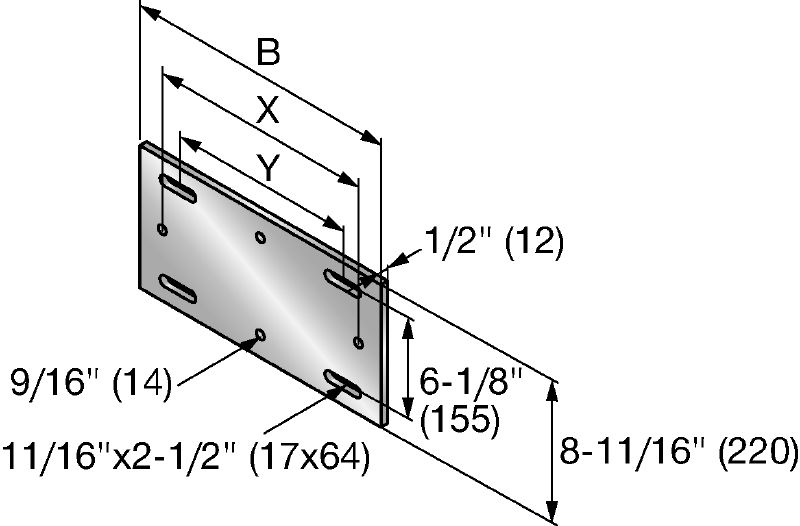

MIB-SH Baseplate

IS_MIB-SAH_0001_o (179921)

LCG001714_v1_cropped (179063)

IS_MIB-SAH_0001_o (179921)

LCG001714_v1_cropped (179063)

Hot-dip galvanised (HDG) baseplate for fastening MI girders to steel

Material composition: S235JR - DIN EN 10025-2
Surface finish: HDG: min 55 µm - DIN EN ISO 1461
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

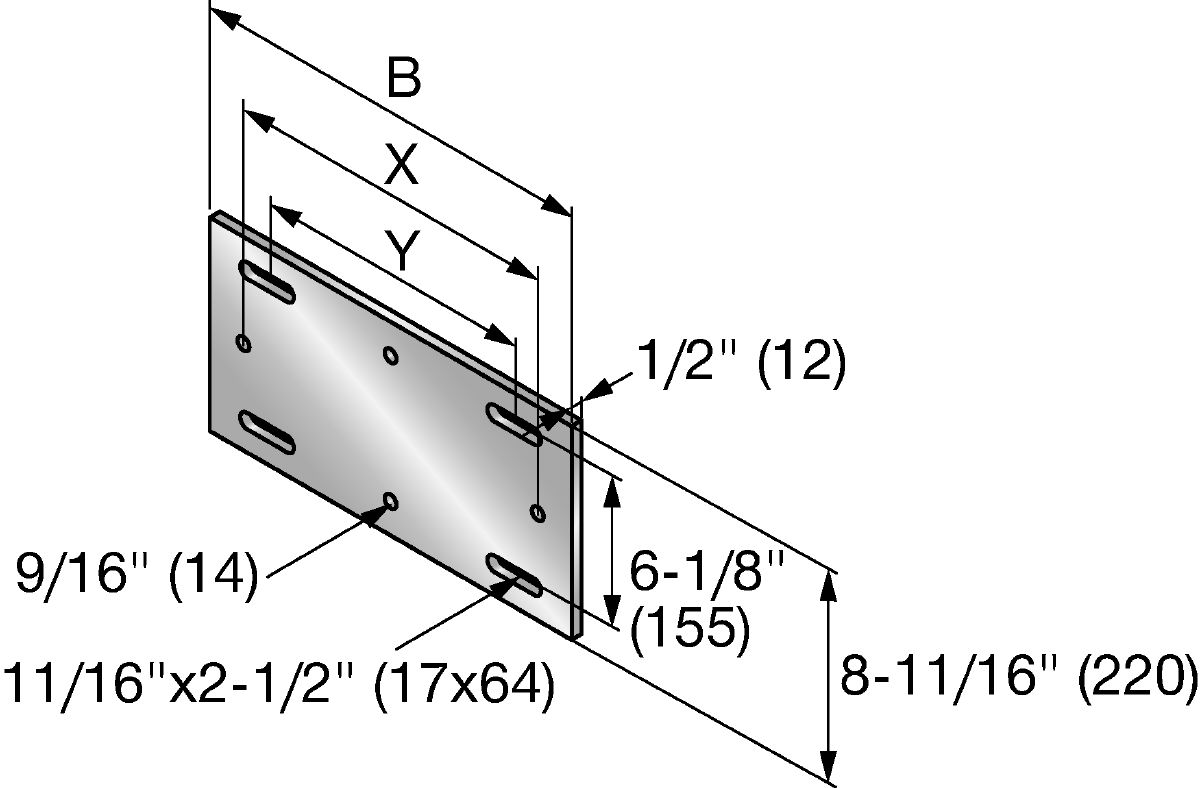

Technical Data

Material composition

S235JR - DIN EN 10025-2

Surface finish

HDG: min 55 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

Girder connection point can be positioned as desired for special cases
All steel beam widths from 75–300 mm covered by only 3 plates
High-strength part designed for extra-high application loads

Applications

Connection to steel using M16 threaded rods
For MI 90/MI 120 girders in combination with MIC-SC90/MIC-SC120 connectors
Industrial and heavy commercial applications, eliminating the need for welding

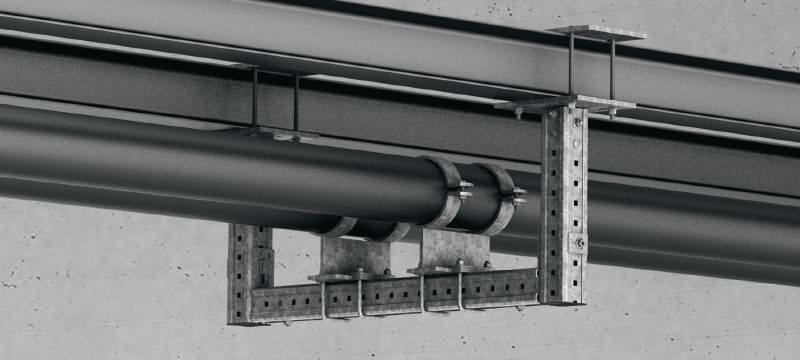

Supporting cable trays, pipes and miscellaneous secondary steel
Recommended for use in moderately corrosive outdoor and indoor environments

For approval or certificate information, please see individual items.
