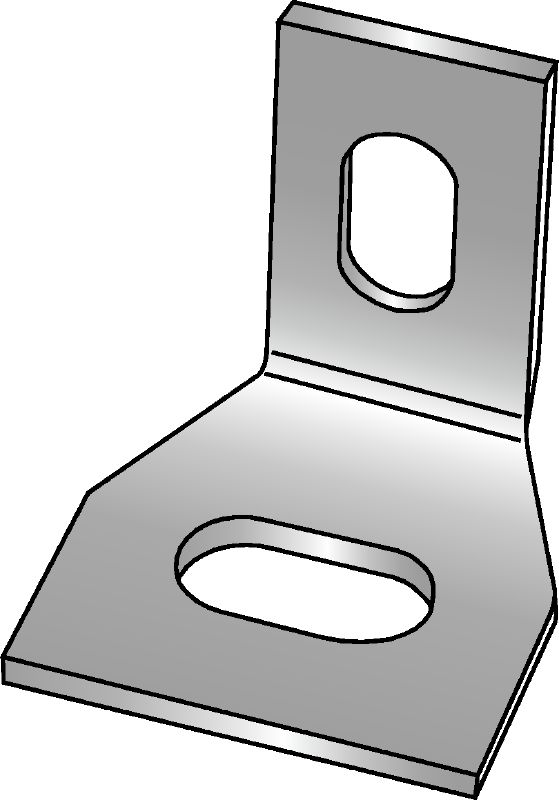

MW-MX angles
Galvanised angles to increase stiffness while supporting pipe rings in riser shafts
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Base material type: Modular Support
Technical Data
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Base material type
Modular Support
Load range
Medium-duty
Features & Applications
Features
- Simplifies the connection of riser pipe supports
- Increased support
Applications

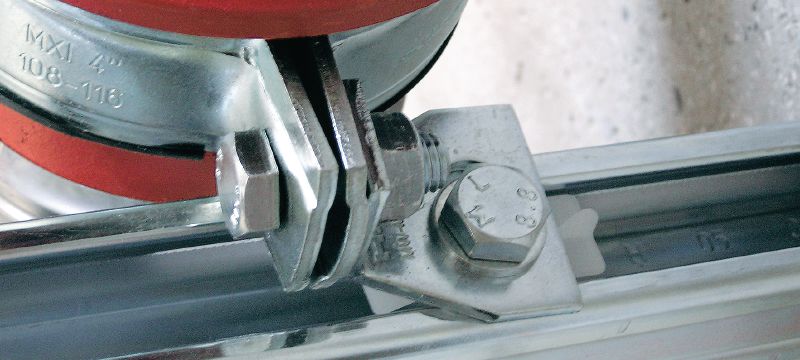

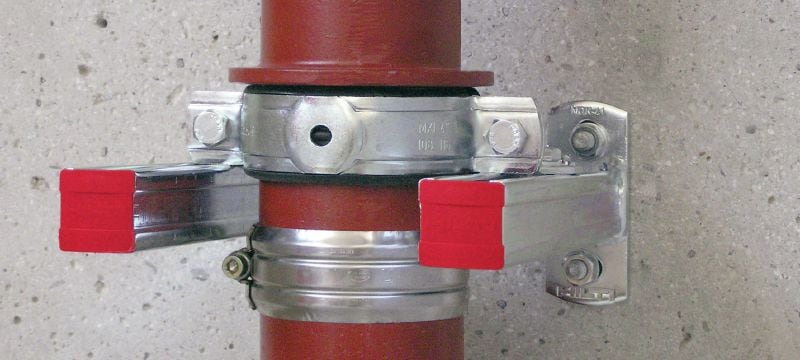

- Fastening MP-MXI pipe rings to brackets to increase support especially in the riser shafts
For approval or certificate information, please see individual items.
