MQA-B pipe clamp saddle
Pipe ring saddle MQA-M16-B #2199454
Ultimate galvanised pipe clamp saddle – fire-tested according to ETA
- Approvals: ETA
- Product class: Premium
- Tightening torque: 40 Nm
premium
Customers also searched for pipe supports, installing pipes, pipe rings, pipe clamps or connectors.
Choose options
Thread connection - M
- M16
Pack size
- 50 pc
Quantity
Packs
Total Piece
50
Discounted net
SR 717.80
SR 14.36 / 1 Piece
Technical Data
Approvals
ETA
Product class
Premium
Tightening torque
40 Nm
Thread connection - M
M16
Material composition
Nut: C4C - DIN EN 10263, Plate: S 235 JRG2 - DIN EN 10025, Plastic: PBT
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
83 g
Documents
Features & Applications
Features

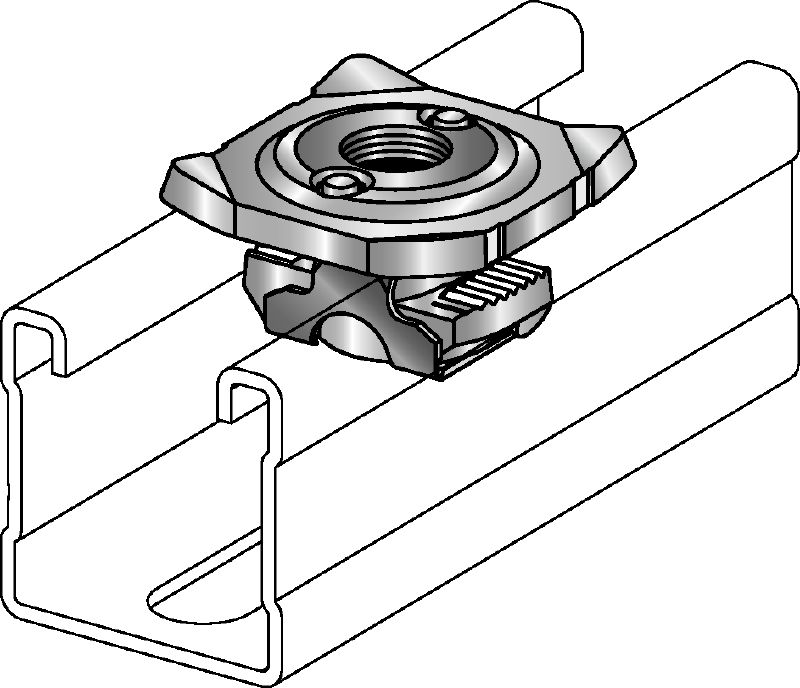

- Quick connection of threaded components to the open side of MQ strut channels
- Easy installation and positioning within MQ strut channel openings
- Single, compact part – for higher productivity and flexibility
- Various thread sizes available
- Moveable
Applications
- Fastening pipes and air ducts
- Fastening cable trays and cable baskets
- Recommended for use in dry, interior environments
- Applications with fire requirements
