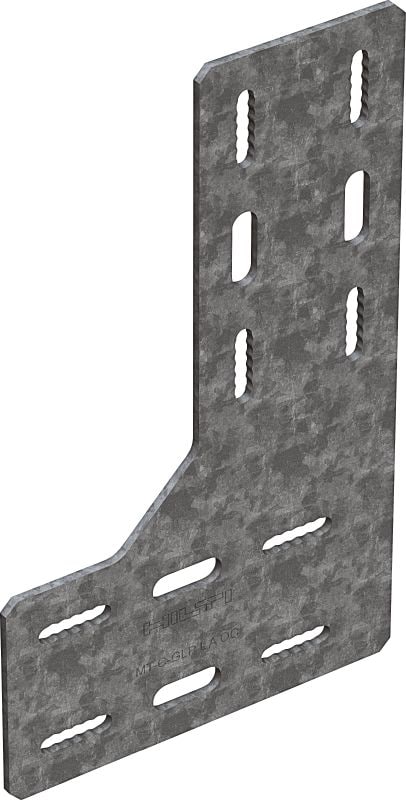

MT-C-GLP L An OC L-shaped flat connector plate

Gusset plate MT-C-GLP L A OC #2430769

L-shaped flat profile connector for assembling and bracing modular supports in moderately corrosive environments

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 507.04

SR 63.38

1 Piece

Technical Data

Material composition

Q355 or better steel

Surface finish

Outdoor Coated - HDG

Material thickness

4 mm

Weight

1.98 kg

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Faster to instal – one-step assembly using Hilti MT Thread Forming Bolts (MT-TFB) and compatible with the Hilti Adaptive Torque system for hassle-free installations (compatible tool and SI-AT module required)
Versatile and secure connections – use oblong holes to adjust height in 5mm (1/4") increments and cloud holes with thread forming bolts (MT-TFB) for secure connections between MT heavy boxed profiles
Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures
Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
Extensive software support – PROFIS Modular Support Engineering, Revit® families and plug-ins for Smart 3D® are all available to streamline design and ordering

Assembling and bracing modular support structures consisting of MT-80, MT-90 or MT-100 box profiles
Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
Process piping for energy and industry applications

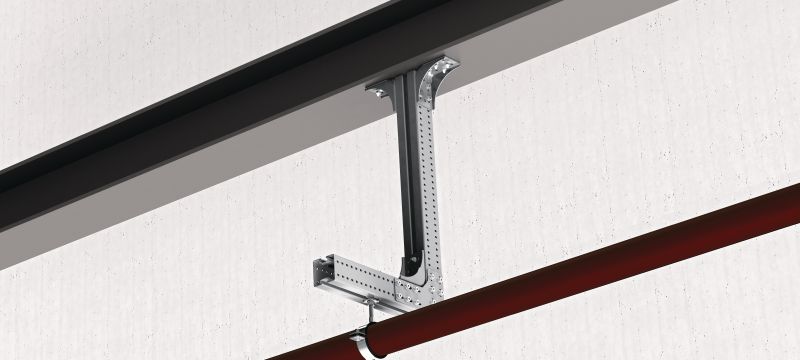

Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
Integrated modules and skids to support industrial pipes and other heavy-duty building services
