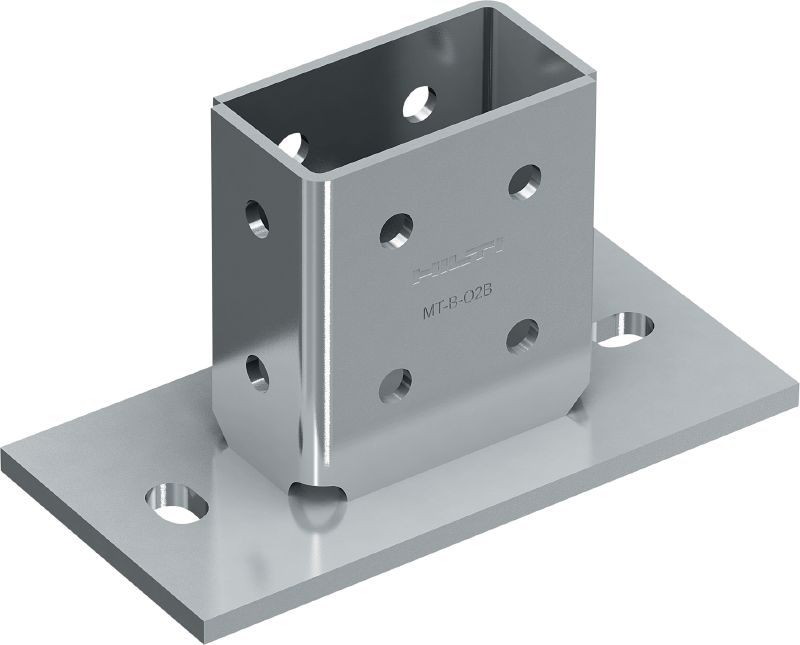

MT-B-O2B 3D-load baseplate

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003357_v1 (218287)
04_IS_MT-B-O2B_0001 (218665)

Base connector for anchoring strut channel structures under 3D loading to concrete or steel

  • Material composition: Q235 or better steel
  • Surface finish: Indoor Coated - Pre-galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

No products available

Please Contact us to find a solution.

Technical Data

Details
Technical illustrations
Material composition
Q235 or better steel
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – two slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures to a base material when resistance to 3D stresses is required
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
