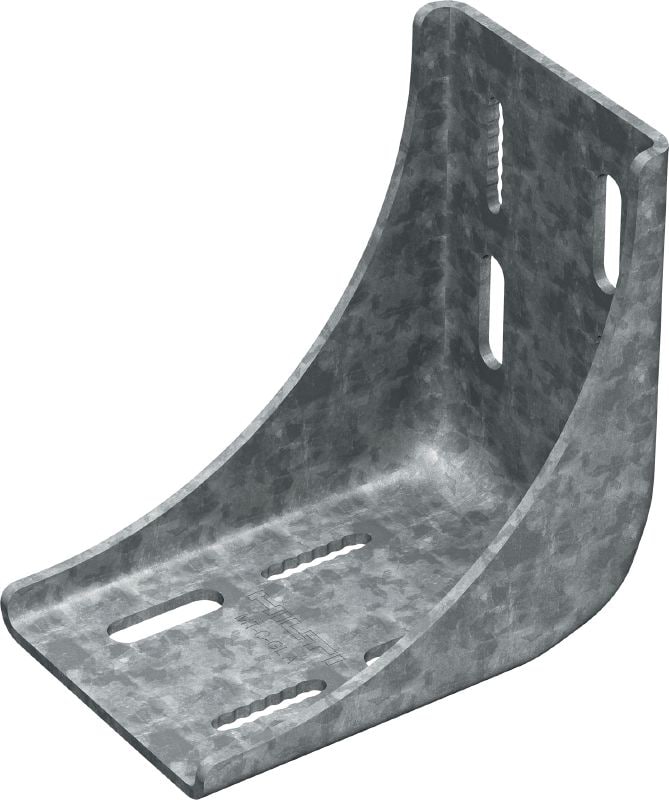

MT-C-GL A OC Angle bracket

Angle connector MT-C-GL A OC adjustable #2272069

Adjustable, braced angle bracket for heavy-duty MT girder structures subject to 3D loading, for outdoor use with low pollution

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 1,170.00

SR 117.00 / 1 Piece

Technical Data

Material composition

Q355 or better steel

Surface finish

Hot-dip galvanised - for outdoor use

Material thickness

4 mm

Weight

1.15 kg

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
Adjustable – cloud holes enable height adjustment in 5mm increments
Adaptable – unlike welding, angle brackets allow you to modify strut channel framing during installation and for future MEP requirements
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Right-angle connections between MT-80, MT-90 and MT-100 girders
Assembling metal framing for MEP support structures when resistance to 3D stresses is required
Suitable for use in moderately corrosive environments
