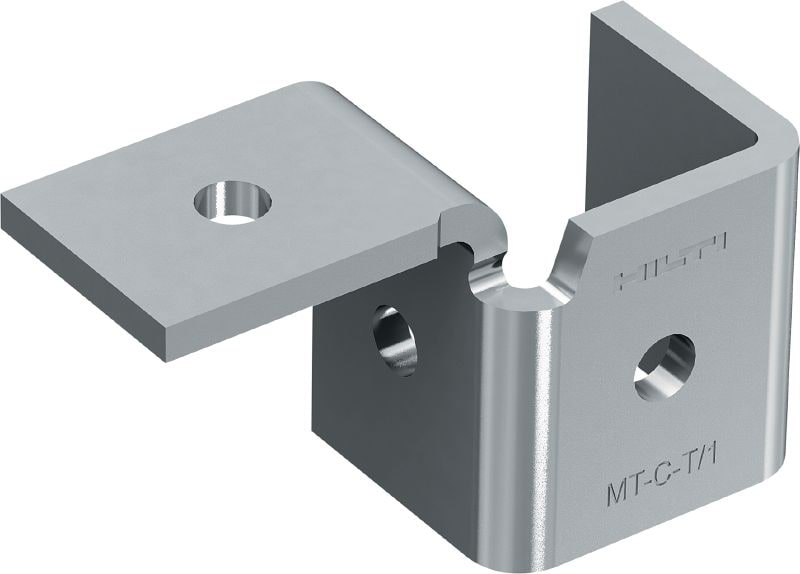

MT-C-T/1 Transverse connector

LCG003295_v1 (218245)

Wing fitting for assembling strut channel structures

  • Material composition: Q355 or better steel
  • Surface finish: Indoor Coated - Pre-galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Pack size
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 741.00
SR 37.05
/
1 Piece

Technical Data

Material composition
Q355 or better steel
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Flexible – allows a horizontal strut element to be attached to any face of a vertical strut member
  • Adaptable – unlike welding, angle brackets allow you to modify strut channel framing during installation and for future MEP requirements
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Right-angle connections between any MT strut channels, on any side
  • Assembling 2D metal framing for MEP support structures
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
