MT-50D U C-Channel profile

Channel MT-50D U #2362807

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003853_v1 (2942563)
LCG003854_v1 (2942504)

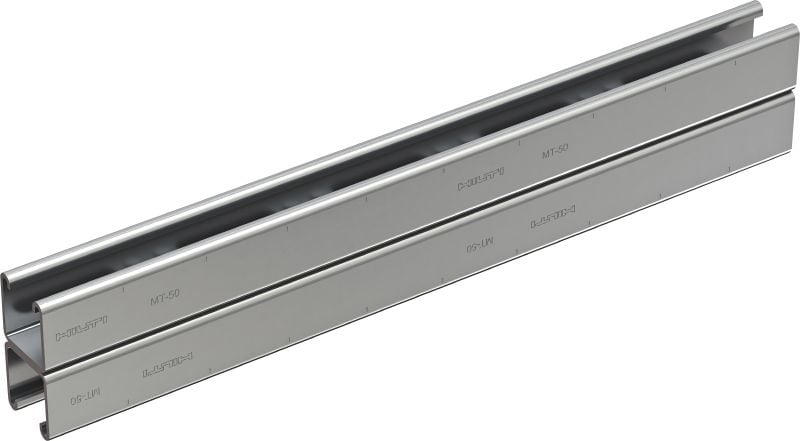

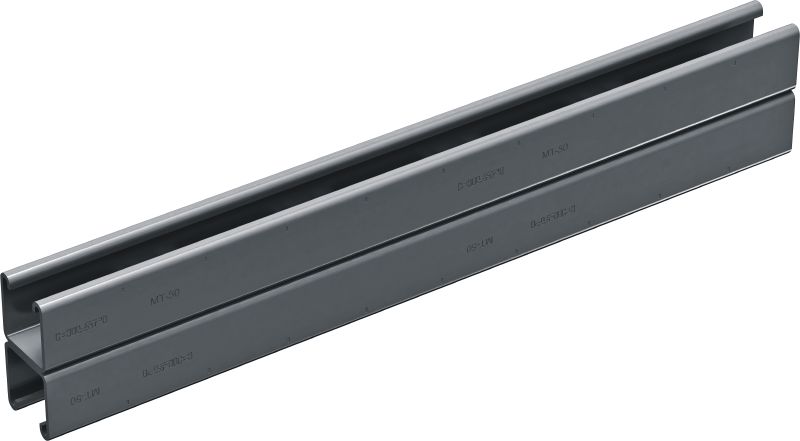

Medium-duty unslotted double C-Channel profile for use with MT-FL/MT-TL components in indoor environments

  • Material composition: S280GD
  • Surface finish: Galvanized
  • Material thickness: 2.75 mm

Choose options

Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material composition
S280GD
Surface finish
Galvanized
Material thickness
2.75 mm
Weight
5.88 kg
Environmental conditions
Indoor

Documents

Approval document
Certificate
pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Airtight strut channels – ideal for building modular frames in data centres, especially hot/cold aisle containment
  • Simpler to instal – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Floor-mounted MEP support structures in data centres, such as hot/cold aisle containment
  • Suitable for use in dry, indoor environments
