MT-40D C-Channel profile

I.-Channel MT-40D S #2268517

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003281_v1 (217081)
07_IS_MT-40D_0001 (218616)

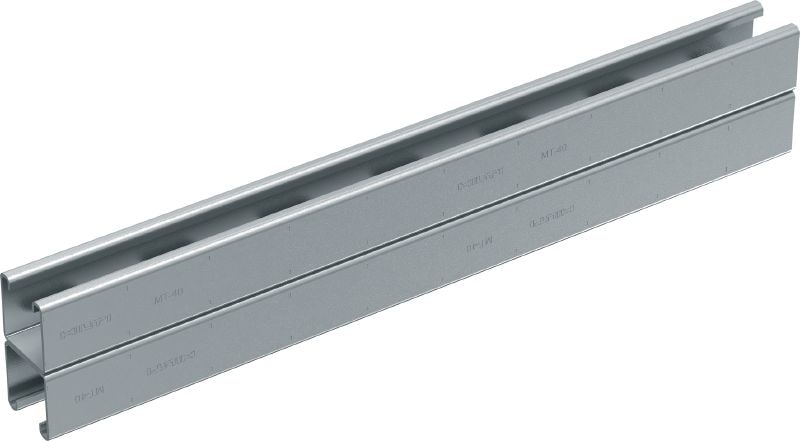

medium-duty double C-Channel profile for use with MT-FL/MT-TL components in indoor environments

  • Material composition: S280 or better steel
  • Surface finish: Indoor Coated - Pre-galvanised
  • Material thickness: 2 mm

Choose options

Pack size
  • 3 m
 Product options
Quantity
Packs
Total Pieces
3
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Material composition
S280 or better steel
Surface finish
Indoor Coated - Pre-galvanised
Material thickness
2 mm
Weight
12.9 kg
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Approval document
Certificate
Documentation
Sustainability Documentation
pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to instal – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Floor-mounted MEP support structures, such as goal post-type strut framing
  • Ceiling-mounted MEP support structures, such as suspended strut trapeze frames
  • Modular 3D framing to support pipes, ducts and cable trays
  • Suitable for use in dry, indoor environments
