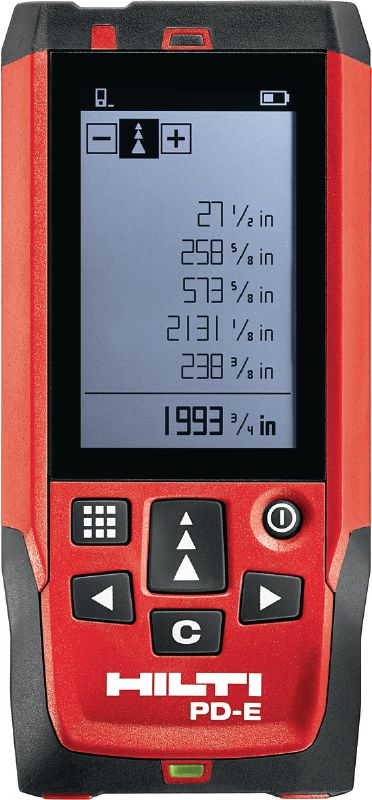

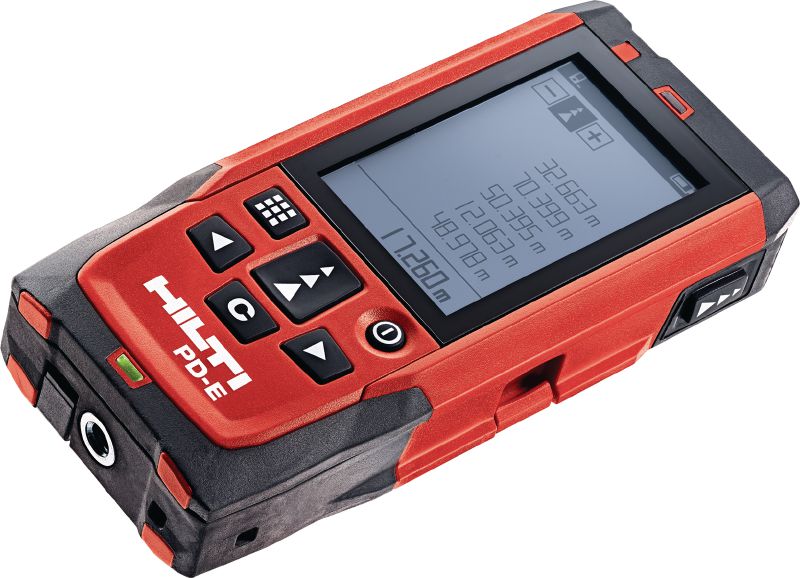

PD-E Laser meter
Outdoor laser meter with integrated viewfinder for measurements up to 200 m / 650 ft
- Measuring range: 0 m - 200 m
- Measurement accuracy: 1.0 mm
- Measuring functions: Single and continuous measurement, Outdoor mode, Digital level
Customers also searched for distance measuring tool, exterior measuring tool, measuring lengths of pipes, measuring surface areas or construction measuring tools.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From SR 3,456.00
Technical Data
Measuring range
0 m - 200 m
Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Outdoor mode, Digital level
Calculation functions

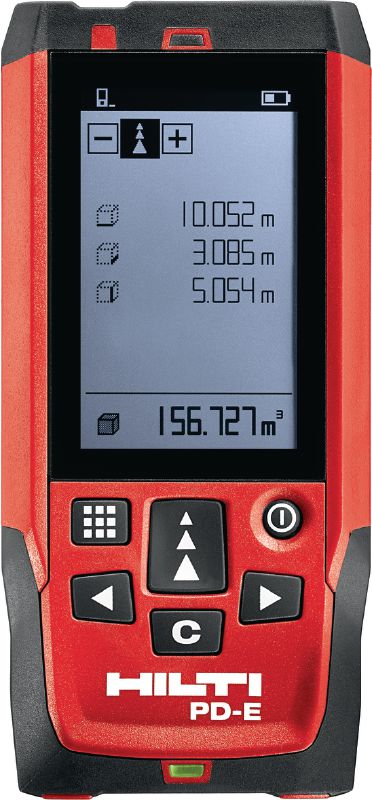

Addition, Subtraction, Area, Volume, Painters area, Setting out, Min/max, Timer, Offset, Memory (30x), Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x)
Data memory
Last 30 measurements, Calculation results with graphics
Battery type
2 x 1.5 V (AAA)
Laser class
<1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 65 (EN 60529)
Interface
none
Documents
Features & Applications
Features
- High-quality laser module enables long-range measurements even under the toughest outdoor conditions
- Purpose-built outdoor display can be read even in very bright sunlight

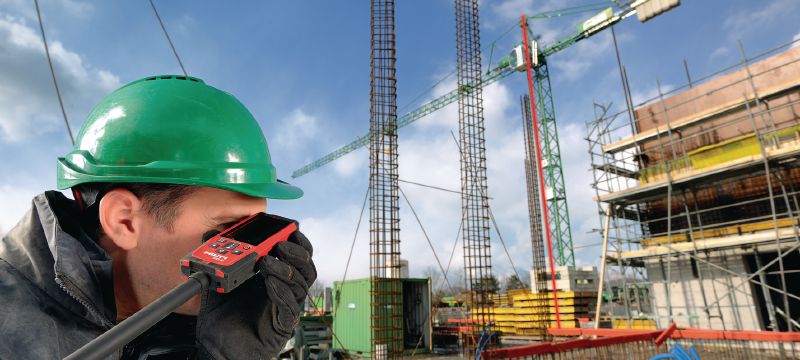

- Built-in optical viewfinder for outdoor measurements
- Rugged and durable to resist hard jobsite environments
- Built-in 360 degree tilt sensor and smart estimation functions support measurements in challenging situations
Applications

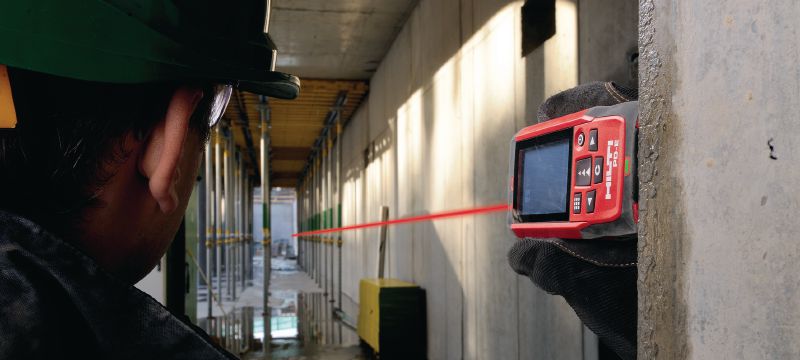

- Measuring quickly and safely in places where access is difficult
- Measuring surface areas for quotations in renovation work
- Determining the length or height of objects that cannot be directly accessed (remote measurement)

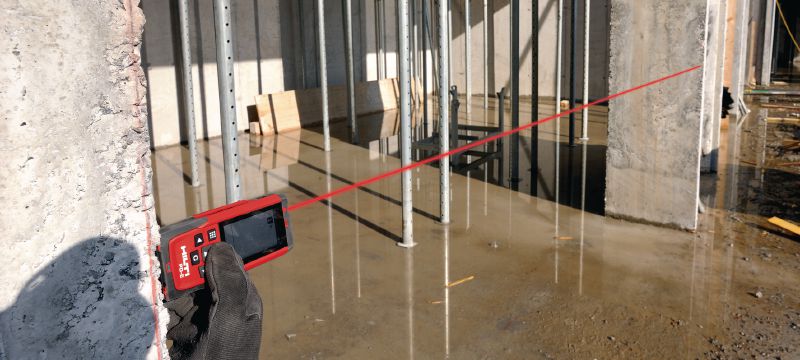

- Measuring long distances using outdoor mode
- Easy measurement of roof lengths using the trapezoid function
