CP 648-E firestop endless wrap strips

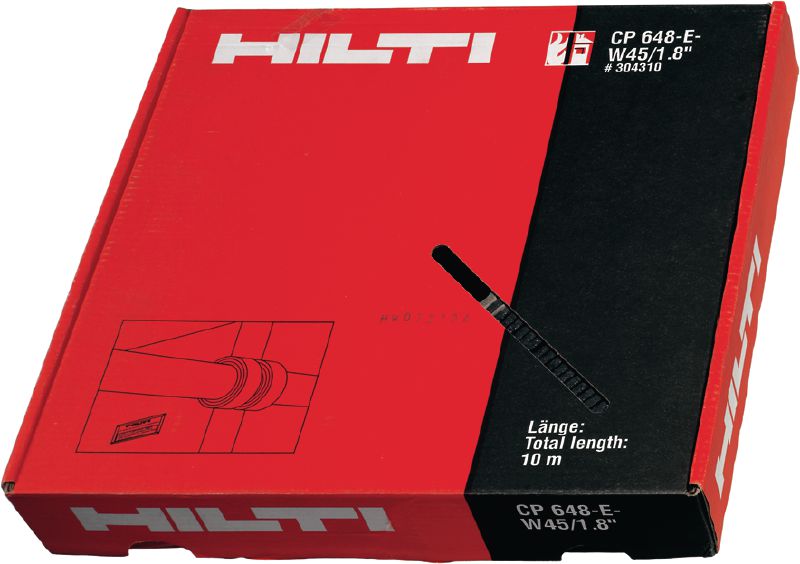

Firestop wrap strip CP 648-E-W45/1.8" #304310

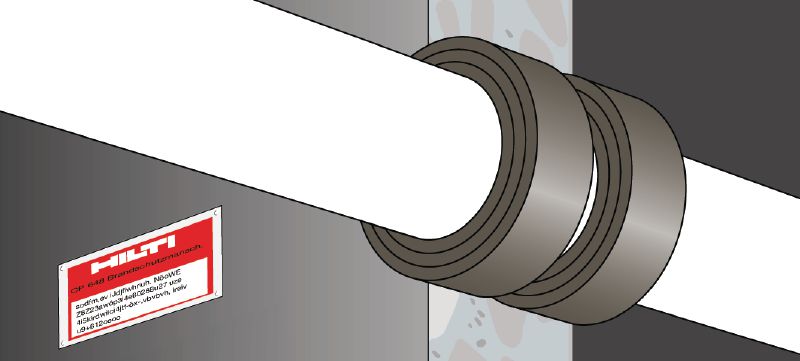

Intumescent, flexible firestop wrap strip to help create a fire and smoke barrier around combustible pipe penetrations
- Base materials: Concrete, Drywall, Masonry
- LEED VOC: 7.6 g/l
- Expansion ratio (unrestricted, up to): 1:19
ultimate
Customers also searched for fire wrap, pipe wrap, intuemscant pipe wrap, fire rated piping openings or fire seal.
Choose options
Width
- 45 mm
Length
- 10000 mm
Pack size
- 1 pc
Quantity
Packs
Total Piece
1
Discounted net
SR 2,264.00
SR 2,264.00 / 1 Piece
Technical Data
Base materials
Concrete, Drywall, Masonry
LEED VOC
7.6 g/l
Expansion ratio (unrestricted, up to)
1:19
Expansion temperature (approx.)
210 °C
Product class
Ultimate
Application temperature range
-5 - 50 °C
Documents
Features & Applications
Features

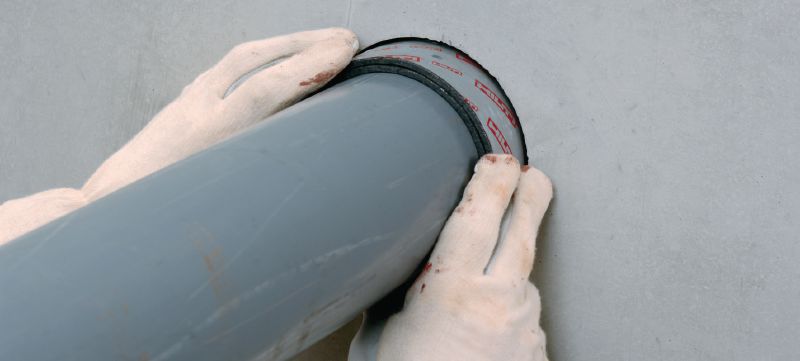

- Quicker and easier installation – no hooks, anchors or drilling

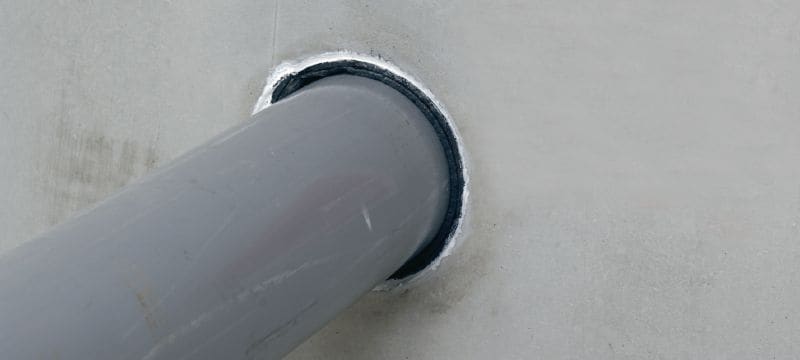

- Installed inside the base material – ideal when space and access are limited
- Endless solution – one product for most penetrant sizes
Applications
- An intumescent, flexible firestop wrap strip for combustible pipe penetrations
- Concrete, masonry floor and gypsum wall assemblies
