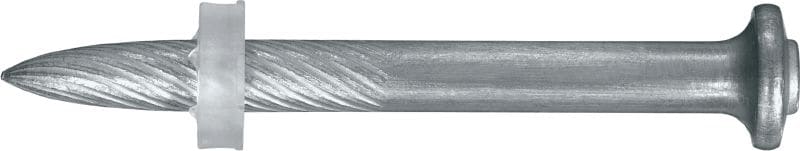

X-U P8 steel/masonry nails
High-performance single nail for fastening to concrete and steel using powder-actuated tools
- Base materials: Concrete (soft), Concrete (tough), Steel
- Minimum thickness of base material (concrete): 80 mm
- Minimum thickness of base material (steel): 6 mm
premium
Customers also searched for concrete nails, nails for direct fasening, drywall track, nails or steel nail.
Technical Data
Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Washer size
8 mm
Point type
Ballistic point, knurled
Approvals
ABS, COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 2
Product class
Premium
Documents
Features & Applications
Features
- Galvanised nails for fastenings on concrete or steel
- Knurled point for higher application limits on steel and suitability for use on hard concrete
- High application limits, high ultimate tensile loads
- One nail for almost any application
- Uniquely shaped ballistic point for optimum driving characteristics
Applications

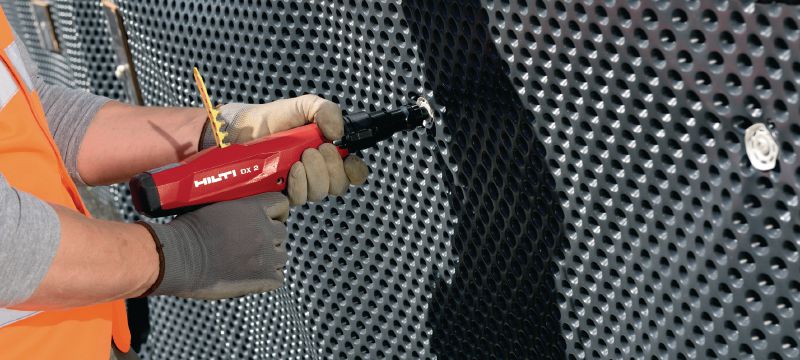

- Fastening to concrete and steel
- Fastening drywall track to concrete
- Fastening wall ties
- Fastening wood to concrete
- Setting up formwork and safety barriers
For approval or certificate information, please see individual items.
Related Products

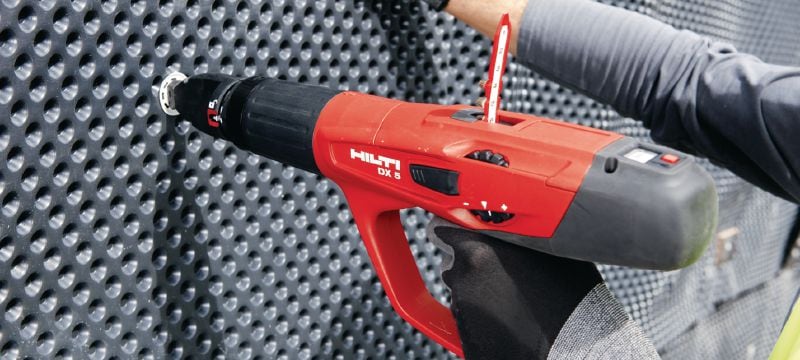

Semi-automatic powder-actuated tool for fastening single nails in medium-duty applications on both concrete and steel
