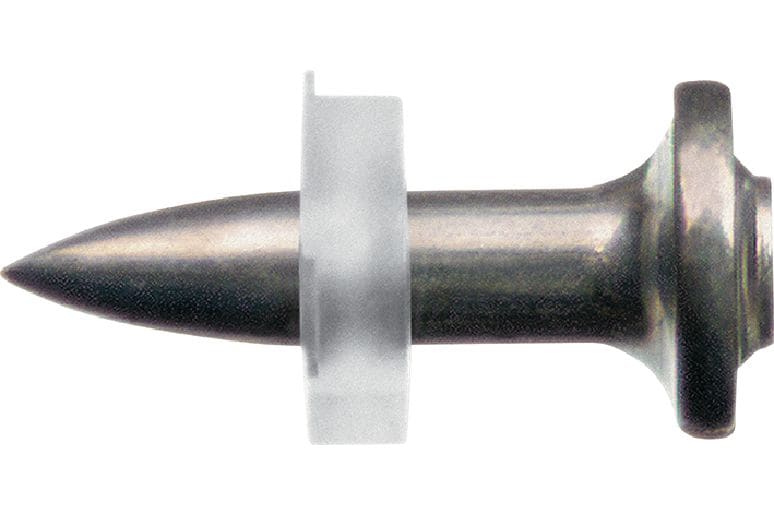

X-R P8 Stainless steel nails

High-performance single nail for use with powder-actuated tools on steel in corrosive environments

  • Base materials: Steel
  • Minimum thickness of base material (steel): 5 mm
  • Corrosion protection: Stainless steel A4(316) or equivalent
ultimate

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
5 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Material
Stainless steel A4 (or equivalent)
Fastener shank diameter
3.7 mm
Washer size
8 mm
Approvals
ABS, DIBt, ICC-ES, LR
For use with (tools)
DX 450, DX 5, DX 6
Product class
Ultimate

Documents

Features & Applications

Features

  • Stainless steel nail
  • Corrosion-resistant
  • Designed for fastening on steel
  • Engineered for high-quality, reliable fastening
  • Suitable for universal use

Applications

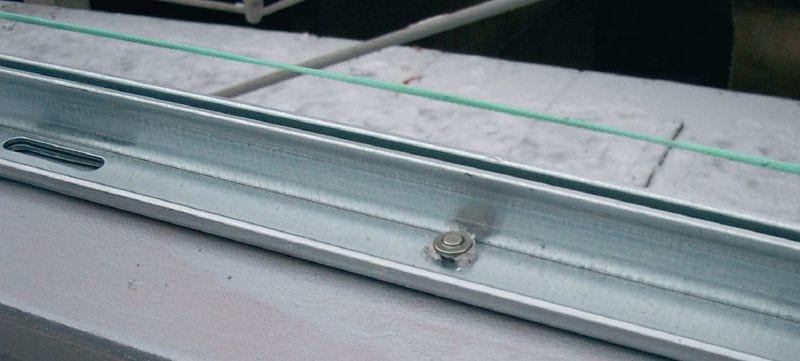

  • Fastening in outdoor applications with direct or indirect exposure to the weather
  • Approved for fastening profiles in façade construction

For approval or certificate information, please see individual items.
