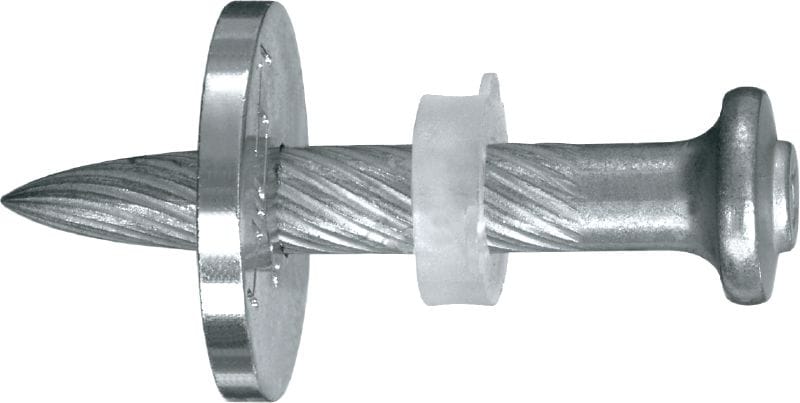

X-U P8 S steel/masonry nails with washer

Universal nail X-U 27 S12 #237360

High-performance single nail with steel washer for fastening to concrete and steel using powder-actuated tools

  • Base materials: Concrete, Steel
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
premium

Customers also searched for Single nail for concreteConcrete nail with washerConcrete fastener with washerPowder-actuated fastener or Single fastener with washer.

Choose options

Fastener shank length
  • 27 mm
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Piece
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 120.00

SR 1.20 / 1 Piece

Technical Data

Base materials
Concrete, Steel
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Washer size
12 mm
Point type
Ballistic point, knurled
Approvals
ABS, COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 460 F8S12, DX 462 F8S12, DX 5 F8S12
Product class
Premium

Documents

Features & Applications

Features

  • Galvanised nails for fastenings on concrete or steel
  • Higher application limits, higher ultimate tensile loads
  • With preassembled washer providing increased pull-over values
  • Knurled point for better performance on high-strength steel and hard concrete

Applications

  • Fastening on steel support frames S 355 (St 52) 6-12 mm
  • Fastening steel sheets on steel support frames or substructures S 355 (St 52) 6-8 mm
  • Fastening wood on S 355 (St 52) steel substructures with a thickness of 6 mm
  • Fastening timber or steel brackets to steel or concrete where high pull-over strength is required
  • Fastening wood to concrete (even high-strength concrete) or steel
