X-U MX Universal nails
Collated nails for fastening to concrete and steel using powder-actuated nailers
- Base materials: Concrete (soft), Concrete (tough), Steel
- Minimum thickness of base material (concrete): 80 mm
- Minimum thickness of base material (steel): 6 mm
premium
Customers also searched for concrete nails, collated nails, drywall track, nails or steel nail.
Choose options
Fastener shank length
- 16 mm
- 22 mm
- 27 mm
- 32 mm
- 37 mm
- 42 mm
- 52 mm
- 57 mm
- 72 mm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From SR 56.00
Technical Data
Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Point type
Ballistic point, knurled
Approvals
COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 5, DX 6
Product class
Premium
Documents
Features & Applications
Features
- Galvanised nails for fastenings on concrete or steel
- Higher application limits, higher ultimate tensile loads
- Available in lengths up to 72 mm
- Knurled point for increased performance on high-strength steel and hard concrete

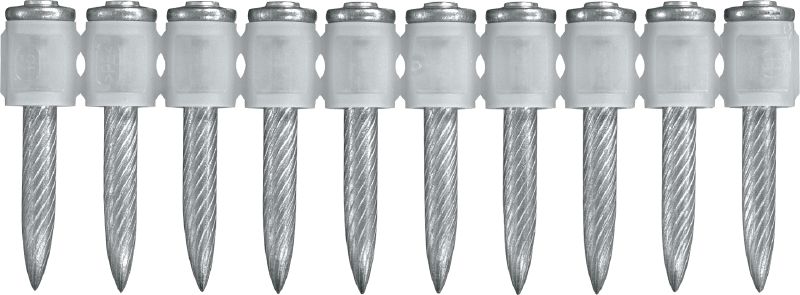

- Strips of 10 collated nails – for extremely high productivity and easier fastener loading
Applications

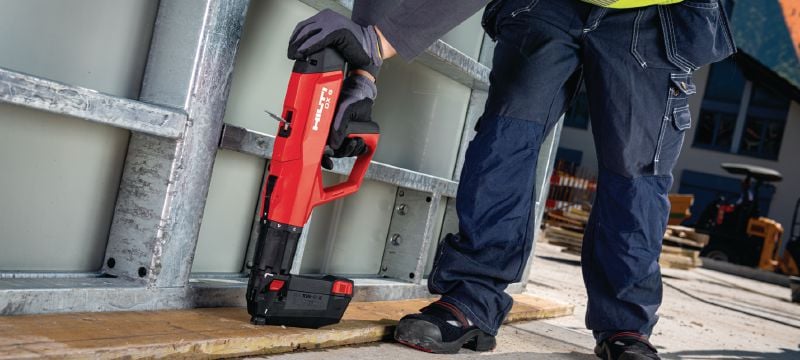

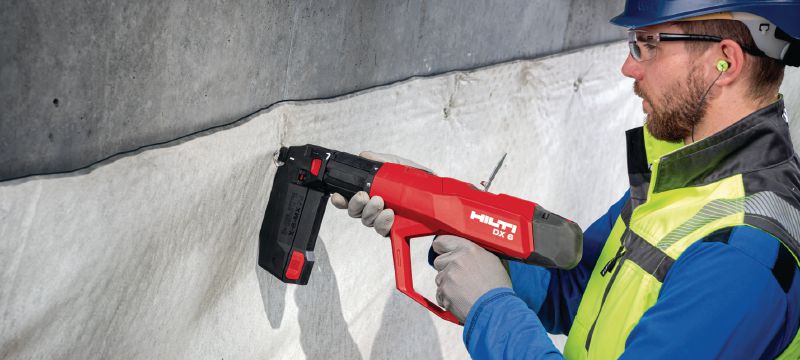

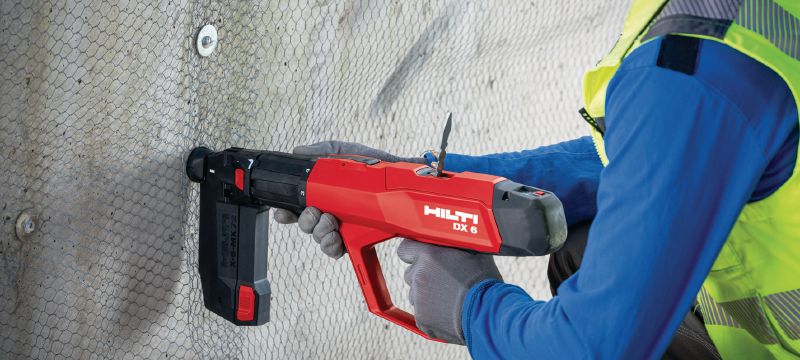

- Fastening to concrete or steel

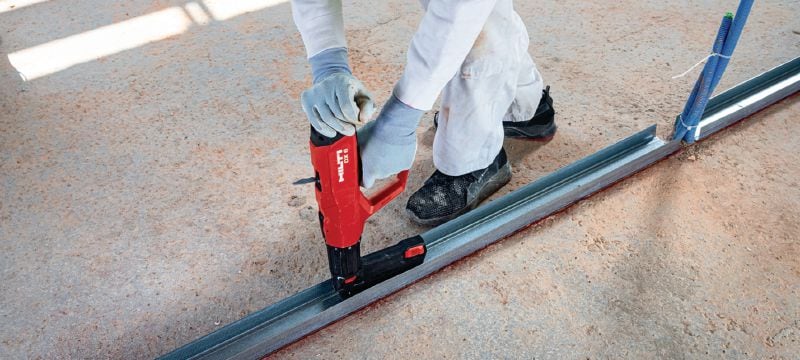

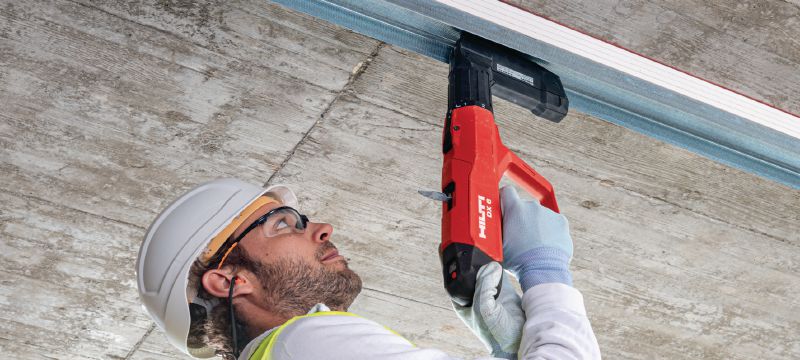

- Fastening drywall track to concrete
- Fastening wall ties

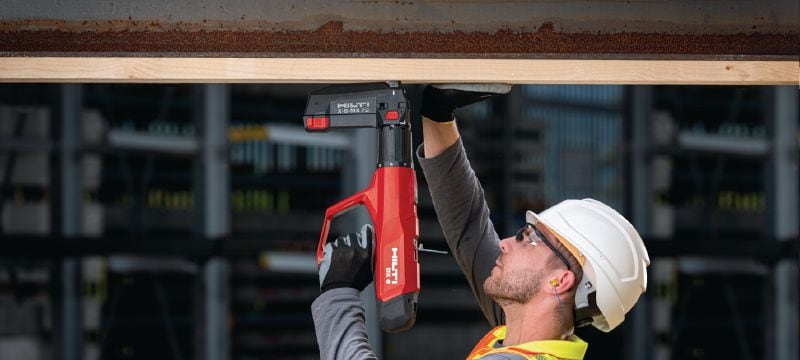

- Fastening wood to concrete

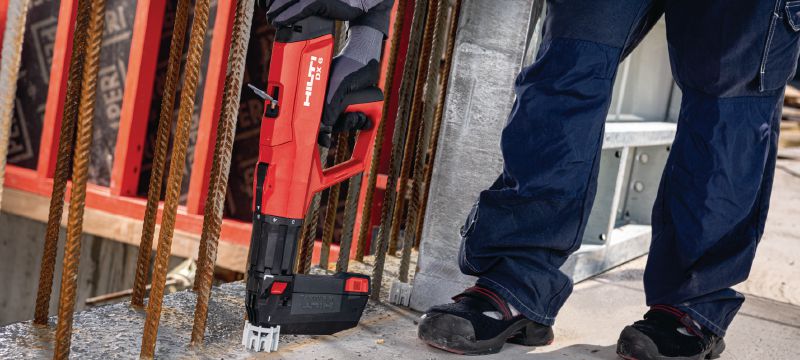

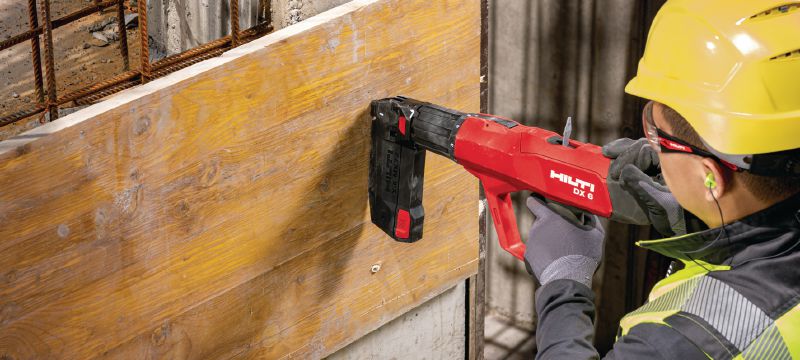

- Setting up formwork and safety barriers
For approval or certificate information, please see individual items.
