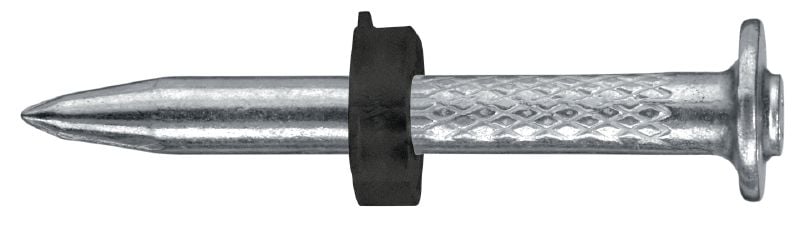

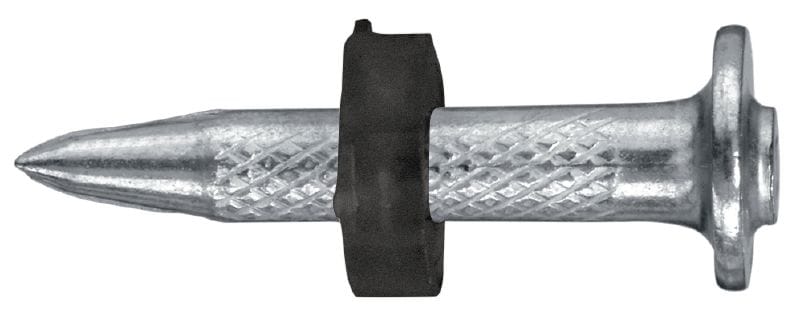

X-C P8 Masonry nails

Single nail for fastening to concrete using powder-actuated tools

  • Base materials: Concrete (soft), Masonry (solid limestone brick)
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
standard

Customers also searched for Single nail for concreteConcrete nailConcrete fastenerPowder-actuated fastener or Single fastener.

Technical Data

Base materials
Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
3.5 mm
Point type
Cut point
Approvals
ICC-ES
For use with (tools)
DX 2, DX 351, DX 5, DX 6
Product class
Standard

Documents

Features & Applications

Features

  • Fastener for attaching a variety of thin materials to masonry block and concrete
  • Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
  • Best suited for fastening to concrete with a hardness of up to 6,000 psi
  • Best suited for fastening to concrete with a hardness of up to 6,000 psi

Applications

  • Fastening drywall track to concrete
  • Attaching wire mesh and thin sheet metal to concrete, sand-lime block and solid brick
  • Fastening brick ties to masonry or concrete
  • Fastening HVAC duct strapping or suspended ceilings on normal-strength concrete
  • Securing electrical junction boxes, conduits and cables to masonry block or concrete

For approval or certificate information, please see individual items.
