new

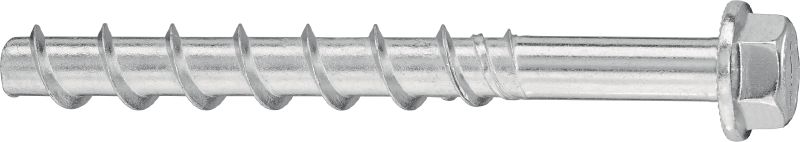

HUS-V 8/10 Screw anchor
Economical screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, hex head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Base materials: Concrete (aerated), Concrete (cracked), Concrete (uncracked), Masonry (solid)
Customers also searched for screw anchors, reusable anchors, adjustable anchor, hand rail anchor or anchoring.
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Base materials
Concrete (aerated), Concrete (cracked), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Yes
Cleaning procedures
Manual cleaning
PROFIS software
No
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)
Tested/approved for diamond drilling
No
Documents
Features & Applications
Features
- Higher productivity – less drilling and fewer operations than with conventional anchors
- Hexagonal head with integrated washer for neat appearance when fastening through in-place parts
- Technical data for reusability in fresh concrete for temporary fastening available
- Technical data for reusability in fresh concrete (10/15/20 N mm2)
- Technical data for cracked and uncracked concrete
Applications

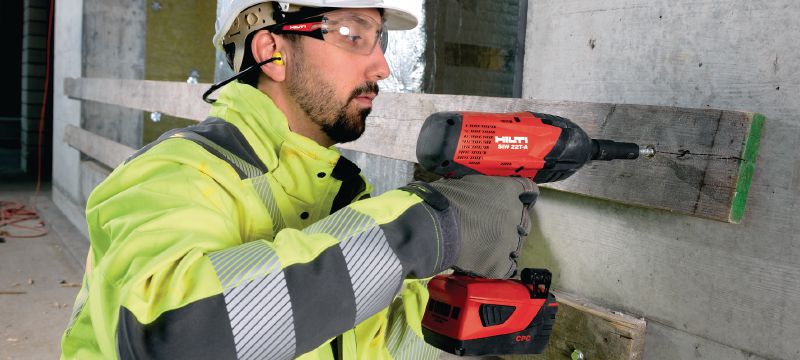

- Railings and handrails

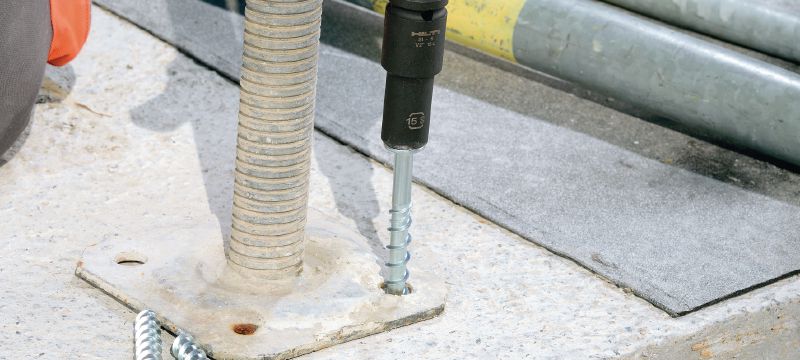

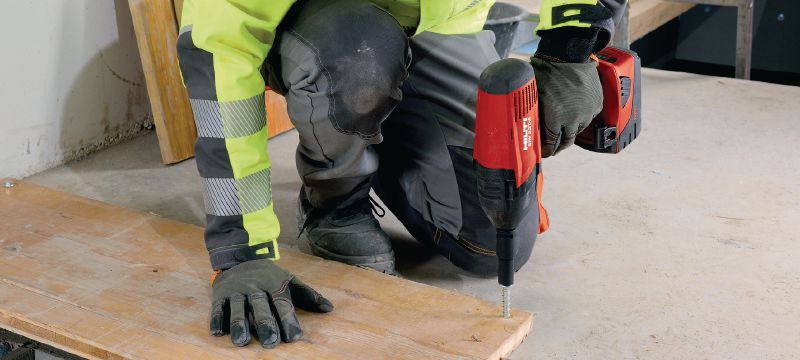

- Formwork and bracing
- Temporary applications
- Seating installation
For approval or certificate information, please see individual items.
