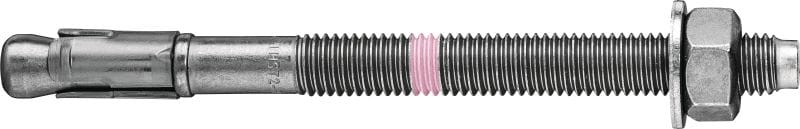

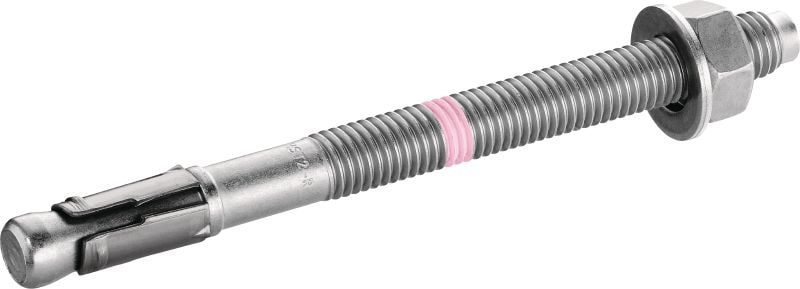

HST2-R V3 wedge anchor

High-performance wedge anchor (M8-M16) for static and seismic loads in cracked concrete (stainless steel)

  • Material, corrosion: Stainless steel
  • Head configuration: Externally threaded
  • Installation tools: TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
Anchor length
  • 55 mm
  • 70 mm
  • 80 mm
  • 85 mm
  • 90 mm
  • 100 mm
  • 105 mm
  • 110 mm
  • 115 mm
  • 120 mm
  • 125 mm
  • 130 mm
  • 140 mm
  • 145 mm
  • 150 mm
  • 165 mm
  • 175 mm
  • 185 mm
Pack size
  • 16 pc
  • 25 pc
  • 40 pc
  • 50 pc
  • 80 pc
  • 100 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SR 384.15

Technical Data

Material, corrosion
Stainless steel
Head configuration
Externally threaded
Installation tools
TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
PROFIS software
Yes

Documents

Features & Applications

Features

  • High-performance – wedge and sleeve design for cracked concrete conditions, allowing you to optimise anchor length and embedment
  • Faster and easier installation – instal our full range of anchors quickly with our Adaptive torque compatible tools and without the need for borehole cleaning
  • Variable embedment depths – instal with shallow anchor embedment for productivity or deep anchor embedment for increased performance with flexible edge and spacing distances
  • Efficient designs – pair with PROFIS Engineering software to simplify the design of steel-concrete connections
  • Corrosion resistant – stainless steel anchors offer greater resistance to corrosion in outdoor environments (C3-C5)

Applications

  • Fastening baseplates, handrails and façade systems to concrete
  • Fastening in cracked and uncracked concrete required for building code compliance
  • Qualified to resist seismic actions and loads (M10-M16)
  • Suitable for indoor and outdoor use

For approval or certificate information, please see individual items.
