HST2 V3 wedge anchor

L133883 (3690736)

L133878 (3690714)

L153182_cropped (4099713)

L153172_cropped (4099707)

L146421_cropped (2587822)

L133883 (3690736)

L133878 (3690714)

L153182_cropped (4099713)

L153172_cropped (4099707)

L146421_cropped (2587822)

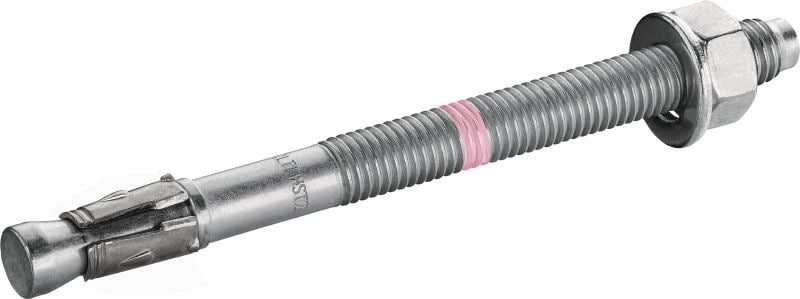

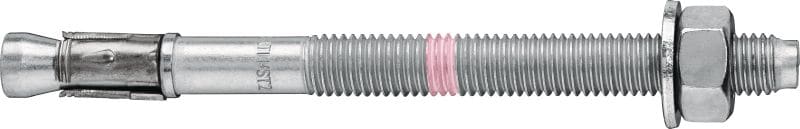

High-performance wedge anchor (M8-M16) for static and seismic loads in cracked concrete (carbon steel)

Material, corrosion: Carbon steel, zinc-plated
Head configuration: Externally threaded
Installation tools: TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Externally threaded

Installation tools

TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench

PROFIS software

Yes

Documents

Features & Applications

Features

High-performance – enhanced wedge and sleeve design for improved pull-out loads in cracked concrete conditions, allowing you to optimise anchor length and embedment
Faster and easier installation – instal our full range of anchors quickly with our Adaptive torque compatible tools and without the need for borehole cleaning
Variable embedment depths – instal with shallow anchor embedment for productivity or deep anchor embedment for increased performance with flexible edge and spacing distances
Efficient designs – pair with PROFIS Engineering software to simplify the design of steel-concrete connections

Applications

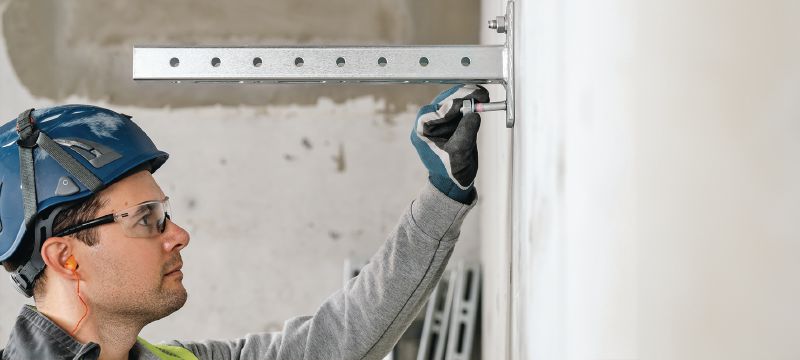

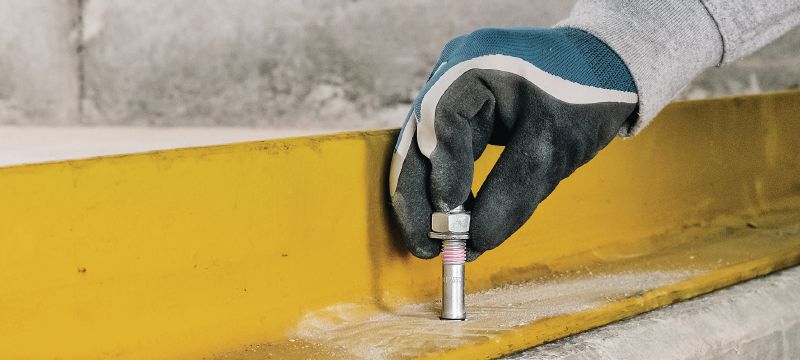

Fastening baseplates, handrails, façade systems and mechanical, electrical or plumbing supports to concrete
Fastening in cracked and uncracked concrete required for building code compliance
Qualified to resist seismic actions and loads (M10-M16)
Suitable for dry indoor use

For approval or certificate information, please see individual items.
